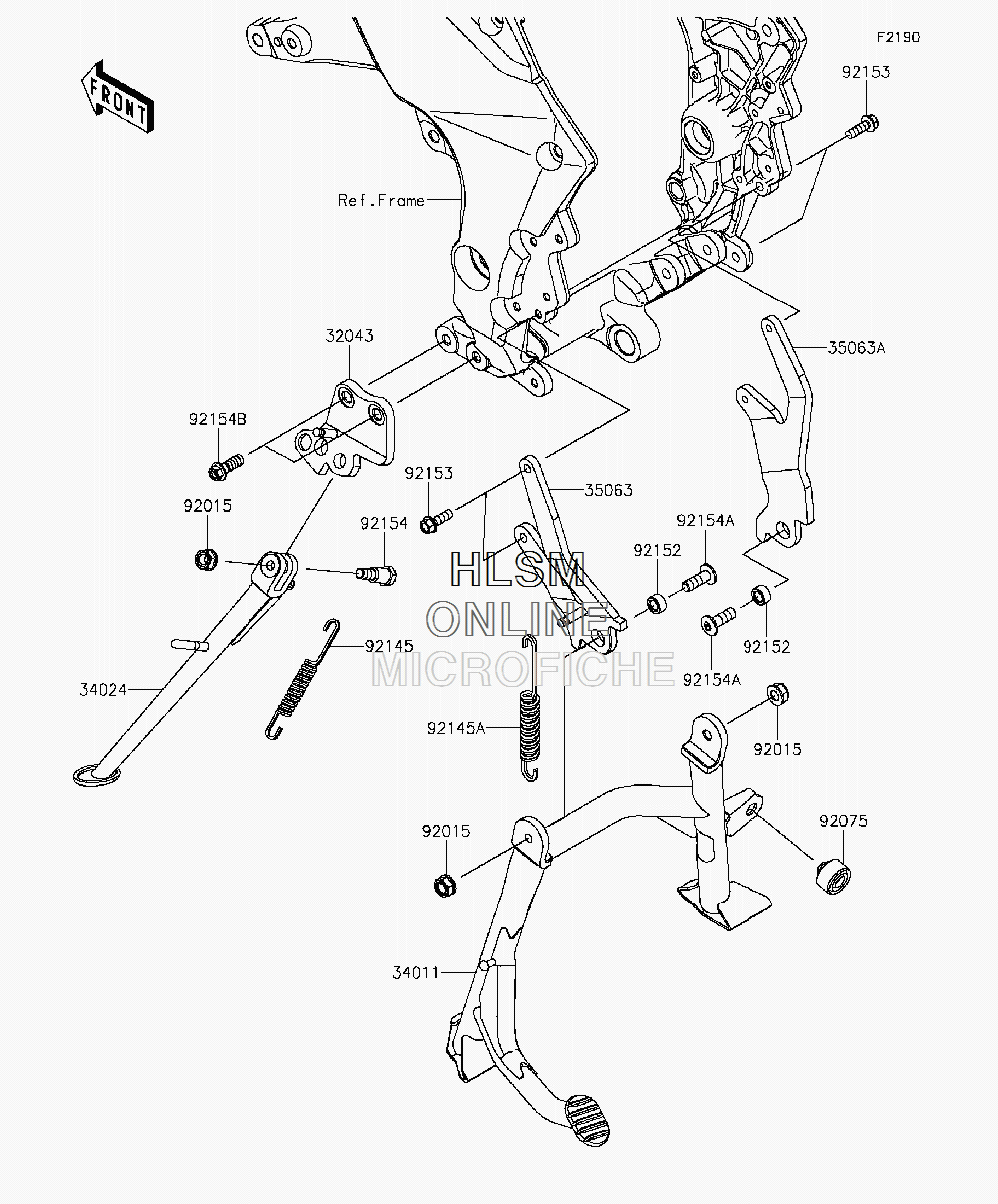

STAND(S) для Kawasaki VERSYS 1000 LT (KLZ1000BGFAS) - 2016 года выпуска

  • №
    Артикул
    Название
  • 32043
    32043-0571 BRACKET-STAND
    BRACKET-STAND
  • 34011
    34011-0030 STAND-CENTER
    STAND-CENTER
  • 34024
    34024-0113 STAND-SIDE
    STAND-SIDE
  • 35063
    35063-0980 STAY, CENTER STAND, LEFT HAND
    STAY, CENTER STAND, LEFT HAND
  • 35063A
    35063-0981 STAY, CENTER STAND, RIGHT HAND
    STAY, CENTER STAND, RIGHT HAND
  • 92015
    92015-1717 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92075
    92075-015 DAMPER
    DAMPER
  • 92145
    92145-0562 SPRING, SIDE STAND
    SPRING, SIDE STAND
  • 92145A
    92145-1550 SPRING, CENTER STAND
    SPRING, CENTER STAND
  • 92152
    92152-1906 COLLAR, 10X17X9
    COLLAR, 10X17X9
  • 92153
    92153-1768 BOLT, FLANGED, 8X25
    BOLT, FLANGED, 8X25
  • 92154
    92154-0971 BOLT, 10X39
    BOLT, 10X39
  • 92154A
    92154-1665 BOLT, SOCKET, 10X30
    BOLT, SOCKET, 10X30
  • 92154B
    92154-1705 BOLT, FLANGED, 10X28
    BOLT, FLANGED, 10X28
