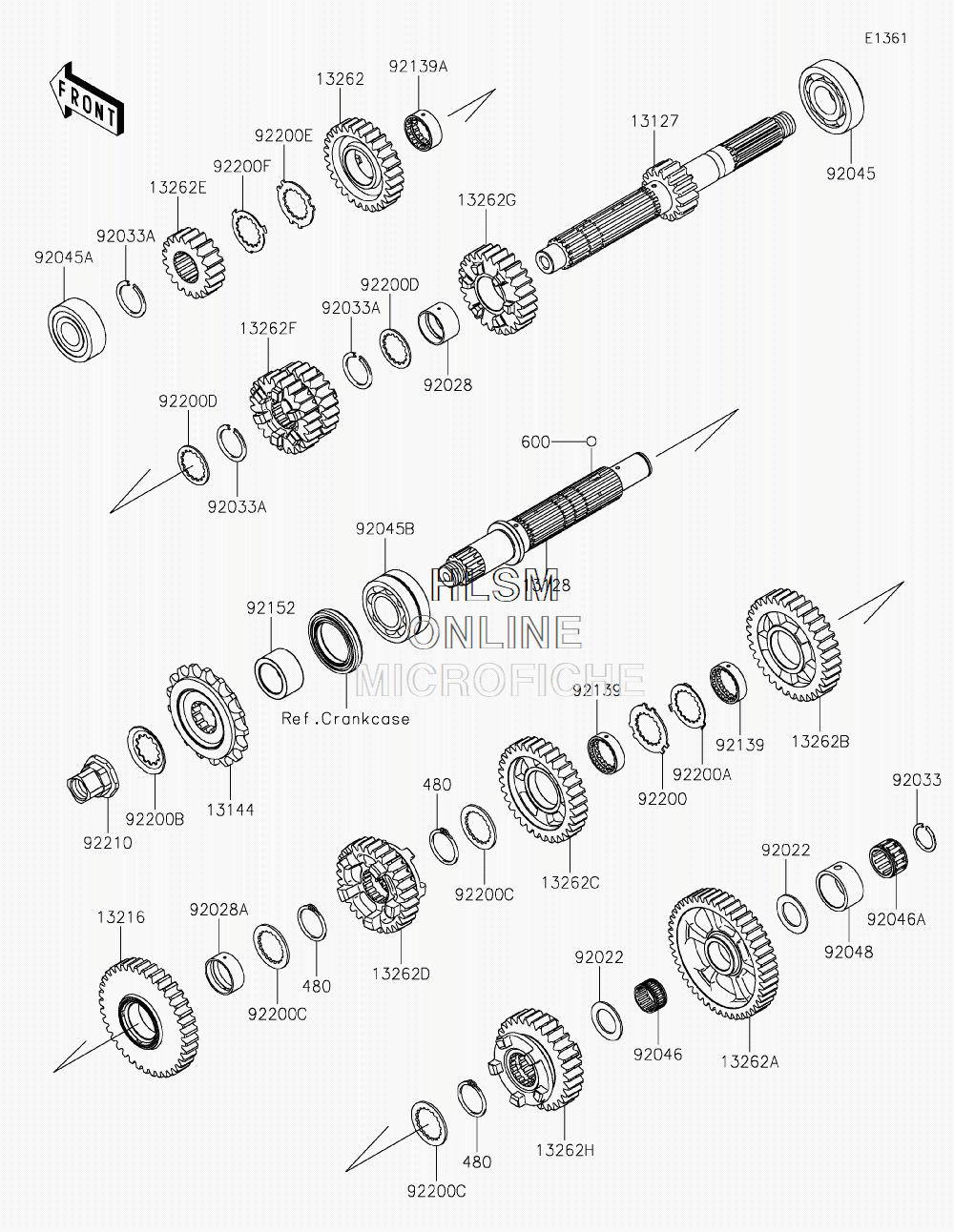

TRANSMISSION для Kawasaki NINJA ZX-14R ABS SE (ZX1400JGF) - 2016 года выпуска
-
№АртикулНазвание
-
1312713127-0646 SHAFT-TRANSMISSION INPUT, 18TSHAFT-TRANSMISSION INPUT, 18T
-
1312813128-0683 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0040 SPROCKET-OUTPUT, 17TSPROCKET-OUTPUT, 17T
-
1321613216-0881 GEAR-COMP, OUTPUT 2ND, 37TGEAR-COMP, OUTPUT 2ND, 37T
-
1326213262-0925 GEAR, INPUT TOP, 28TGEAR, INPUT TOP, 28T
-
13262A13262-0941 GEAR, OUTPUT LOW, 47TGEAR, OUTPUT LOW, 47T
-
13262B13262-0943 GEAR, OUTPUT 3RD, 34TGEAR, OUTPUT 3RD, 34T
-
13262C13262-0944 GEAR, OUTPUT 4TH, 32TGEAR, OUTPUT 4TH, 32T
-
13262D13262-0945 GEAR, OUTPUT TOP, 29TGEAR, OUTPUT TOP, 29T
-
13262E13262-0946 GEAR, INPUT 2ND, 19TGEAR, INPUT 2ND, 19T
-
13262F13262-0947 GEAR, INPUT 3RD & 4TH, 22T & 24TGEAR, INPUT 3RD & 4TH, 22T & 24T
-
13262G13262-0948 GEAR, INPUT 5TH, 26TGEAR, INPUT 5TH, 26T
-
13262H13262-0957 GEAR, OUTPUT 5TH, 30TGEAR, OUTPUT 5TH, 30T
-
480480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL-STEEL, 5/32BALL-STEEL, 5/32
-
9202292022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9202892028-1935 BUSHINGBUSHING
-
92028A92028-1937 BUSHINGBUSHING
-
9203392033-025 RING-SNAP, 20X25.5X1.2RING-SNAP, 20X25.5X1.2
-
92033A92033-1249 RING-SNAP, T=1.5RING-SNAP, T=1.5
-
9204592045-0047 BEARING-BALL, 830045-5SH2BEARING-BALL, 830045-5SH2
-
92045A92045-0048 BEARING-BALL, DG2152RDDSH2BEARING-BALL, DG2152RDDSH2
-
92045B92045-0049 BEARING-BALL, DAC2857NSSH6CS9BEARING-BALL, DAC2857NSSH6CS9
-
9204692046-0018 BEARING-NEEDLE, K22X26X13BEARING-NEEDLE, K22X26X13
-
92046A92046-0609 BEARING-NEEDLEBEARING-NEEDLE
-
9204892048-0004 RACERACE
-
9213992139-0255 BUSHINGBUSHING
-
92139A92139-0256 BUSHING, INPUT 6TH, GEARBUSHING, INPUT 6TH, GEAR
-
9215292152-1786 COLLAR, 27.5X38X19.7COLLAR, 27.5X38X19.7
-
9220092200-0255 WASHER, 27.5X43X1.5WASHER, 27.5X43X1.5
-
92200A92200-0256 WASHER, 27.5X39.7X1.0WASHER, 27.5X39.7X1.0
-
92200B92200-0260 WASHER, 23.9X45X1.0WASHER, 23.9X45X1.0
-
92200C92200-1277 WASHER, TOOTHED, 28X40X2WASHER, TOOTHED, 28X40X2
-
92200D92200-1340 WASHER, 25.5X35.5X1.5WASHER, 25.5X35.5X1.5
-
92200E92200-1522 WASHER, 25.8X40.5X1.5WASHER, 25.8X40.5X1.5
-
92200F92200-1523 WASHER, 25.2X37.0X1.0WASHER, 25.2X37.0X1.0
-
9221092210-0237 NUT, 20X1.5NUT, 20X1.5
