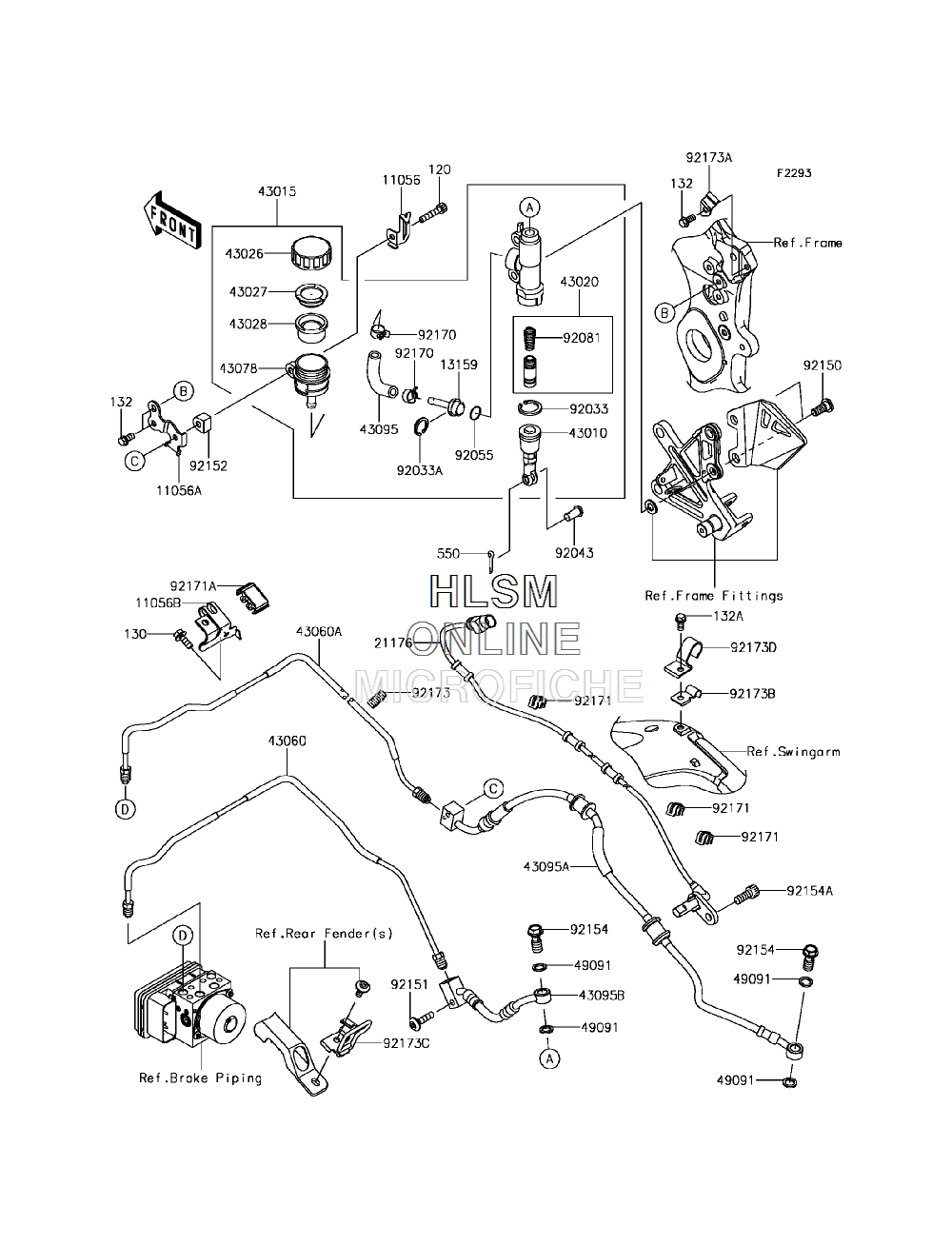

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-10R ABS KRT EDITION (ZX1000SGFA) - 2016 года выпуска

  • №
    Артикул
    Название
  • 120
    120CC0635 BOLT-SOCKET, 6X35
    BOLT-SOCKET, 6X35
  • 130
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 132
    132BA0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 132A
    132BB0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 11056
    11056-7024 BRACKET, RESERVOIR TANK CAP
    BRACKET, RESERVOIR TANK CAP
  • 11056A
    11056-7786 BRACKET, RESERVOIR TANK
    BRACKET, RESERVOIR TANK
  • 11056B
    11056-7960 BRACKET, UPP CROSS
    BRACKET, UPP CROSS
  • 13159
    13159-0009 CONNECTOR
    CONNECTOR
  • 21176
    21176-0815 SENSOR, REAR WHEEL
    SENSOR, REAR WHEEL
  • 43010
    43010-0016 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0640 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1057 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-0009 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1053 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1065 DIAPHRAGM
    DIAPHRAGM
  • 43060
    43060-0095 PIPE-BRAKE, REAR M/CYLINDER-HU
    PIPE-BRAKE, REAR M/CYLINDER-HU
  • 43060A
    43060-0328 PIPE-BRAKE, ABS UNIT-SWA BKT
    PIPE-BRAKE, ABS UNIT-SWA BKT
  • 43078
    43078-0575 RESERVOIR
    RESERVOIR
  • 43095
    43095-0585 HOSE-BRAKE, RESERVOIR
    HOSE-BRAKE, RESERVOIR
  • 43095A
    43095-0928 HOSE-BRAKE, SWA BKT-REAR CAL.
    HOSE-BRAKE, SWA BKT-REAR CAL.
  • 43095B
    43095-0936 HOSE-BRAKE, REAR M/CYL.-SWA BKT
    HOSE-BRAKE, REAR M/CYL.-SWA BKT
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92033
    92033-0079 RING-SNAP, 20.9X24.6X1.2
    RING-SNAP, 20.9X24.6X1.2
  • 92033A
    92033-1186 RING-SNAP, 20.5MM
    RING-SNAP, 20.5MM
  • 92043
    92043-0104 PIN, 8X17
    PIN, 8X17
  • 92055
    92055-0741 RING-O, 14.8X2.4
    RING-O, 14.8X2.4
  • 92081
    92081-1737 SPRING, MASTER CYLINDER
    SPRING, MASTER CYLINDER
  • 92150
    92150-1837 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92151
    92151-1611 BOLT, SOCKET, 6X25
    BOLT, SOCKET, 6X25
  • 92152
    92152-2188 COLLAR, 6.1X16X11.3
    COLLAR, 6.1X16X11.3
  • 92154
    92154-1712 BOLT, BANJO, 10X23
    BOLT, BANJO, 10X23
  • 92154A
    92154-1976 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92170
    92170-1091 CLAMP, HOSE
    CLAMP, HOSE
  • 92171
    92171-0921 CLAMP
    CLAMP
  • 92171A
    92171-1731 CLAMP
    CLAMP
  • 92173
    92173-0181 CLAMP
    CLAMP
  • 92173A
    92173-1516 CLAMP, MAIN FRAME, REAR
    CLAMP, MAIN FRAME, REAR
  • 92173B
    92173-1517 CLAMP, SWING ARM, MID
    CLAMP, SWING ARM, MID
  • 92173C
    92173-1518 CLAMP, SWING ARM, REAR
    CLAMP, SWING ARM, REAR
  • 92173D
    92173-1520 CLAMP, SWING ARM, MID
    CLAMP, SWING ARM, MID
  • 550
    550AA2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
