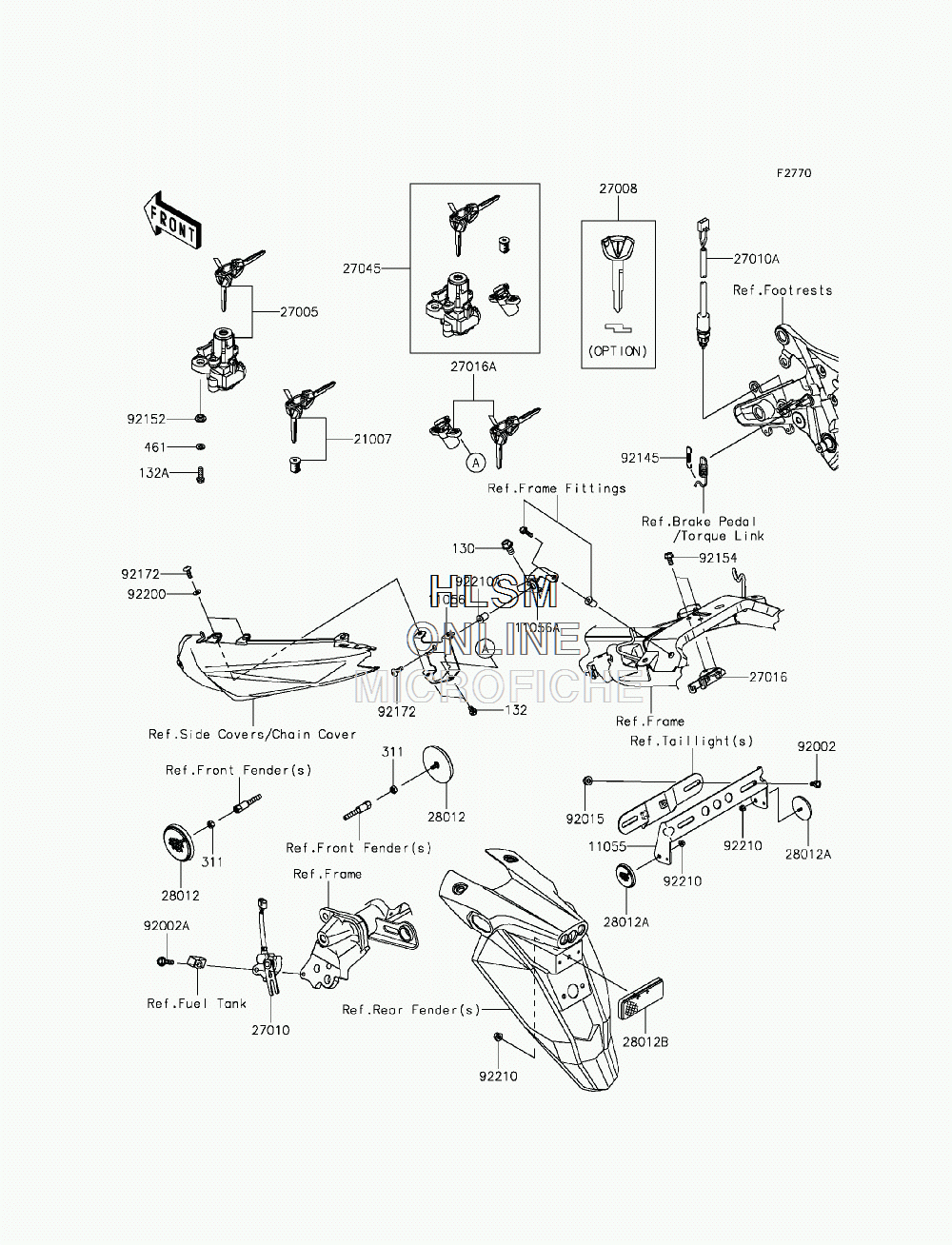

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA 650 (EX650EGF) - 2016 года выпуска`
-
№АртикулНазвание
-
130130BA0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
132132BA0608 BOLT-FLANGED-SMALL, 6X8BOLT-FLANGED-SMALL, 6X8
-
132A132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
311311AB0500 NUT-HEX, 5MMNUT-HEX, 5MM
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
1105511055-1092 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1105611056-1923 BRACKETBRACKET
-
11056A11056-1924 BRACKETBRACKET
-
2100721007-5068 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0552 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0069 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0722 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0723 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-0008 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5372 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704527045-5452 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9200292002-1132 BOLT, 6X12BOLT, 6X12
-
92002A92002-1582 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9214592145-0724 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215292152-1535 COLLAR, 6.15X10.15X6COLLAR, 6.15X10.15X6
-
9215492154-1050 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9217292172-0322 SCREW, 5X16SCREW, 5X16
-
9220092200-1480 WASHER, NYLON, 5.3X11.5X0.5WASHER, NYLON, 5.3X11.5X0.5
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
92210A92210-0498 NUT, WELL, 5MMNUT, WELL, 5MM
