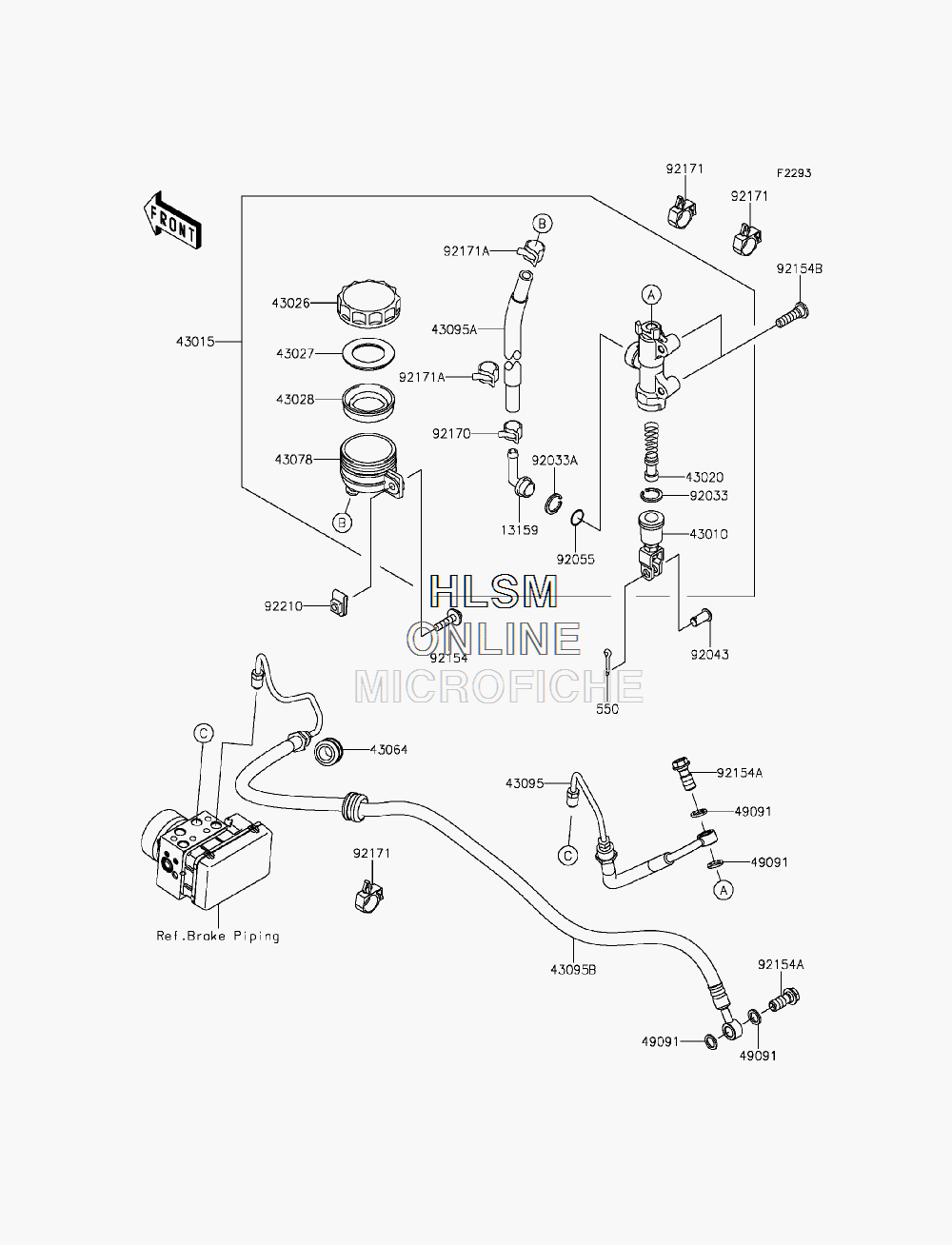

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA 650 ABS (EX650FGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 550
    550AA2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 13159
    13159-1056 CONNECTOR
    CONNECTOR
  • 43010
    43010-1062 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0559 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1094 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43064
    43064-006 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 43078
    43078-1082 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0623 HOSE-BRAKE, REAR M/C-ABS ECU
    HOSE-BRAKE, REAR M/C-ABS ECU
  • 43095A
    43095-0628 HOSE-BRAKE, REAR M/CYLINDER
    HOSE-BRAKE, REAR M/CYLINDER
  • 43095B
    43095-0722 HOSE-BRAKE, ABS ECU-REAR CALIPER
    HOSE-BRAKE, ABS ECU-REAR CALIPER
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92033
    92033-0079 RING-SNAP, 20.9X24.6X1.2
    RING-SNAP, 20.9X24.6X1.2
  • 92033A
    92033-1186 RING-SNAP, 20.5MM
    RING-SNAP, 20.5MM
  • 92043
    92043-0182 PIN
    PIN
  • 92055
    92055-0741 RING-O, 14.8X2.4
    RING-O, 14.8X2.4
  • 92154
    92154-0467 BOLT, 6X25
    BOLT, 6X25
  • 92154A
    92154-0732 BOLT, FLANGED, 10X23
    BOLT, FLANGED, 10X23
  • 92154B
    92154-0843 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92170
    92170-1091 CLAMP, HOSE
    CLAMP, HOSE
  • 92171
    92171-0316 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92171A
    92171-0463 CLAMP, HOSE
    CLAMP, HOSE
  • 92210
    92210-0474 NUT, 6MM
    NUT, 6MM
