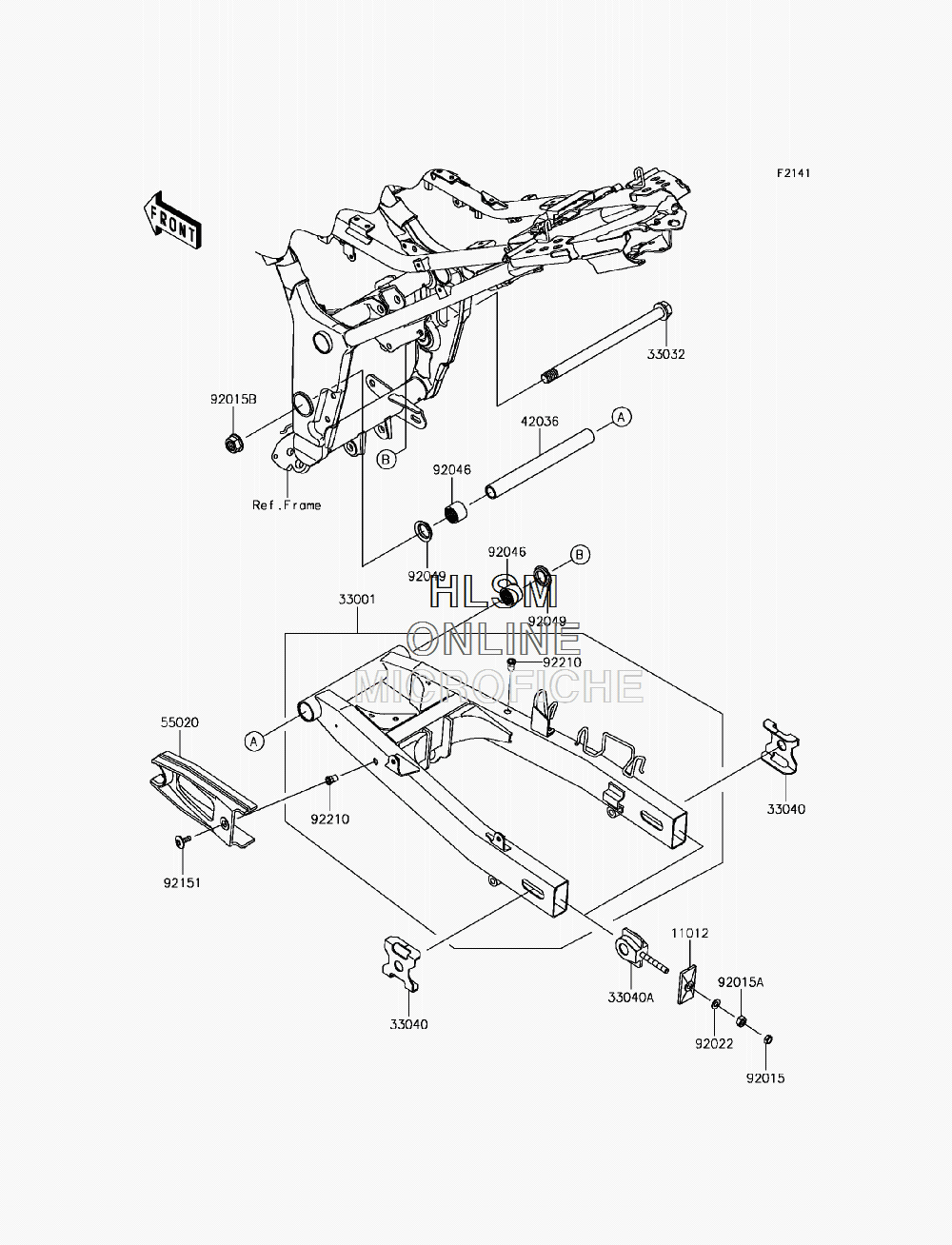

SUSPENSION - SWINGARM для Kawasaki NINJA 300 SE (EX300AGFA) - 2016 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1871-18R CAP, CHAIN ADJUSTER, (F.S.BLACK)
    CAP, CHAIN ADJUSTER, (F.S.BLACK)
  • 33001
    33001-0632-18R ARM-COMP-SWING, (F.S.BLACK)
    ARM-COMP-SWING, (F.S.BLACK)
  • 33032
    33032-1134 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0030-18R ADJUSTER-CHAIN, OUTER, (F.S.BLACK)
    ADJUSTER-CHAIN, OUTER, (F.S.BLACK)
  • 33040A
    33040-1116 ADJUSTER-CHAIN, INNER
    ADJUSTER-CHAIN, INNER
  • 42036
    42036-1218 SLEEVE, 16.1X22X213
    SLEEVE, 16.1X22X213
  • 55020
    55020-0317 GUARD, CHAIN
    GUARD, CHAIN
  • 92015
    92015-1364 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1658 NUT, 8MM
    NUT, 8MM
  • 92015B
    92015-1946 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92022
    92022-1582 WASHER, 8.5X16X1.2
    WASHER, 8.5X16X1.2
  • 92046
    92046-0610 BEARING-NEEDLE, 22X28X20
    BEARING-NEEDLE, 22X28X20
  • 92049
    92049-1254 SEAL-OIL, MHA22 28 5.7F
    SEAL-OIL, MHA22 28 5.7F
  • 92151
    92151-1149 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 92210
    92210-1397 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
