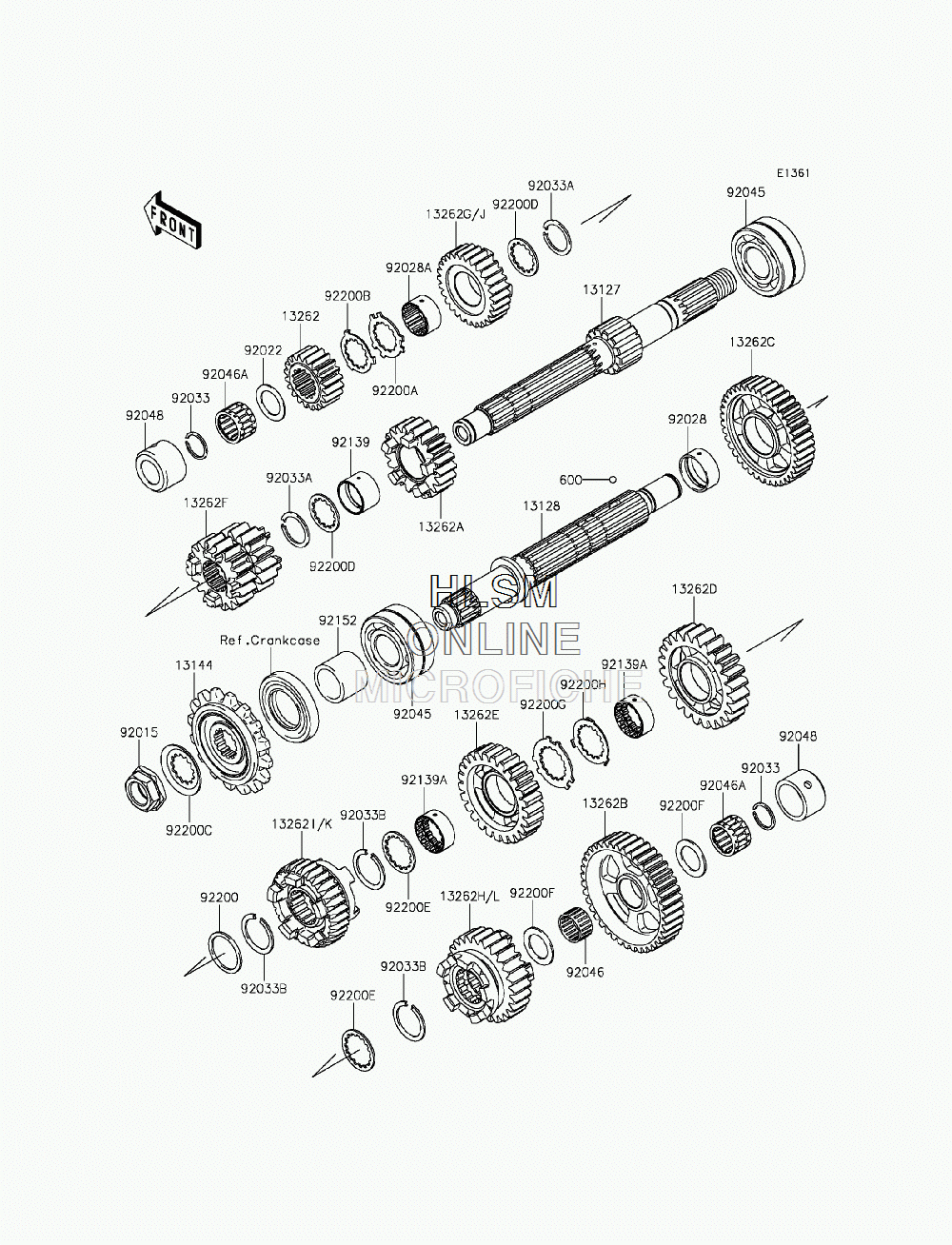

TRANSMISSION для Kawasaki NINJA 1000 ABS (ZX1000MGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 600
    600A0500 BALL-STEEL, 5/32
    BALL-STEEL, 5/32
  • 13127
    13127-0073 SHAFT-TRANSMISSION INPUT
    SHAFT-TRANSMISSION INPUT
  • 13128
    13128-0054 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0070 SPROCKET-OUTPUT, 15T
    SPROCKET-OUTPUT, 15T
  • 13262
    13262-0753 GEAR, INPUT 2ND, 20T
    GEAR, INPUT 2ND, 20T
  • 13262A
    13262-0755 GEAR, INPUT 5TH, 21T
    GEAR, INPUT 5TH, 21T
  • 13262B
    13262-0757 GEAR, OUTPUT LOW, 39T
    GEAR, OUTPUT LOW, 39T
  • 13262C
    13262-0778 GEAR, OUTPUT 2ND, 39T
    GEAR, OUTPUT 2ND, 39T
  • 13262D
    13262-0779 GEAR, OUTPUT 3RD, 24T
    GEAR, OUTPUT 3RD, 24T
  • 13262E
    13262-0780 GEAR, OUTPUT 4TH, 25T
    GEAR, OUTPUT 4TH, 25T
  • 13262F
    13262-0991 GEAR, INPUT 3RD & 4TH, 15T & 18T
    GEAR, INPUT 3RD & 4TH, 15T & 18T
  • 13262J
    13262-1196 GEAR, INPUT TOP, 28T
    GEAR, INPUT TOP, 28T
  • 13262K
    13262-1197 GEAR, OUTPUT TOP, 31T
    GEAR, OUTPUT TOP, 31T
  • 13262L
    13262-1202 GEAR, OUTPUT 5TH, 26T
    GEAR, OUTPUT 5TH, 26T
  • 92015
    92015-1963 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-112 WASHER, 20.5X30X1, STEEL
    WASHER, 20.5X30X1, STEEL
  • 92028
    92028-1739 BUSHING, OUTPUT, 2ND
    BUSHING, OUTPUT, 2ND
  • 92028A
    92028-1915 BUSHING, INPUT TOP GEAR
    BUSHING, INPUT TOP GEAR
  • 92033
    92033-015 RING-SNAP, 20MM
    RING-SNAP, 20MM
  • 92033A
    92033-026 RING-SNAP, 24MM
    RING-SNAP, 24MM
  • 92033B
    92033-1249 RING-SNAP, T=1.5
    RING-SNAP, T=1.5
  • 92045
    92045-0003 BEARING-BALL, DAC2557NSSH
    BEARING-BALL, DAC2557NSSH
  • 92046
    92046-1219 BEARING-NEEDLE, K20X24X13
    BEARING-NEEDLE, K20X24X13
  • 92046A
    92046-1303 BEARING-NEEDLE, PK20X27X17X3
    BEARING-NEEDLE, PK20X27X17X3
  • 92048
    92048-0016 RACE
    RACE
  • 92139
    92139-0280 BUSHING, 25X28X17.8
    BUSHING, 25X28X17.8
  • 92139A
    92139-0281 BUSHING, OUTPUT, 3RD & 4TH
    BUSHING, OUTPUT, 3RD & 4TH
  • 92152
    92152-0812 COLLAR, SPROCKET
    COLLAR, SPROCKET
  • 92200
    92200-0228 WASHER, 28.1X34.0X1.6
    WASHER, 28.1X34.0X1.6
  • 92200A
    92200-0520 WASHER, 25.2X34.2X1.5
    WASHER, 25.2X34.2X1.5
  • 92200B
    92200-0521 WASHER, 25.2X32X1
    WASHER, 25.2X32X1
  • 92200C
    92200-1065 WASHER
    WASHER
  • 92200D
    92200-1239 WASHER, 25.2X31.0X1.5
    WASHER, 25.2X31.0X1.5
  • 92200E
    92200-1240 WASHER, 28.5X34.0X1.5
    WASHER, 28.5X34.0X1.5
  • 92200F
    92200-1375 WASHER, 20.5X31X1.5
    WASHER, 20.5X31X1.5
  • 92200G
    92200-1522 WASHER, 25.8X40.5X1.5
    WASHER, 25.8X40.5X1.5
  • 92200H
    92200-1523 WASHER, 25.2X37.0X1.0
    WASHER, 25.2X37.0X1.0
