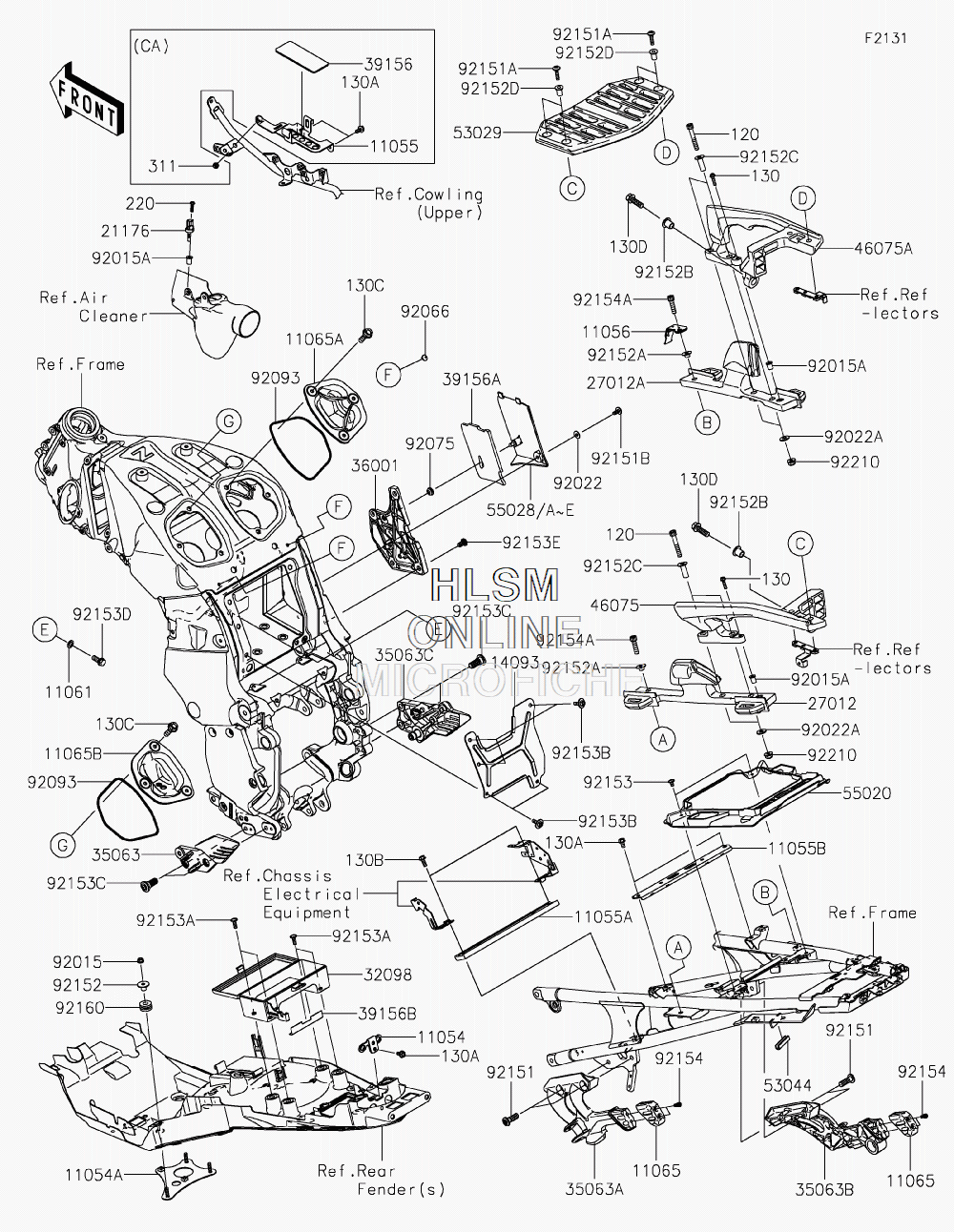

FRAME FITTINGS для Kawasaki CONCOURS 14 ABS (ZG1400EGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-1194 BRACKET, DOWN SENSOR
    BRACKET, DOWN SENSOR
  • 11054A
    11054-1197 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 11055
    11055-0112 BRACKET, CANISTER (CALIF. ONLY)
    BRACKET, CANISTER (CALIF. ONLY)
  • 11055A
    11055-0129 BRACKET, REAR FENDER, CROSS
    BRACKET, REAR FENDER, CROSS
  • 11055B
    11055-1890 BRACKET, FUEL TANK
    BRACKET, FUEL TANK
  • 11056
    11056-0063 BRACKET, SIGNAL LAMP RELAY
    BRACKET, SIGNAL LAMP RELAY
  • 11061
    11061-0107 GASKET
    GASKET
  • 11065
    11065-0166 CAP
    CAP
  • 11065A
    11065-0223 CAP, AIR CLEANER, RIGHT HAND
    CAP, AIR CLEANER, RIGHT HAND
  • 11065B
    11065-0763 CAP, AIR CLEANER, LEFT HAND
    CAP, AIR CLEANER, LEFT HAND
  • 120
    120CA0850 BOLT-SOCKET, 8X50
    BOLT-SOCKET, 8X50
  • 130
    130BA0525 BOLT-FLANGED, 5X25
    BOLT-FLANGED, 5X25
  • 130A
    130BA0612 BOLT-FLANGED, 6X12 (EXCEPT CALIF.)
    BOLT-FLANGED, 6X12 (EXCEPT CALIF.)
  • 130A
    130BA0612 BOLT-FLANGED, 6X12 (CALIF. ONLY)
    BOLT-FLANGED, 6X12 (CALIF. ONLY)
  • 130B
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130C
    130BA0622 BOLT-FLANGED, 6X22
    BOLT-FLANGED, 6X22
  • 130D
    130BA1035 BOLT-FLANGED, 10X35
    BOLT-FLANGED, 10X35
  • 14093
    14093-0148 COVER, BATTERY
    COVER, BATTERY
  • 21176
    21176-0048 SENSOR, AIR TEMPERATURE
    SENSOR, AIR TEMPERATURE
  • 220
    220AB0518 SCREW-PAN-CROS, 5X18
    SCREW-PAN-CROS, 5X18
  • 27012
    27012-0762 HOOK, LEFT HAND
    HOOK, LEFT HAND
  • 27012A
    27012-0763 HOOK, RIGHT HAND
    HOOK, RIGHT HAND
  • 311
    311BA0600 NUT-HEX, 6MM (CALIF. ONLY)
    NUT-HEX, 6MM (CALIF. ONLY)
  • 32098
    32098-0016 CASE-TOOL
    CASE-TOOL
  • 35063
    35063-0357-458 STAY, FRONT, LEFT HAND, (P.SILVER)
    STAY, FRONT, LEFT HAND, (P.SILVER)
  • 35063A
    35063-0359-18R STAY, REAR, LEFT HAND, (F.S.BLACK)
    STAY, REAR, LEFT HAND, (F.S.BLACK)
  • 35063B
    35063-0360-18R STAY, REAR, RIGHT HAND, (F.S.BLACK)
    STAY, REAR, RIGHT HAND, (F.S.BLACK)
  • 35063C
    35063-0637-458 STAY, FRONT, RIGHT HAND, (P.SILVER)
    STAY, FRONT, RIGHT HAND, (P.SILVER)
  • 36001
    36001-0188-18R COVER-SIDE, BATTERY, RIGHT HAND, (F.S.BLACK)
    COVER-SIDE, BATTERY, RIGHT HAND, (F.S.BLACK)
  • 39156
    39156-0330 PAD, CANISTER BRACKET (CALIF. ONLY)
    PAD, CANISTER BRACKET (CALIF. ONLY)
  • 39156A
    39156-0544 PAD, BATTERY COWLING
    PAD, BATTERY COWLING
  • 39156B
    39156-1872 PAD, 25X90
    PAD, 25X90
