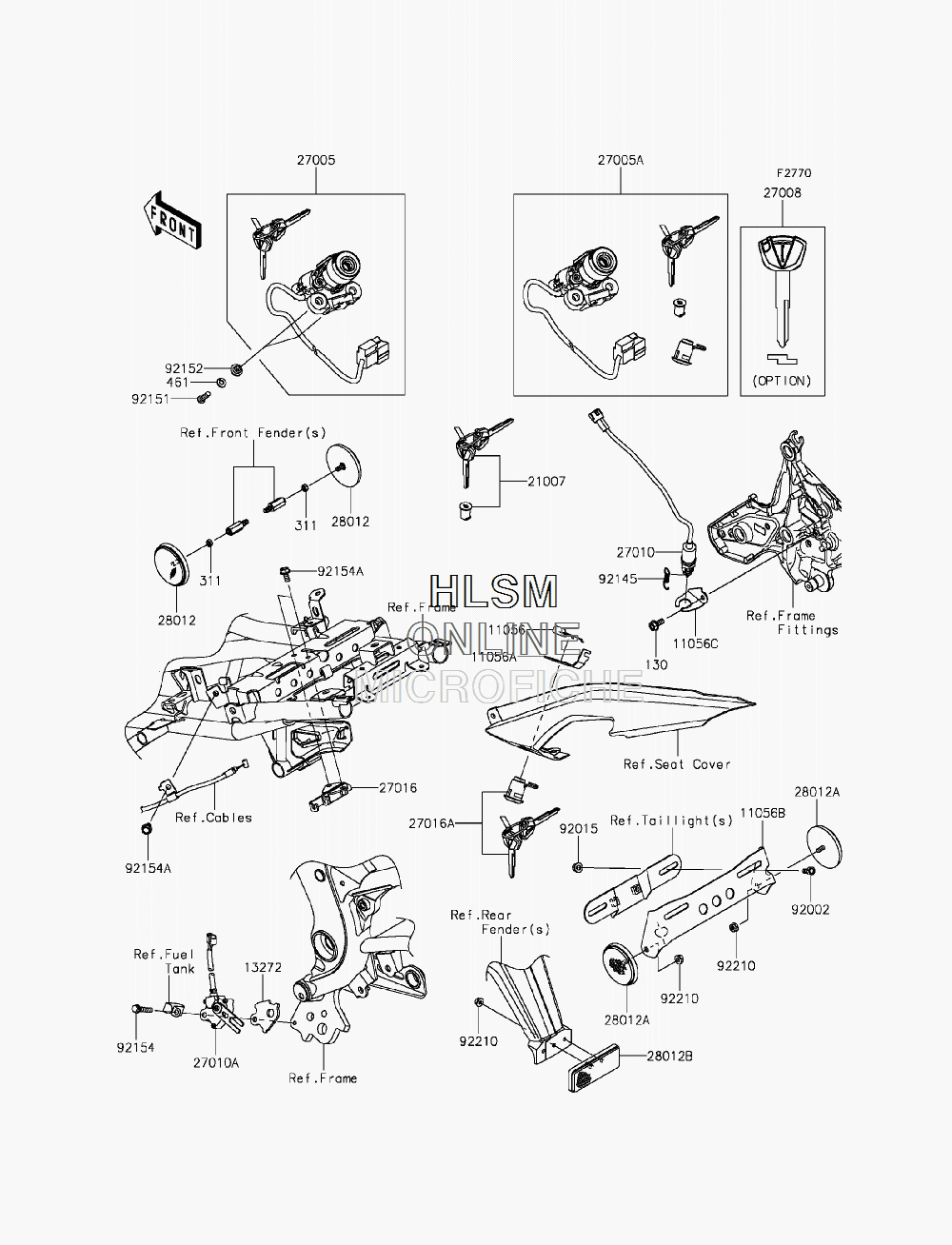

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VERSYS 650 LT (KLE650FFFAS) - 2015 года выпуска`
-
№АртикулНазвание
-
130130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
311311AB0500 NUT-HEX, 5MMNUT-HEX, 5MM
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
1105611056-0238 BRACKET, CLASPBRACKET, CLASP
-
11056A11056-2119 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
11056B11056-2773 BRACKET, REFLECTORBRACKET, REFLECTOR
-
11056C11056-3974 BRACKET, REAR BRAKE SW.BRACKET, REAR BRAKE SW.
-
1327213272-1330 PLATEPLATE
-
2100721007-5077 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0592 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
27005A27005-5153 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0596 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0095 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-0722 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-0008 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5386 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9200292002-1132 BOLT, 6X12BOLT, 6X12
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9214592145-0724 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9215292152-1535 COLLAR, 6.15X10.15X6COLLAR, 6.15X10.15X6
-
9215492154-1040 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154A92154-1050 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
