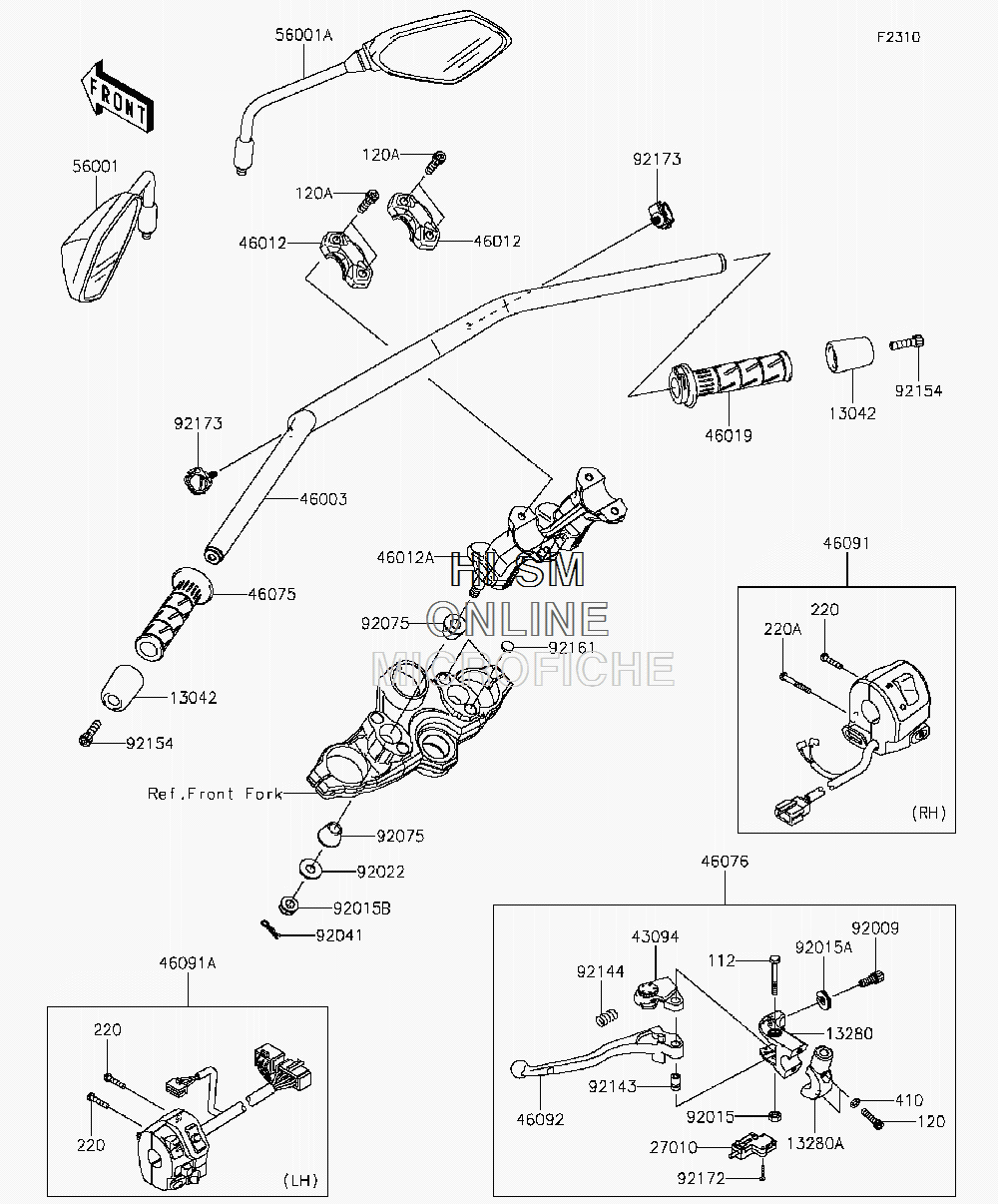

HANDLEBAR для Kawasaki VERSYS 1000 LT (KLZ1000BFF) - 2015 года выпуска
-
№АртикулНазвание
-
112112AB0645 BOLT-UPSET, 6X45BOLT-UPSET, 6X45
-
120120CB0625 BOLT-SOCKET, 6X25BOLT-SOCKET, 6X25
-
120A120CC0830 BOLT-SOCKET, 8X30BOLT-SOCKET, 8X30
-
1304213042-5007 WEIGHT, HANDLEWEIGHT, HANDLE
-
1328013280-0306 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
13280A13280-0307 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
220220AB0525 SCREW-PAN-CROS, 5X25SCREW-PAN-CROS, 5X25
-
220A220AB0540 SCREW-PAN-CROS, 5X40SCREW-PAN-CROS, 5X40
-
2701027010-1094 SWITCH, CLUTCH, (BLACK)SWITCH, CLUTCH, (BLACK)
-
410410AB0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
4309443094-1053 ADJUSTER, CLUTCH LEVERADJUSTER, CLUTCH LEVER
-
4600346003-0627-18R HANDLE, (F.S.BLACK) (FOR ALL COLORS)HANDLE, (F.S.BLACK) (FOR ALL COLORS)
-
4601246012-0353-18R HOLDER-HANDLE, UPPER, (F.S.BLACK) (FOR ALL COLORS)HOLDER-HANDLE, UPPER, (F.S.BLACK) (FOR ALL COLORS)
-
46012A46012-0354-18R HOLDER-HANDLE, LOWER, (F.S.BLACK) (FOR ALL COLORS)HOLDER-HANDLE, LOWER, (F.S.BLACK) (FOR ALL COLORS)
-
4601946019-0060 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-0564 GRIP, HANDLE, LEFT HANDGRIP, HANDLE, LEFT HAND
-
4607646076-0052 LEVER-ASSY-GRIP, CLUTCHLEVER-ASSY-GRIP, CLUTCH
-
4609146091-0252 HOUSING-ASSY-CONTROL, RIGHT HANDHOUSING-ASSY-CONTROL, RIGHT HAND
-
46091A46091-0253 HOUSING-ASSY-CONTROL, LEFT HANDHOUSING-ASSY-CONTROL, LEFT HAND
-
4609246092-0031 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
5600156001-0297 MIRROR-ASSY, LEFT HANDMIRROR-ASSY, LEFT HAND
-
56001A56001-0298 MIRROR-ASSY, RIGHT HANDMIRROR-ASSY, RIGHT HAND
-
9200992009-1134 SCREW, CABLE ADJUST, 8MM, (BLACK)SCREW, CABLE ADJUST, 8MM, (BLACK)
-
9201592015-1191 NUT, LOCK, 6MM, (BLACK)NUT, LOCK, 6MM, (BLACK)
-
92015A92015-1197 NUT, CABLE ADJUST LOCK, 8MM, (BLACK)NUT, CABLE ADJUST LOCK, 8MM, (BLACK)
-
92015B92015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9202292022-1396 WASHER, 10.5X26X2.3, (BLACK)WASHER, 10.5X26X2.3, (BLACK)
-
9204192041-1060 COTTER, 8MMCOTTER, 8MM
-
9207592075-039 DAMPER, HANDLE HOLDERDAMPER, HANDLE HOLDER
-
9214392143-1379 COLLARCOLLAR
-
9214492144-1467 SPRINGSPRING
-
9215492154-0502 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9216192161-1723 DAMPER, 13X3DAMPER, 13X3
-
9217292172-0183 SCREW, 3X16SCREW, 3X16
-
9217392173-0861 CLAMPCLAMP
