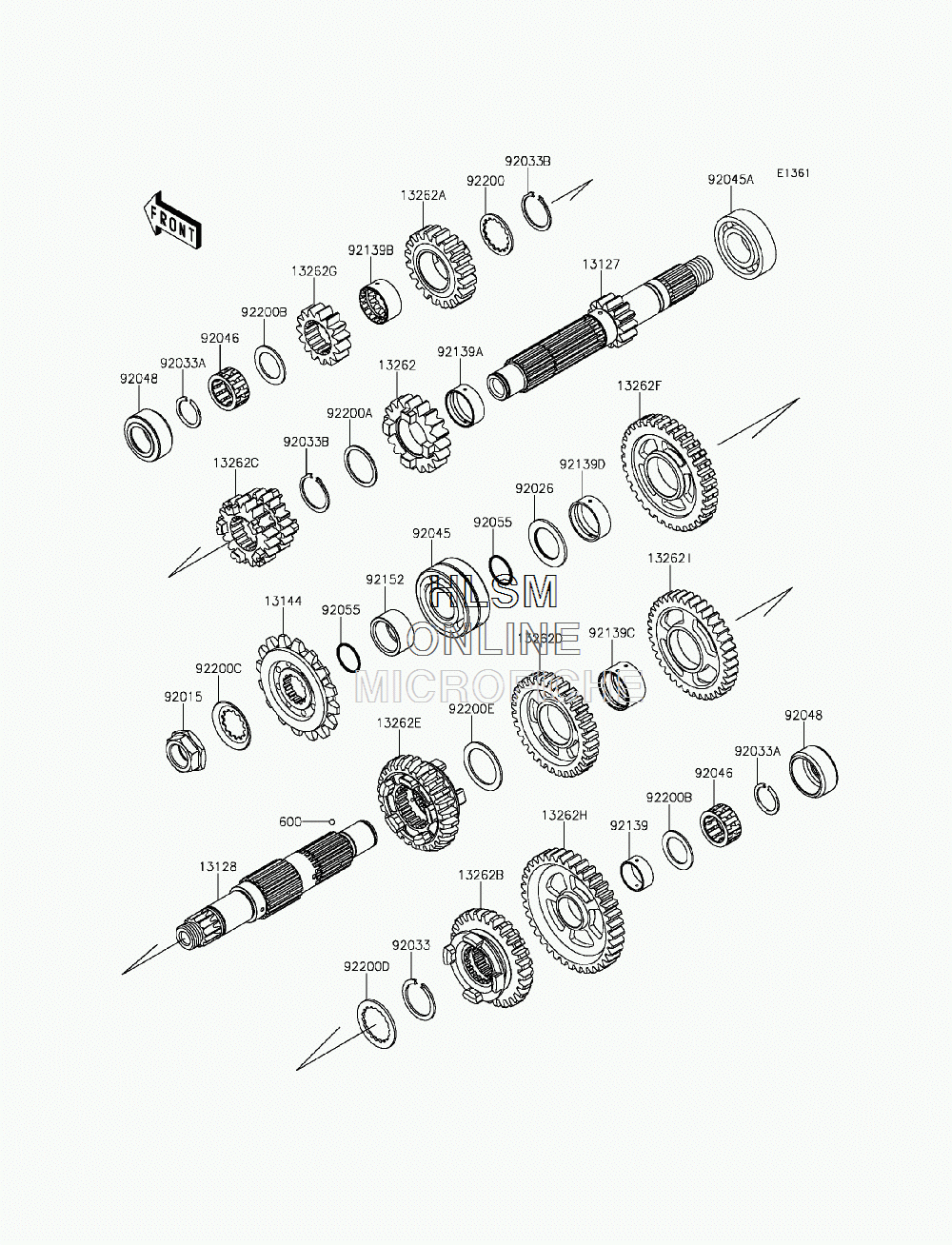

TRANSMISSION для Kawasaki NINJA ZX-6R ABS (ZX636FFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 600
    600A0500 BALL-STEEL,5/32
    BALL-STEEL,5/32
  • 13127
    13127-0647 SHAFT-TRANSMISSION INPUT,13T
    SHAFT-TRANSMISSION INPUT,13T
  • 13128
    13128-0031 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0038 SPROCKET-OUTPUT,16T,#520
    SPROCKET-OUTPUT,16T,#520
  • 13262
    13262-0374 GEAR,INPUT 5TH,19T
    GEAR,INPUT 5TH,19T
  • 13262A
    13262-0375 GEAR,INPUT 6TH,20T
    GEAR,INPUT 6TH,20T
  • 13262B
    13262-0380 GEAR,OUTPUT 5TH,27T
    GEAR,OUTPUT 5TH,27T
  • 13262C
    13262-0506 GEAR,INPUT 3RD & 4TH,20T & 20T
    GEAR,INPUT 3RD & 4TH,20T & 20T
  • 13262D
    13262-0510 GEAR,OUTPUT 4TH,32T
    GEAR,OUTPUT 4TH,32T
  • 13262E
    13262-0582 GEAR,OUTPUT 6TH,26T
    GEAR,OUTPUT 6TH,26T
  • 13262F
    13262-0743 GEAR,OUTPUT 2ND,33T
    GEAR,OUTPUT 2ND,33T
  • 13262G
    13262-0950 GEAR,INPUT 2ND,15T
    GEAR,INPUT 2ND,15T
  • 13262H
    13262-0951 GEAR,OUTPUT LOW,37T
    GEAR,OUTPUT LOW,37T
  • 13262I
    13262-0963 GEAR,OUTPUT 3RD,37T
    GEAR,OUTPUT 3RD,37T
  • 92015
    92015-1963 NUT,20MM
    NUT,20MM
  • 92026
    92026-1529 SPACER,25.3X39X2.0
    SPACER,25.3X39X2.0
  • 92033
    92033-0047 RING-SNAP,26.9X34X1.5
    RING-SNAP,26.9X34X1.5
  • 92033A
    92033-025 RING-SNAP,20X25.5X1.2
    RING-SNAP,20X25.5X1.2
  • 92033B
    92033-1037 RING-SNAP,25.9X30.6X1.2
    RING-SNAP,25.9X30.6X1.2
  • 92045
    92045-0003 BEARING-BALL,DAC2557NSSH
    BEARING-BALL,DAC2557NSSH
  • 92045A
    92045-0058 BEARING-BALL,25X52X15
    BEARING-BALL,25X52X15
  • 92046
    92046-1291 BEARING-NEEDLE
    BEARING-NEEDLE
  • 92048
    92048-0007 RACE,30X38X17.3
    RACE,30X38X17.3
  • 92055
    92055-1293 RING-O,21.5X1.5
    RING-O,21.5X1.5
  • 92139
    92139-0038 BUSHING,GEAR,LOW OUT
    BUSHING,GEAR,LOW OUT
  • 92139A
    92139-0161 BUSHING,GEAR,5TH IN
    BUSHING,GEAR,5TH IN
  • 92139B
    92139-0162 BUSHING,GEAR,6TH IN
    BUSHING,GEAR,6TH IN
  • 92139C
    92139-0163 BUSHING,GEAR,3RD/4TH OUT
    BUSHING,GEAR,3RD/4TH OUT
  • 92139D
    92139-0164 BUSHING,GEAR,2ND OUT
    BUSHING,GEAR,2ND OUT
  • 92152
    92152-0444 COLLAR,25X32X15.7
    COLLAR,25X32X15.7
  • 92200
    92200-0050 WASHER,28.3X34.0X1.6
    WASHER,28.3X34.0X1.6
  • 92200A
    92200-0051 WASHER,28.1X34.0X1.2
    WASHER,28.1X34.0X1.2
  • 92200B
    92200-0138 WASHER,22.1X32.0X1.4
    WASHER,22.1X32.0X1.4
  • 92200C
    92200-0863 WASHER
    WASHER
  • 92200D
    92200-1277 WASHER,TOOTHED,28X40X2
    WASHER,TOOTHED,28X40X2
  • 92200E
    92200-1278 WASHER,29.9X40X1.5
    WASHER,29.9X40X1.5
