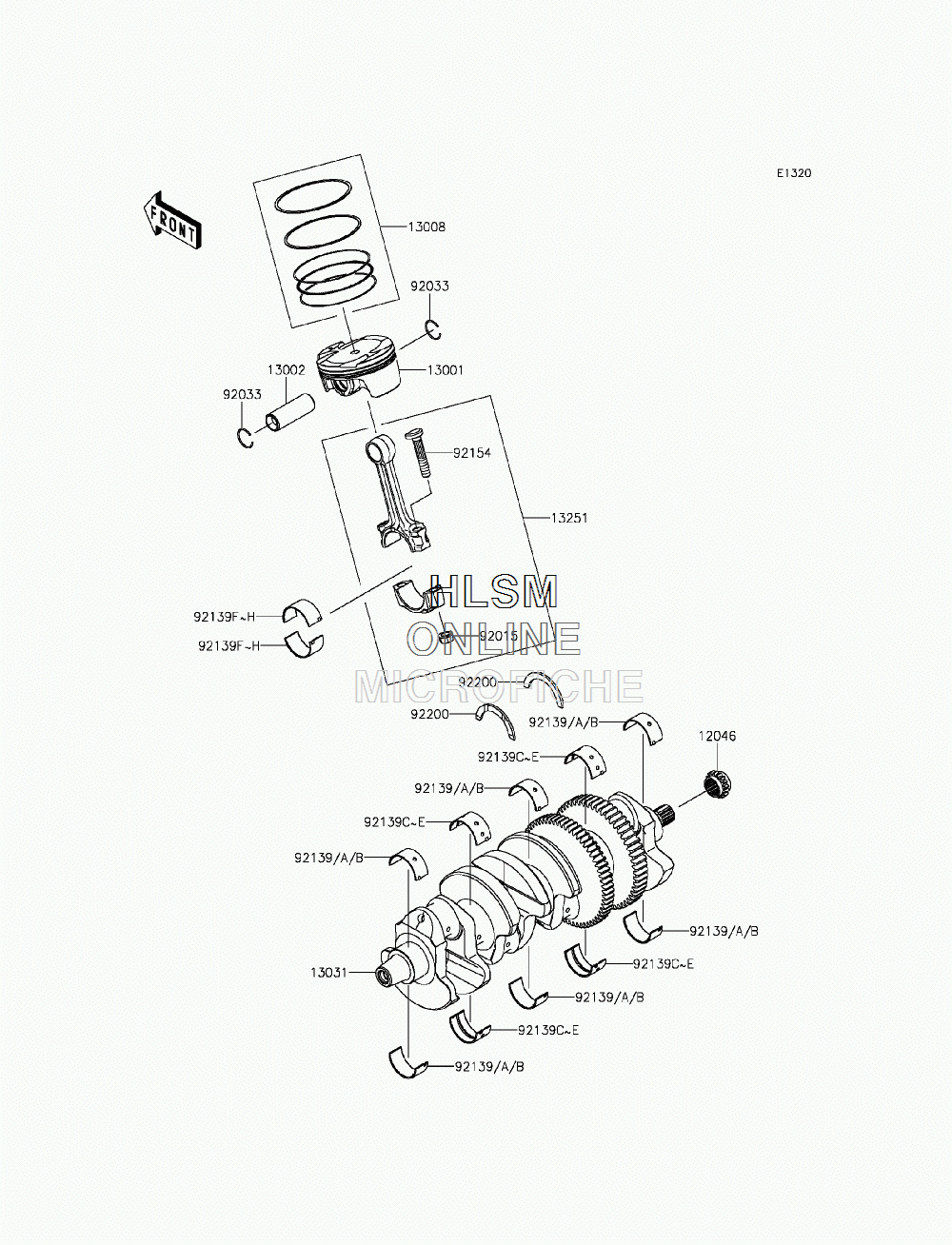

CRANKSHAFT/PISTON(S) для Kawasaki NINJA ZX-14R ABS (ZX1400FFFA) - 2015 года выпуска

  • №
    Артикул
    Название
  • 12046
    12046-0569 SPROCKET,17T
    SPROCKET,17T
  • 13001
    13001-0715 PISTON-ENGINE
    PISTON-ENGINE
  • 13002
    13002-0010 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-0556 RING-SET-PISTON
    RING-SET-PISTON
  • 13031
    13031-0724 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13251
    13251-0708-II ROD-ASSY-CONNECTING
    ROD-ASSY-CONNECTING
  • 92015
    92015-1559 NUT,CONNECTING ROD
    NUT,CONNECTING ROD
  • 92033
    92033-1207 RING-SNAP
    RING-SNAP
  • 92139
    92139-0738 BUSHING,CRANK,#1 & #3 & #5,(BLUE)
    BUSHING,CRANK,#1 & #3 & #5,(BLUE)
  • 92139A
    92139-0739 BUSHING,CRANK,#1 & #3 & #5,(BLACK)
    BUSHING,CRANK,#1 & #3 & #5,(BLACK)
  • 92139B
    92139-0740 BUSHING,CRANK,#1 & #3 & #5,(BROWN)
    BUSHING,CRANK,#1 & #3 & #5,(BROWN)
  • 92139C
    92139-0741 BUSHING,CRANK,#2 & #4,(BLUE)
    BUSHING,CRANK,#2 & #4,(BLUE)
  • 92139D
    92139-0742 BUSHING,CRANK,#2 & #4,(BLACK)
    BUSHING,CRANK,#2 & #4,(BLACK)
  • 92139E
    92139-0743 BUSHING,CRANK,#2 & #4,(BROWN)
    BUSHING,CRANK,#2 & #4,(BROWN)
  • 92139F
    92139-0828 BUSHING,CON-ROD,(BLUE)
    BUSHING,CON-ROD,(BLUE)
  • 92139G
    92139-0829 BUSHING,CON-ROD,(BLACK)
    BUSHING,CON-ROD,(BLACK)
  • 92139H
    92139-0830 BUSHING,CON-ROD,(BROWN)
    BUSHING,CON-ROD,(BROWN)
  • 92154
    92154-0828 BOLT,CONNECTING ROD,9MM
    BOLT,CONNECTING ROD,9MM
  • 92200
    92200-0744 WASHER,T=2.5
    WASHER,T=2.5
