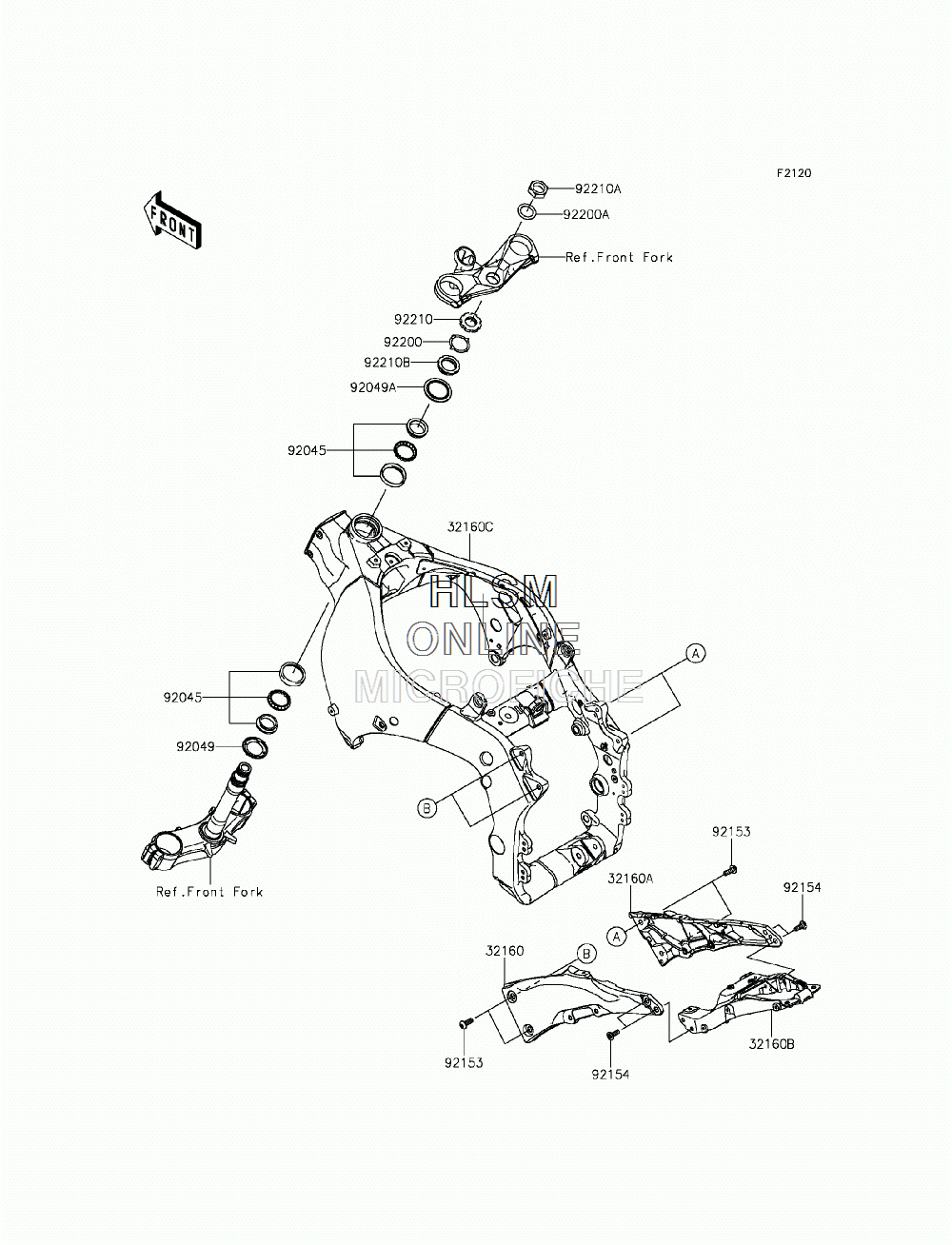

FRAME для Kawasaki NINJA H2 (ZX1000NFF) - 2015 года выпуска`
-
№АртикулНазвание
-
3203632036-0353-46R BRACKET-SWINGARM, M.F.S.BLACKBRACKET-SWINGARM, M.F.S.BLACK
-
3216032160-0742-46R FRAME-COMP, REAR, LEFT HAND, (M.F.S.BLACK)FRAME-COMP, REAR, LEFT HAND, (M.F.S.BLACK)
-
32160A32160-0743-46R FRAME-COMP, REAR, RIGHT HAND, (M.F.S.BLACK)FRAME-COMP, REAR, RIGHT HAND, (M.F.S.BLACK)
-
32160B32160-0747 FRAME-COMP, REARFRAME-COMP, REAR
-
32160C32160-0753-40R FRAME-COMP, MAIN, (G.B.GREEN)FRAME-COMP, MAIN, (G.B.GREEN)
-
3915639156-1896 PAD, 22X45PAD, 22X45
-
9204592045-1384 BEARING-BALL, SF07A17PX1V1BEARING-BALL, SF07A17PX1V1
-
9204992049-0022 SEAL-OIL, DS35X55X4SEAL-OIL, DS35X55X4
-
92049A92049-1382 SEAL-OIL, XMH 43 75 6.4JSEAL-OIL, XMH 43 75 6.4J
-
9215492154-0077 BOLT, SOCKET, 8X23BOLT, SOCKET, 8X23
-
92154A92154-0543 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
92154B92154-1556 BOLT, FLANGED, 10X223BOLT, FLANGED, 10X223
-
92154C92154-1557 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9220092200-0036 WASHERWASHER
-
92200A92200-0595 WASHER, 28.5X40X1.6WASHER, 28.5X40X1.6
-
9221092210-0095 NUT, 35MMNUT, 35MM
-
92210A92210-0096 NUT, 35MMNUT, 35MM
-
92210B92210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210C92210-1416 NUT, STEERING, 28MMNUT, STEERING, 28MM
