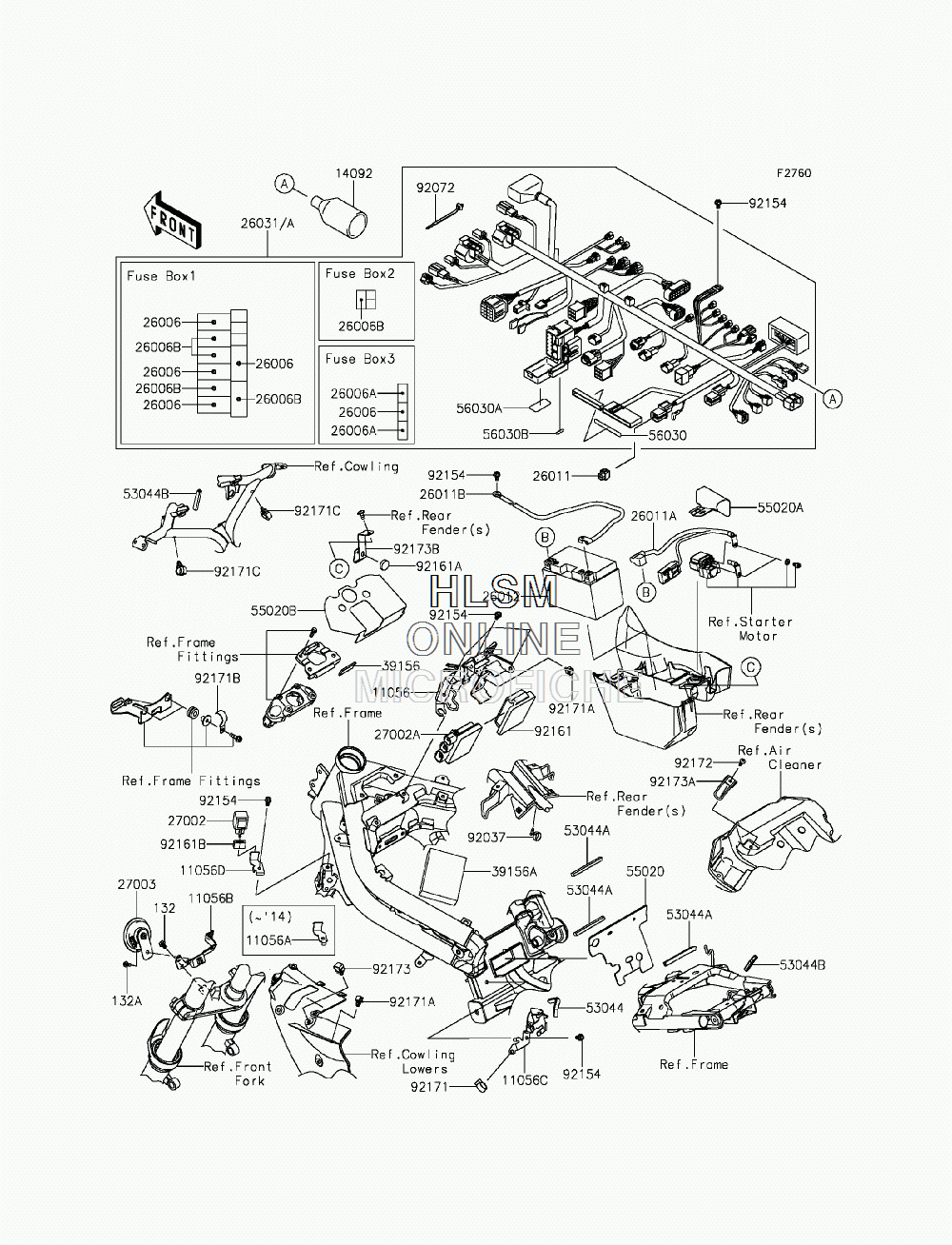

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 650 ABS (EX650FFF) - 2015 года выпуска`
-
№АртикулНазвание
-
1105611056-0806 BRACKET, RELAY-ASSYBRACKET, RELAY-ASSY
-
11056B11056-1821 BRACKET, HORNBRACKET, HORN
-
11056C11056-1888 BRACKET, PIVOT, UPP, LEFT HANDBRACKET, PIVOT, UPP, LEFT HAND
-
11056D11056-3791 BRACKET, SIGNAL RELAYBRACKET, SIGNAL RELAY
-
1409214092-0902 COVERCOVER
-
2600626006-0001 FUSE, MINI BLADE, 15A, BLUEFUSE, MINI BLADE, 15A, BLUE
-
26006A26006-0020 FUSE, MINI BLADE, 25A, NATURALFUSE, MINI BLADE, 25A, NATURAL
-
26006B26006-1078 FUSE, MINI BLADE, 10A, REDFUSE, MINI BLADE, 10A, RED
-
2601126011-0101 WIRE-LEAD, SENSOR CONNECTORWIRE-LEAD, SENSOR CONNECTOR
-
26011A26011-0710 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011B26011-0711 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
2601226012-0556 BATTERY, YT12A-BS, 12VBATTERY, YT12A-BS, 12V
-
2603126031-1460 HARNESS, MAIN (EXCEPT CALIF.)HARNESS, MAIN (EXCEPT CALIF.)
-
26031A26031-1462 HARNESS, MAIN (CALIF. ONLY)HARNESS, MAIN (CALIF. ONLY)
-
2700227002-0006 RELAY-ASSY, SIGNAL LAMPRELAY-ASSY, SIGNAL LAMP
-
27002A27002-0007 RELAY-ASSYRELAY-ASSY
-
2700327003-0065 HORNHORN
-
3915639156-0831 PAD, 20X40X3PAD, 20X40X3
-
39156A39156-0872 PAD, 100X80X30PAD, 100X80X30
-
5304453044-0018 TRIMTRIM
-
53044A53044-0556 TRIM, L=85TRIM, L=85
-
53044B53044-1324 TRIM, L=48TRIM, L=48
-
5502055020-0760 GUARD, AIR CLEANERGUARD, AIR CLEANER
-
55020A55020-0822 GUARD, MG. SWITCHGUARD, MG. SWITCH
-
55020B55020-0826 GUARD, FUSE BOXGUARD, FUSE BOX
-
5603056030-0400 LABEL, FUSE BOX3LABEL, FUSE BOX3
-
56030A56030-0705 LABEL, FUSE BOX1LABEL, FUSE BOX1
-
56030B56030-0706 LABEL, FUSE BOX2LABEL, FUSE BOX2
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9207292072-1414 BANDBAND
-
9215492154-1050 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9216192161-0203 DAMPER, RELAY BOXDAMPER, RELAY BOX
-
92161A92161-0336 DAMPERDAMPER
-
92161B92161-1443 DAMPER, 15X25X8.5DAMPER, 15X25X8.5
-
9217192171-0316 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171A92171-0640 CLAMPCLAMP
-
92171B92171-0652 CLAMP, L=60CLAMP, L=60
-
92171C92171-1415 CLAMP, 13MM DIA.CLAMP, 13MM DIA.
-
132132BA0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
132A132BB0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
9217292172-0742 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9217392173-0736 CLAMP, 12MM DIA.CLAMP, 12MM DIA.
-
92173A92173-0889 CLAMP, AIR CLEANERCLAMP, AIR CLEANER
-
92173B92173-0890 CLAMPCLAMP
