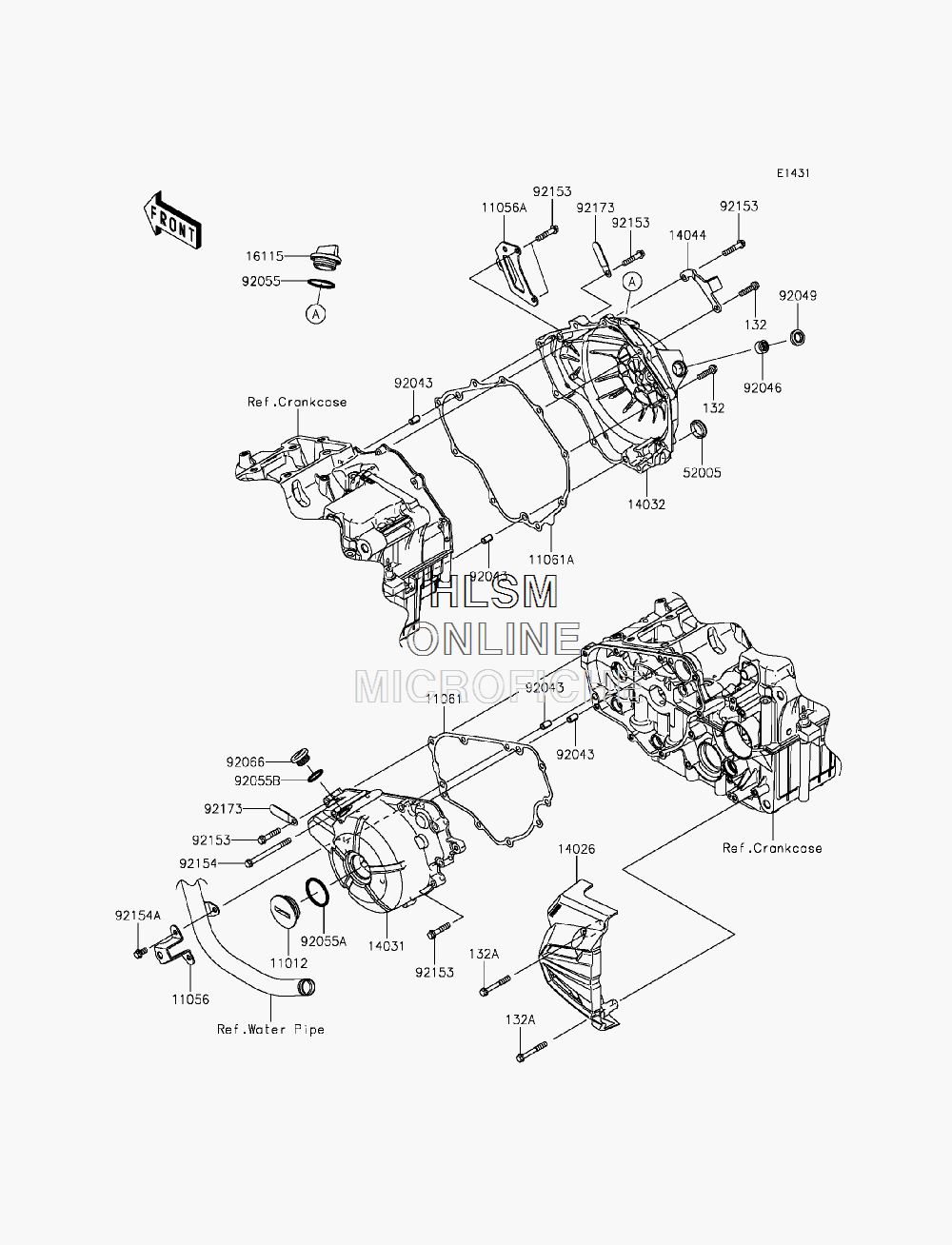

ENGINE COVER для Kawasaki NINJA 300 SE (EX300AFSA) - 2015 года выпуска`
-
№АртикулНазвание
-
132132BB0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
132A132BB0645 BOLT-FLANGED-SMALL,6X45BOLT-FLANGED-SMALL,6X45
-
1101211012-1362 CAPCAP
-
1105611056-1637 BRACKETBRACKET
-
11056A11056-1638 BRACKETBRACKET
-
1106111061-0793 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
11061A11061-0854 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
1402614026-0096 COVER-CHAINCOVER-CHAIN
-
1403114031-0562 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0579 COVER-CLUTCHCOVER-CLUTCH
-
1404414044-0049 HOLDER-CABLEHOLDER-CABLE
-
1611516115-1068 CAP-OIL FILLERCAP-OIL FILLER
-
5200552005-1009 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9204692046-0034 BEARING-NEEDLE,HK1210FMBEARING-NEEDLE,HK1210FM
-
9204992049-1560 SEAL-OILSEAL-OIL
-
9205592055-049 RING-O,31.5X2.6RING-O,31.5X2.6
-
92055A92055-0734 RING-O,39.4X3.1RING-O,39.4X3.1
-
92055B92055-1146 RING-O,20X2RING-O,20X2
-
9206692066-0748 PLUGPLUG
-
9215392153-0832 BOLT,6X30BOLT,6X30
-
9215492154-0960 BOLT,FLANGED-SMALL,6X75BOLT,FLANGED-SMALL,6X75
-
92154A92154-1140 BOLT,FLANGED,6X12BOLT,FLANGED,6X12
-
9217392173-0194 CLAMP,L=45CLAMP,L=45
