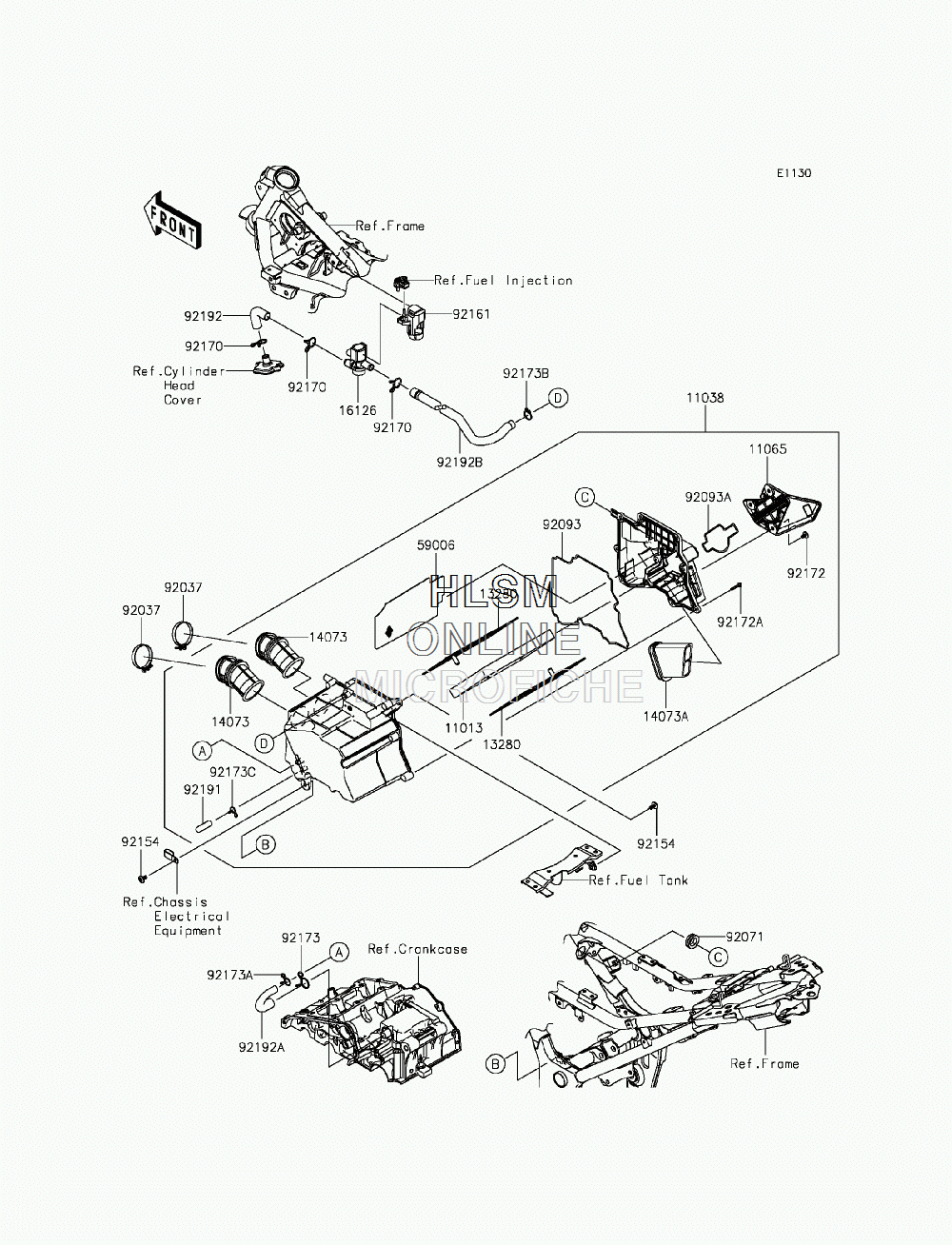

AIR CLEANER для Kawasaki NINJA 300 ABS SE (EX300BFSA) - 2015 года выпуска`
-
№АртикулНазвание
-
1101311013-0020 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1103811038-0035 CASE-ASSY-AIR FILTERCASE-ASSY-AIR FILTER
-
1106511065-0749 CAPCAP
-
1328013280-0226 HOLDER,ELEMENTHOLDER,ELEMENT
-
1407314073-0733 DUCT,THROTTLE BODYDUCT,THROTTLE BODY
-
14073A14073-0762 DUCT,INTAKEDUCT,INTAKE
-
1612616126-0039 VALVE,AIR CUTVALVE,AIR CUT
-
5900659006-0014 AREARESTER-FLAMEAREARESTER-FLAME
-
9203792037-1486 CLAMP,55MMCLAMP,55MM
-
9207192071-0709 GROMMETGROMMET
-
9209392093-0078 SEAL,CASE-AIR FILTERSEAL,CASE-AIR FILTER
-
92093A92093-0144 SEAL,CAPSEAL,CAP
-
9215492154-0951 BOLT,SOCKET,6X12BOLT,SOCKET,6X12
-
9216192161-1424 DAMPER,ACVDAMPER,ACV
-
9217092170-1017 CLAMPCLAMP
-
9217292172-0005 SCREW,6X10SCREW,6X10
-
92172A92172-0296 SCREW,TAPPING,5X25SCREW,TAPPING,5X25
-
9217392173-0190 CLAMP,20MMCLAMP,20MM
-
92173A92173-0192 CLAMP,14MMCLAMP,14MM
-
92173B92173-0193 CLAMP,18MMCLAMP,18MM
-
92173C92173-0198 CLAMP,11.6MMCLAMP,11.6MM
-
9219192191-1795 TUBE,8X12X40TUBE,8X12X40
-
9219292192-0902 TUBE,ACV-HEADTUBE,ACV-HEAD
-
92192A92192-1097 TUBE,BREATHERTUBE,BREATHER
-
92192B92192-1231 TUBE,ACV-A/CTUBE,ACV-A/C
