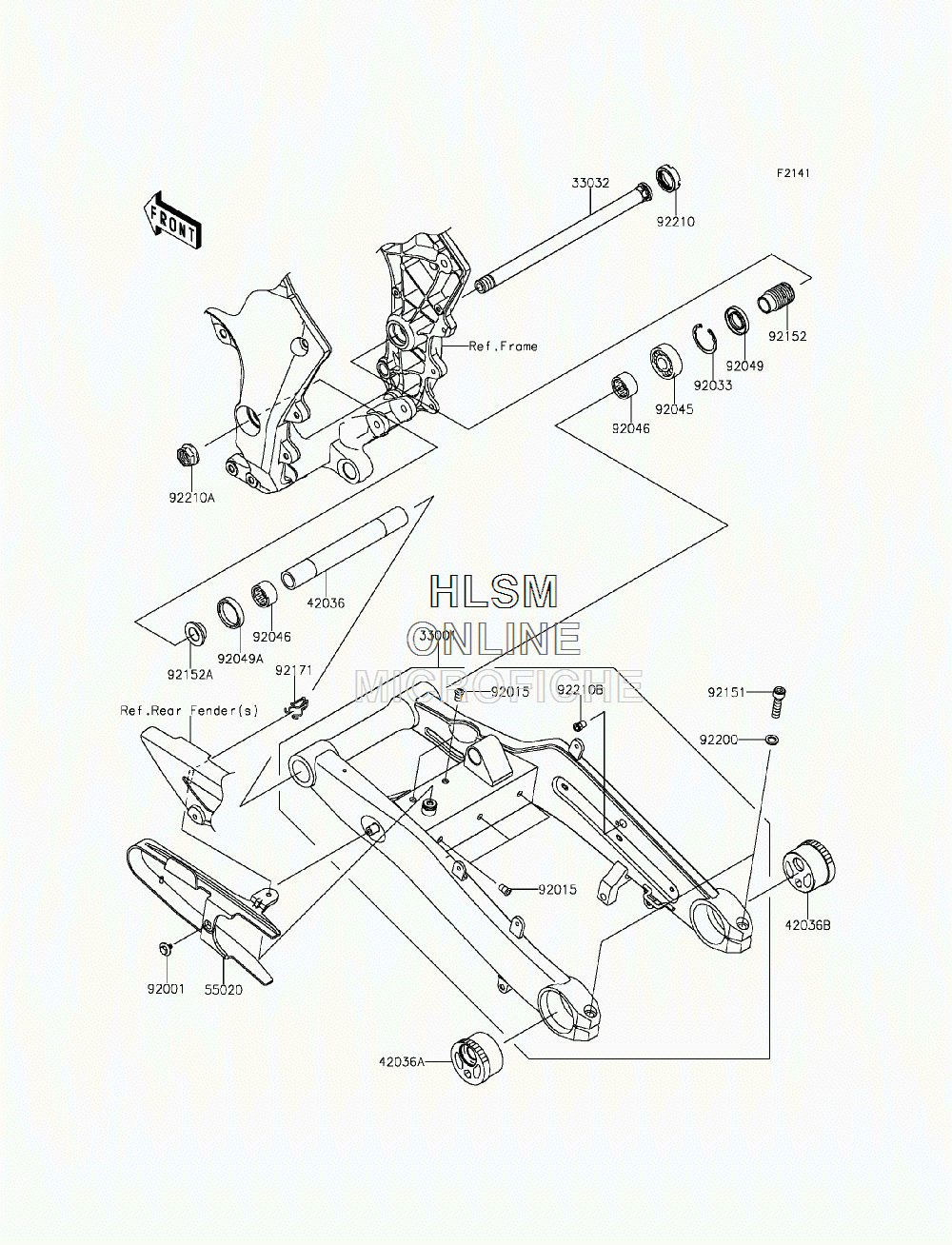

SUSPENSION - SWINGARM для Kawasaki NINJA 1000 ABS (ZX1000MFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 33001
    33001-0607-18R ARM-COMP-SWING, F.S.BLACK
    ARM-COMP-SWING, F.S.BLACK
  • 33032
    33032-0013 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 42036
    42036-0069 SLEEVE, 20.1X28X226
    SLEEVE, 20.1X28X226
  • 42036A
    42036-1153-KX SLEEVE, REAR AXLE, LEFT HAND, SILVER
    SLEEVE, REAR AXLE, LEFT HAND, SILVER
  • 42036B
    42036-1265-KX SLEEVE, REAR AXLE, RIGHT HAND, SILVER
    SLEEVE, REAR AXLE, RIGHT HAND, SILVER
  • 55020
    55020-0903 GUARD, CHAIN
    GUARD, CHAIN
  • 92001
    92001-1771 BOLT, 6X12
    BOLT, 6X12
  • 92015
    92015-1792 NUT, POP, 6MM, L=16.5
    NUT, POP, 6MM, L=16.5
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92045
    92045-0017 BEARING-BALL, 6004UL11
    BEARING-BALL, 6004UL11
  • 92046
    92046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17
    BEARING-NEEDLE, 7E-HVS 28X34X17
  • 92049
    92049-1314 SEAL-OIL, MHSA25X42X6
    SEAL-OIL, MHSA25X42X6
  • 92049A
    92049-1352 SEAL-OIL, MHSA25X34X7
    SEAL-OIL, MHSA25X34X7
  • 92151
    92151-1899 BOLT, SOCKET, 10X40
    BOLT, SOCKET, 10X40
  • 92152
    92152-0154 COLLAR, SWING ARM, L=47
    COLLAR, SWING ARM, L=47
  • 92152A
    92152-1234 COLLAR, SWING ARM, L=12.5
    COLLAR, SWING ARM, L=12.5
  • 92171
    92171-0907 CLAMP
    CLAMP
  • 92200
    92200-0531 WASHER, 10.5X18X2.0
    WASHER, 10.5X18X2.0
  • 92210
    92210-0134 NUT, 30MM
    NUT, 30MM
  • 92210A
    92210-0320 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92210B
    92210-1397 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
