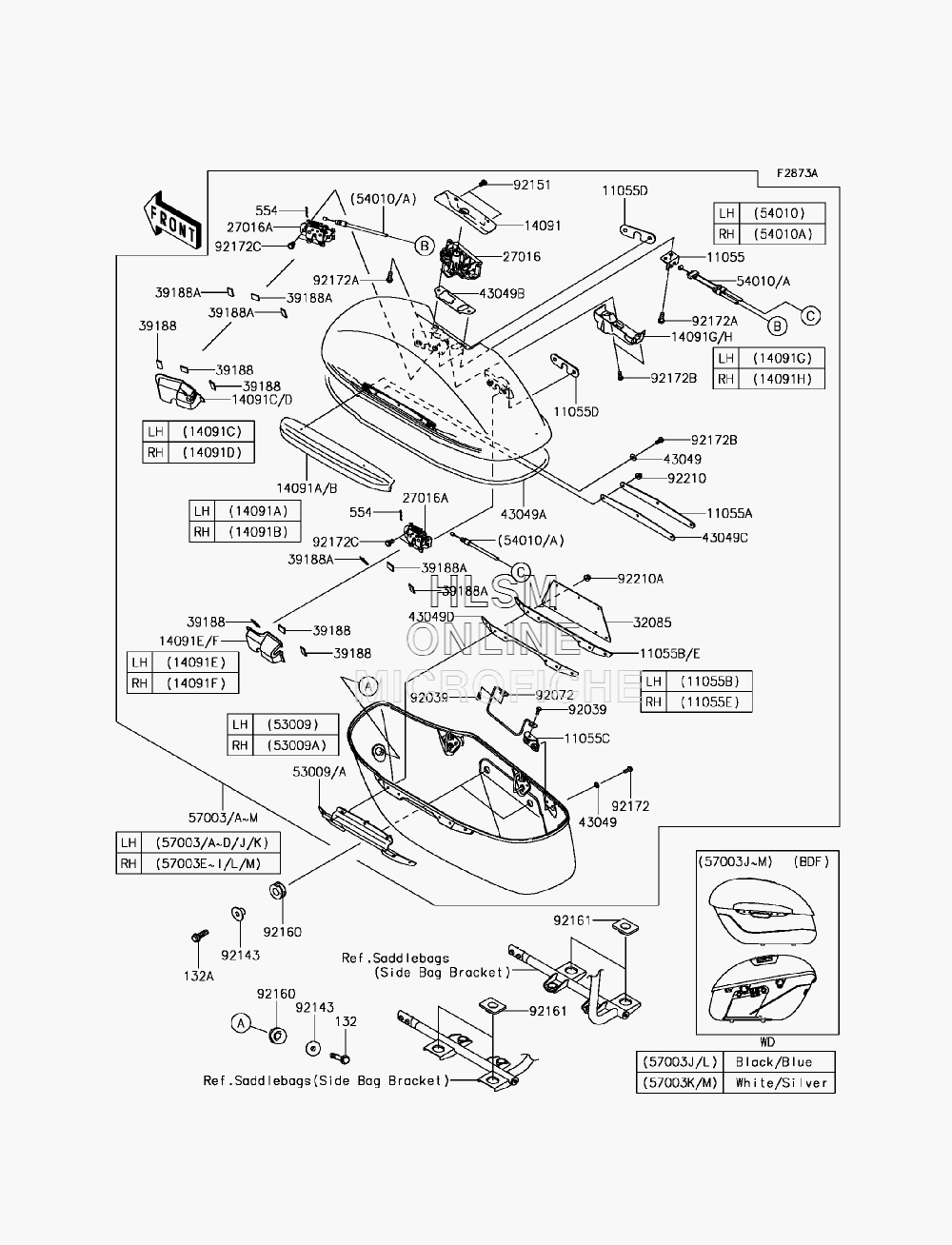

SADDLEBAGS (SIDE BAG) для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BEF) - 2014 года выпуска
-
№АртикулНазвание
-
1105511055-1910 BRACKETBRACKET
-
11055A11055-1911 BRACKETBRACKET
-
11055B11055-1912 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
11055C11055-1913 BRACKET, BELTBRACKET, BELT
-
11055D11055-1916 BRACKETBRACKET
-
11055E11055-1917 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1409114091-1667 COVER, PANNIER LOCKCOVER, PANNIER LOCK
-
14091A14091-1668 COVER, PANNIER HINGE, LEFT HANDCOVER, PANNIER HINGE, LEFT HAND
-
14091B14091-1669 COVER, PANNIER HINGE, RIGHT HANDCOVER, PANNIER HINGE, RIGHT HAND
-
14091C14091-1749 COVER, PANNIER LOCK, FRONT, LEFT HANDCOVER, PANNIER LOCK, FRONT, LEFT HAND
-
14091D14091-1750 COVER, PANNIER LOCK, FRONT, RIGHT HANDCOVER, PANNIER LOCK, FRONT, RIGHT HAND
-
14091E14091-1751 COVER, PANNIER LOCK, REAR, LEFT HANDCOVER, PANNIER LOCK, REAR, LEFT HAND
-
14091F14091-1752 COVER, PANNIER LOCK, REAR, RIGHT HANDCOVER, PANNIER LOCK, REAR, RIGHT HAND
-
14091G14091-1753 COVER, PANNIER LOCK, CENTER, LEFT HANDCOVER, PANNIER LOCK, CENTER, LEFT HAND
-
14091H14091-1754 COVER, PANNIER LOCK, CENTER, RIGHT HANDCOVER, PANNIER LOCK, CENTER, RIGHT HAND
-
2701627016-0026 LOCK-ASSY, PANNIER CASELOCK-ASSY, PANNIER CASE
-
27016A27016-0029 LOCK-ASSY, PANNIER CASE, STRIKERLOCK-ASSY, PANNIER CASE, STRIKER
-
3208532085-0187 STOPPERSTOPPER
-
3918839188-0014 TAPE, 10X15TAPE, 10X15
-
39188A39188-0015 TAPE, 15X10TAPE, 15X10
-
4304943049-0019 PACKINGPACKING
-
43049A43049-0022 PACKINGPACKING
-
43049B43049-0023 PACKINGPACKING
-
43049C43049-0024 PACKINGPACKING
-
43049D43049-0026 PACKINGPACKING
-
5300953009-0029 HINGE, LEFT HANDHINGE, LEFT HAND
-
53009A53009-0030 HINGE, RIGHT HANDHINGE, RIGHT HAND
-
5401054010-0113 CABLE, PANNIER CASE, LEFT HANDCABLE, PANNIER CASE, LEFT HAND
-
54010A54010-0114 CABLE, PANNIER CASE, RIGHT HANDCABLE, PANNIER CASE, RIGHT HAND
-
5700357003-0091-46F BAG, LEFT HAND, BODY (GRAY) + COVER (RED) (FOR 46E)BAG, LEFT HAND, BODY (GRAY) + COVER (RED) (FOR 46E)
-
57003A57003-0091-46H BAG, LEFT HAND, BODY (BLACK) + COVER (GRAY) (FOR 46B)BAG, LEFT HAND, BODY (BLACK) + COVER (GRAY) (FOR 46B)
-
57003E57003-0092-46F BAG, RIGHT HAND, BODY (GRAY) + COVER (RED) (FOR 46E)BAG, RIGHT HAND, BODY (GRAY) + COVER (RED) (FOR 46E)
-
57003F57003-0092-46H BAG, RIGHT HAND, BODY (BLACK) + COVER (GRAY) (FOR 46B)BAG, RIGHT HAND, BODY (BLACK) + COVER (GRAY) (FOR 46B)
-
132132BA0860 BOLT-FLANGED-SMALL, 8X60BOLT-FLANGED-SMALL, 8X60
-
132A132BB0825 BOLT-FLANGED-SMALL, 8X25BOLT-FLANGED-SMALL, 8X25
-
554554DA0500 PIN-SNAPPIN-SNAP
-
9203992039-0063 RIVETRIVET
-
9207292072-0140 BAND, L=320MMBAND, L=320MM
-
9214392143-1450 COLLARCOLLAR
-
9215192151-1449 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9216092160-1012 DAMPERDAMPER
-
9216192161-0607 DAMPERDAMPER
-
9217292172-0450 SCREWSCREW
-
92172A92172-0452 SCREW, 6X16SCREW, 6X16
-
92172B92172-0453 SCREW, TAPPING, 5X12SCREW, TAPPING, 5X12
-
92172C92172-0454 SCREW, 6X16SCREW, 6X16
-
9221092210-0434 NUT, CAP, 4MMNUT, CAP, 4MM
-
92210A92210-0577 NUTNUT
