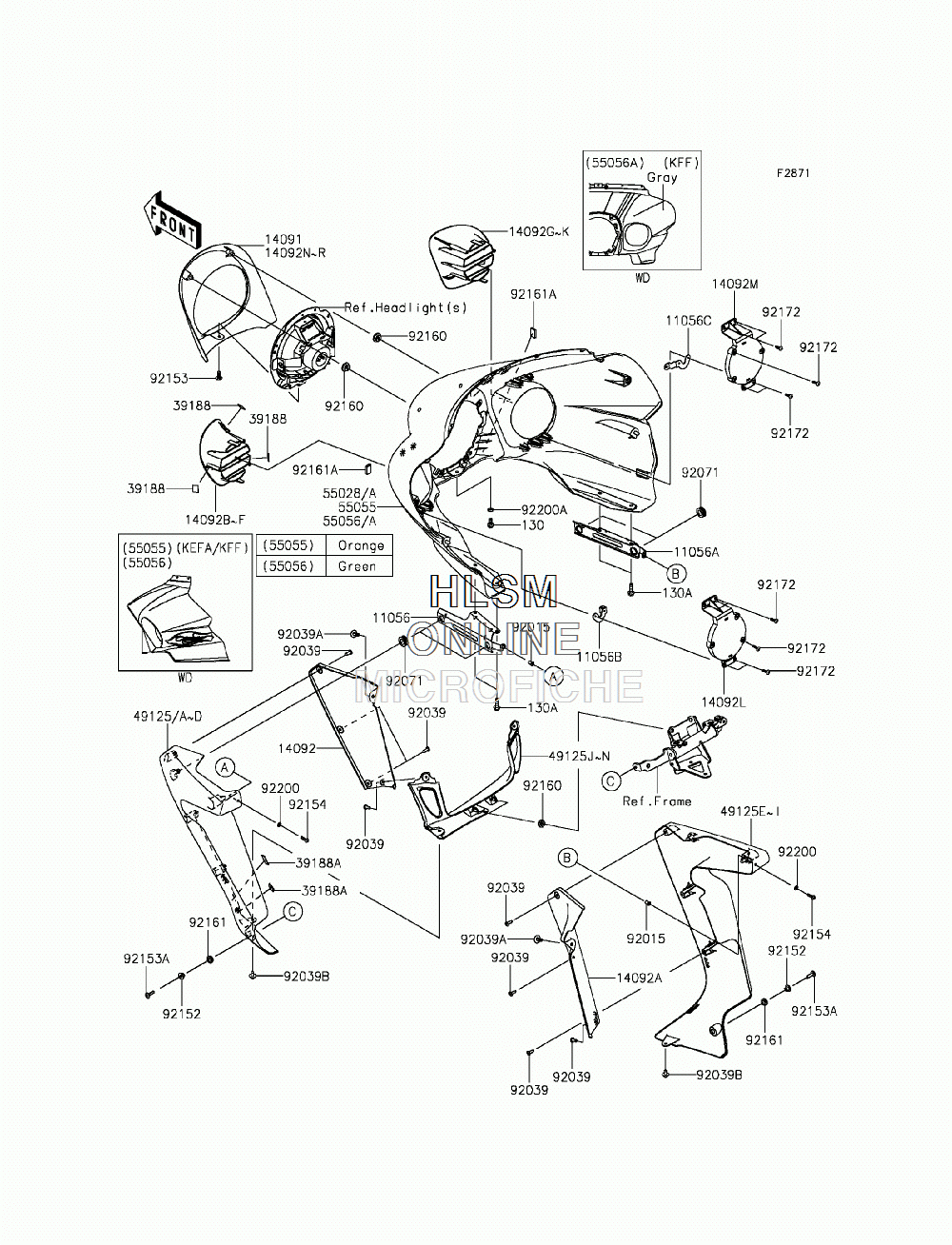

COWLING - OUTER для Kawasaki VULCAN 1700 VAQUERO ABS (VN1700KEF) - 2014 года выпуска
-
№АртикулНазвание
-
1105611056-0344 BRACKET, SHROUD, LEFT HANDBRACKET, SHROUD, LEFT HAND
-
11056A11056-0345 BRACKET, SHROUD, RIGHT HANDBRACKET, SHROUD, RIGHT HAND
-
11056B11056-1145 BRACKET, SUB LAMP, LEFT HAND, LOWERBRACKET, SUB LAMP, LEFT HAND, LOWER
-
11056C11056-1146 BRACKET, SUB LAMP, RIGHT HAND, LOWERBRACKET, SUB LAMP, RIGHT HAND, LOWER
-
1409214092-0204 COVER, SHROUD, INNNER, LEFT HANDCOVER, SHROUD, INNNER, LEFT HAND
-
14092A14092-0205 COVER, SHROUD, INNNER, RIGHT HANDCOVER, SHROUD, INNNER, RIGHT HAND
-
14092B14092-0209-H8 COVER, SUB LAMP, LEFT HAND, (EBONY)COVER, SUB LAMP, LEFT HAND, (EBONY)
-
14092G14092-0210-H8 COVER, SUB LAMP, RIGHT HAND, (EBONY)COVER, SUB LAMP, RIGHT HAND, (EBONY)
-
14092L14092-0211 COVER, SUB LAMP, INNNER, LEFT HANDCOVER, SUB LAMP, INNNER, LEFT HAND
-
14092M14092-0212 COVER, SUB LAMP, INNNER, RIGHT HANDCOVER, SUB LAMP, INNNER, RIGHT HAND
-
14092R14092-0770-660 COVER, HEAD LAMP, (M.S.BLACK)COVER, HEAD LAMP, (M.S.BLACK)
-
3918839188-0552 TAPETAPE
-
39188A39188-0553 TAPETAPE
-
49125C49125-0063-660 SHROUD, OUTER, LEFT HAND, (M.S.BLACK)SHROUD, OUTER, LEFT HAND, (M.S.BLACK)
-
49125H49125-0064-660 SHROUD, OUTER, RIGHT HAND, (M.S.BLACK)SHROUD, OUTER, RIGHT HAND, (M.S.BLACK)
-
49125M49125-0065-660 SHROUD, LOWER, CENTER, (M.S.BLACK)SHROUD, LOWER, CENTER, (M.S.BLACK)
-
130130AA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
5502855028-0401-660 COWLING, UPPER, OUTER, (M.S.BLACK)COWLING, UPPER, OUTER, (M.S.BLACK)
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203992039-0068 RIVETRIVET
-
92039A92039-0086 RIVETRIVET
-
92039B92039-1289 RIVETRIVET
-
9207192071-1131 GROMMETGROMMET
-
9215292152-0295 COLLARCOLLAR
-
9215392153-0817 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92153A92153-1356 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
9215492154-0210 BOLT, SOCKET, 5X20BOLT, SOCKET, 5X20
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0266 DAMPERDAMPER
-
92161A92161-0717 DAMPERDAMPER
-
9217292172-0382 SCREW, TAPPING, 5X20SCREW, TAPPING, 5X20
-
9220092200-0006 WASHER, NYLONE, 5.3X11.5X0.5WASHER, NYLONE, 5.3X11.5X0.5
-
92200A92200-0511 WASHER, 6.5X12X2WASHER, 6.5X12X2
