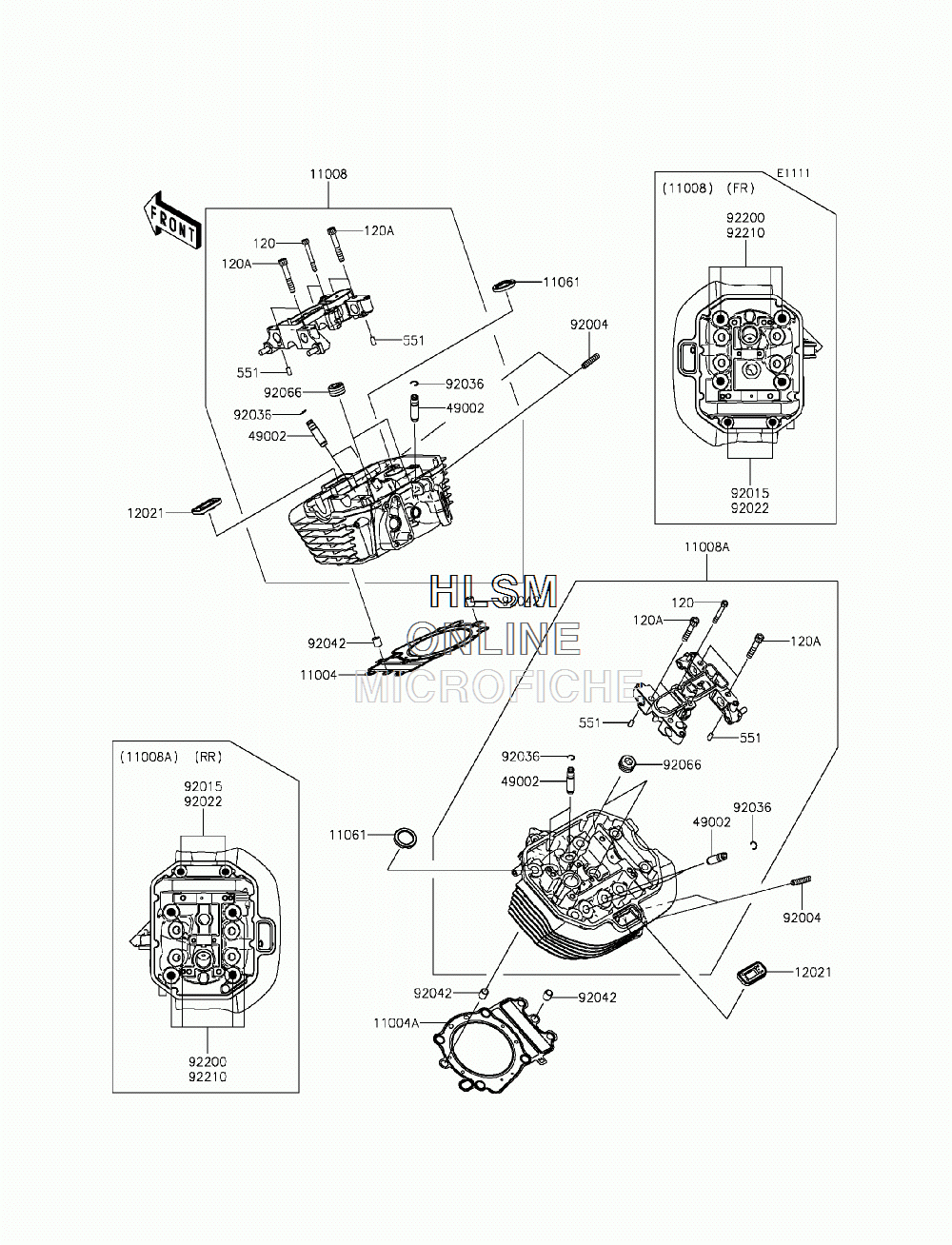

CYLINDER HEAD для Kawasaki VULCAN 1700 VAQUERO ABS SE (VN1700KEFA) - 2014 года выпуска

  • №
    Артикул
    Название
  • 120
    120Q0650 BOLT-SOCKET, 6X50
    BOLT-SOCKET, 6X50
  • 120A
    120Q0850 BOLT-SOCKET, 8X50
    BOLT-SOCKET, 8X50
  • 551
    551A0612 PIN-DOWEL, 6X12
    PIN-DOWEL, 6X12
  • 11004
    11004-0076 GASKET-HEAD, FRONT
    GASKET-HEAD, FRONT
  • 11004A
    11004-0077 GASKET-HEAD, REAR
    GASKET-HEAD, REAR
  • 11008
    11008-0187 HEAD-COMP-CYLINDER, FRONT
    HEAD-COMP-CYLINDER, FRONT
  • 11008A
    11008-0188 HEAD-COMP-CYLINDER, REAR
    HEAD-COMP-CYLINDER, REAR
  • 11061
    11061-0409 GASKET, PLUG HOLE
    GASKET, PLUG HOLE
  • 12021
    12021-0017 VALVE-ASSY-REED
    VALVE-ASSY-REED
  • 49002
    49002-0707 GUIDE-VALVE
    GUIDE-VALVE
  • 92004
    92004-0046 STUD, 8X20
    STUD, 8X20
  • 92015
    92015-077 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92022
    92022-3742 WASHER, 10.2X20X1.5
    WASHER, 10.2X20X1.5
  • 92036
    92036-023 RING-SNAP, VALVE GUIDE
    RING-SNAP, VALVE GUIDE
  • 92042
    92042-031 PIN, DOWEL, 12X14
    PIN, DOWEL, 12X14
  • 92066
    92066-0002 PLUG, PT1/2X12.5
    PLUG, PT1/2X12.5
  • 92200
    92200-0422 WASHER, 12.3X25X3.2
    WASHER, 12.3X25X3.2
  • 92210
    92210-0546 NUT, 12MM
    NUT, 12MM
