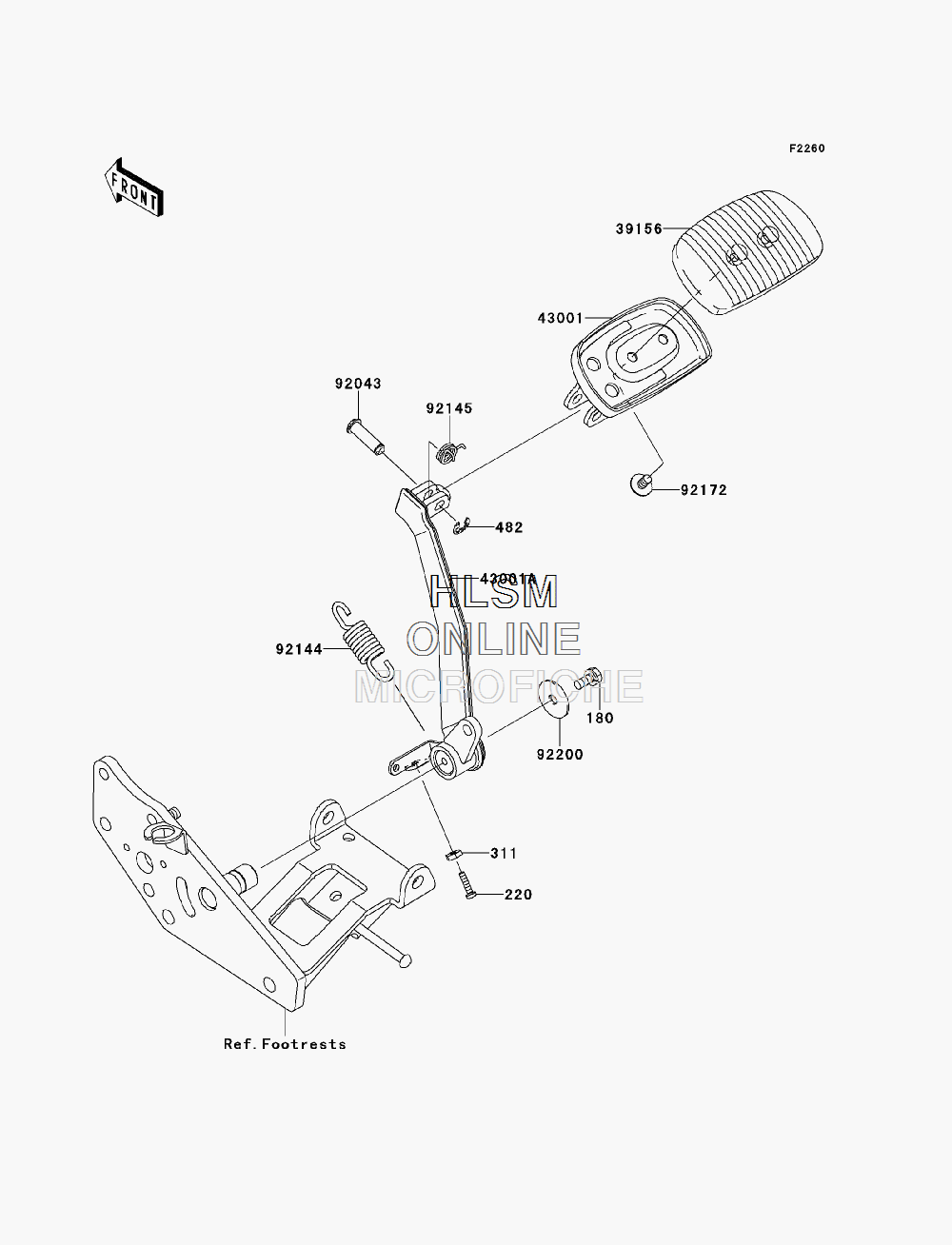

BRAKE PEDAL W/ TORQUE LINK для Kawasaki VULCAN 1700 NOMAD ABS (VN1700DEFA) - 2014 года выпуска`
-
№АртикулНазвание
-
180180BA0614 BOLT-UPSET-WS, 6X14BOLT-UPSET-WS, 6X14
-
220220AB0416 SCREW-PAN-CROS, 4X16SCREW-PAN-CROS, 4X16
-
311311AB0400 NUT-HEXNUT-HEX
-
482482EA7000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
3915639156-0045 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4300143001-0023 LEVER-BRAKELEVER-BRAKE
-
43001A43001-0102 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
9204392043-0047 PIN, 8X24.5PIN, 8X24.5
-
9214492144-1169 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9214592145-0168 SPRINGSPRING
-
9217292172-0098 SCREW, 6X10SCREW, 6X10
-
9220092200-0279 WASHER, 7X28X1.6WASHER, 7X28X1.6
