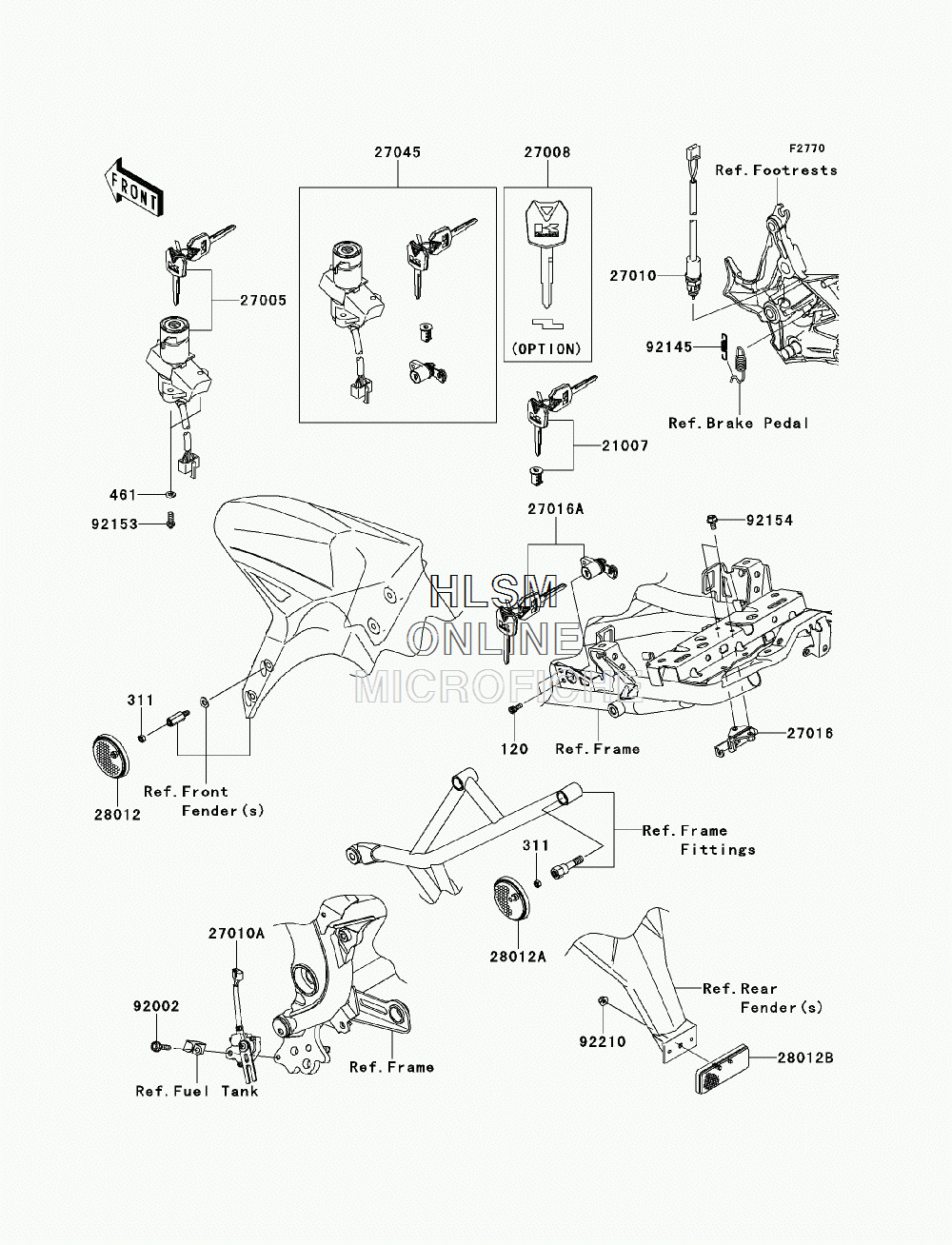

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VERSYS ABS (KLE650DEF) - 2014 года выпуска
-
№АртикулНазвание
-
120120CB0512 BOLT-SOCKET, 5X12BOLT-SOCKET, 5X12
-
311311AB0500 NUT-HEXNUT-HEX
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
2100721007-5057 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-5141 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0030 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0095 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-0097 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-0008 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5309 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704527045-5360 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9200292002-1582 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9214592145-0091 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215392153-0967 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9215492154-1050 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
