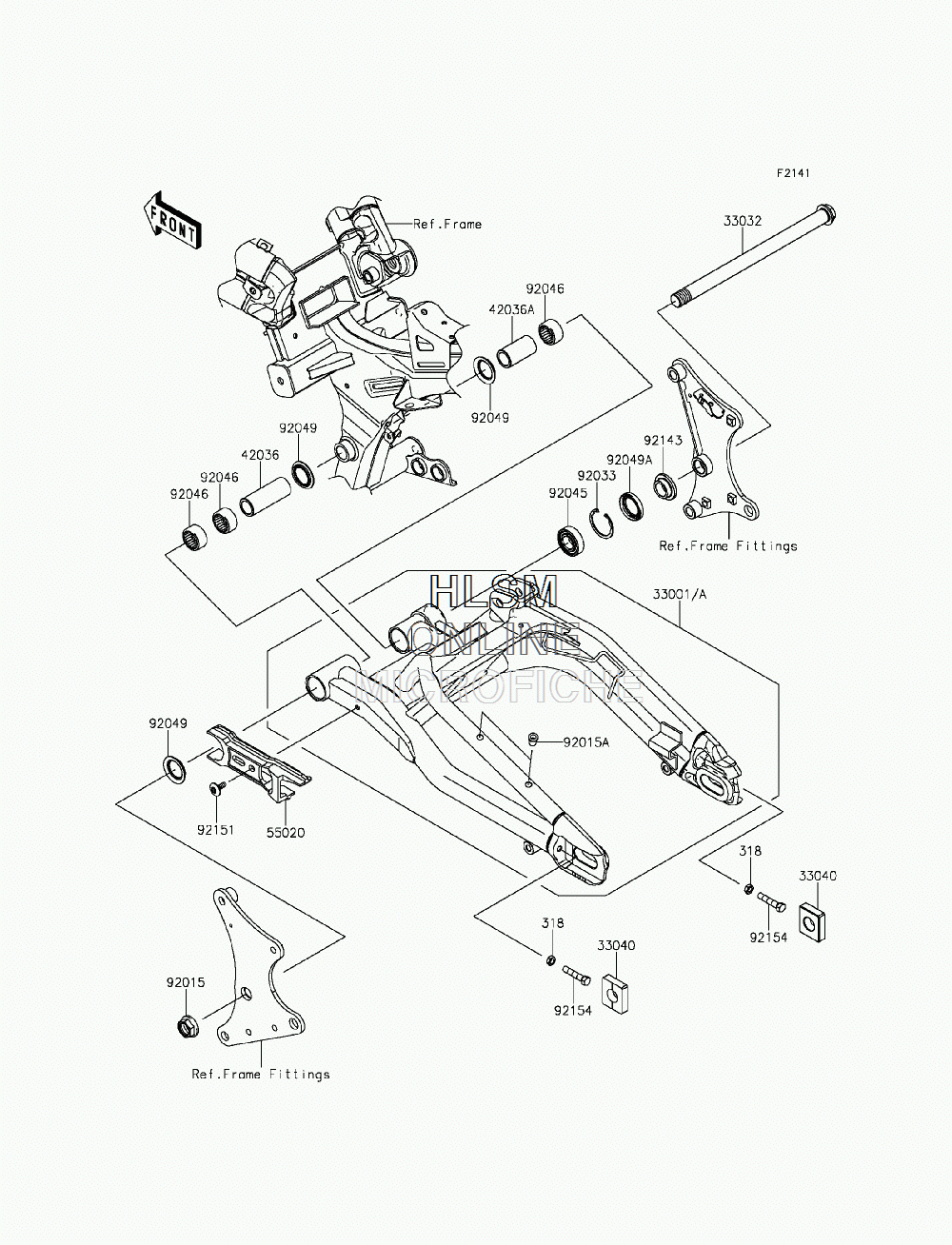

SUSPENSION - SWINGARM для Kawasaki NINJA 650 ABS (EX650FEF) - 2014 года выпуска`
-
№АртикулНазвание
-
318318BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
3300133001-0586-10 ARM-COMP-SWING, BLACKARM-COMP-SWING, BLACK
-
3303233032-1142 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-1109 ADJUSTER-CHAINADJUSTER-CHAIN
-
4203642036-0706 SLEEVE, LEFT HAND, 20.1X28X75.8SLEEVE, LEFT HAND, 20.1X28X75.8
-
42036A42036-0707 SLEEVE, RIGHT HAND, 20.1X28X52.3SLEEVE, RIGHT HAND, 20.1X28X52.3
-
5502055020-0722 GUARD, CHAINGUARD, CHAIN
-
9201592015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
92015A92015-1759 NUT, POP, 6MMNUT, POP, 6MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-0017 BEARING-BALL, 6004UL11BEARING-BALL, 6004UL11
-
9204692046-1202 BEARING-NEEDLE, BM2824BEARING-NEEDLE, BM2824
-
9204992049-0132 SEAL-OILSEAL-OIL
-
92049A92049-0138 SEAL-OILSEAL-OIL
-
9214392143-1727 COLLAR, SWING ARM, RIGHT HAND, L=12.5COLLAR, SWING ARM, RIGHT HAND, L=12.5
-
9215192151-1149 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9215492154-0837 BOLT, 8X40BOLT, 8X40
