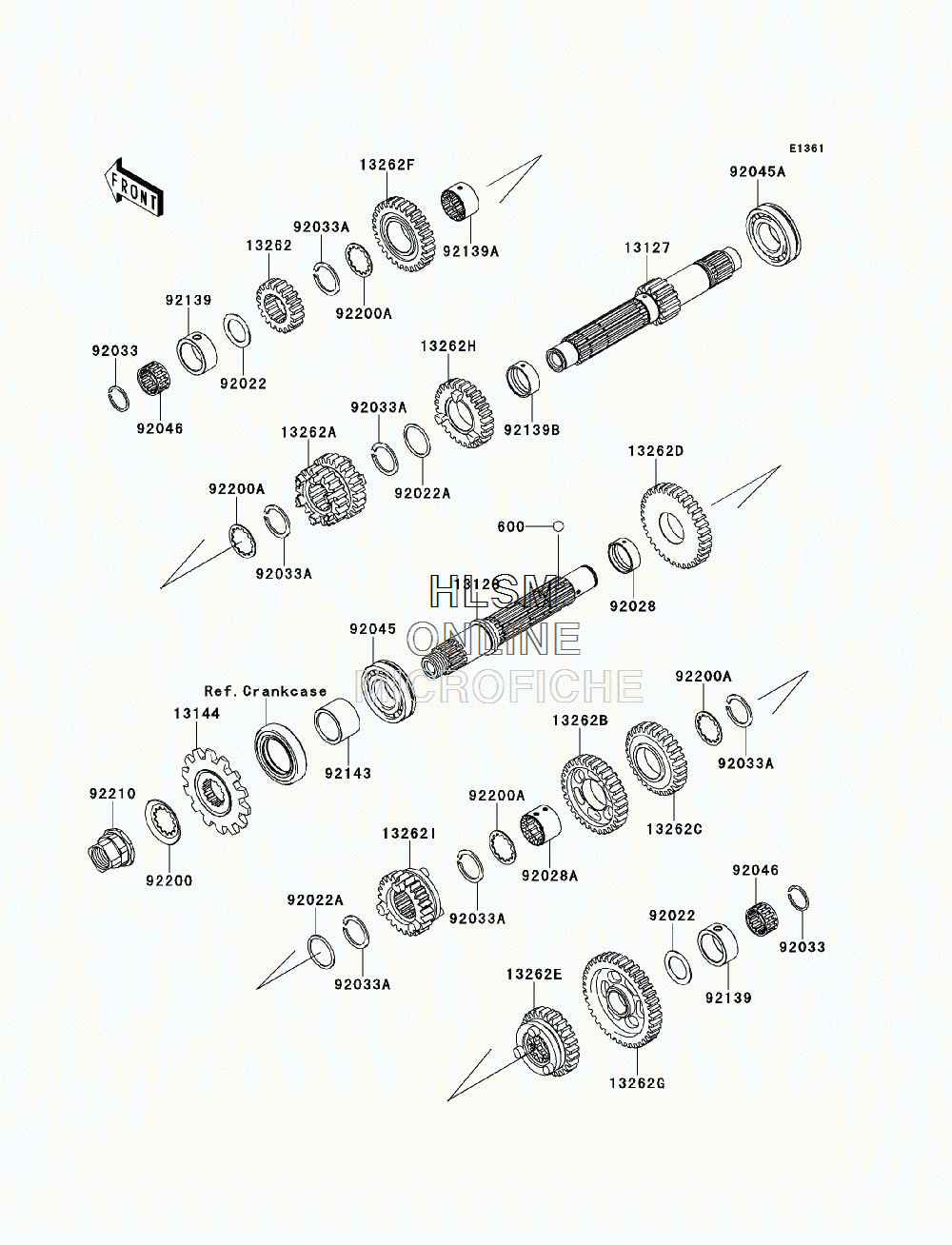

TRANSMISSION для Kawasaki NINJA 300 (EX300AEFA) - 2014 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL-STEEL, 5/32BALL-STEEL, 5/32
-
1312713127-0645 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0037 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0561 SPROCKET-OUTPUT, 14TSPROCKET-OUTPUT, 14T
-
1326213262-0461 GEAR, INPUT 2ND, 19TGEAR, INPUT 2ND, 19T
-
13262A13262-0464 GEAR, INPUT 3RD & 4TH, 22T & 25TGEAR, INPUT 3RD & 4TH, 22T & 25T
-
13262B13262-0466 GEAR, OUTPUT 3RD, 31TGEAR, OUTPUT 3RD, 31T
-
13262C13262-0467 GEAR, OUTPUT 4TH, 29TGEAR, OUTPUT 4TH, 29T
-
13262D13262-0468 GEAR, OUTPUT 2ND, 34TGEAR, OUTPUT 2ND, 34T
-
13262E13262-0470 GEAR, OUTPUT 5TH, 27TGEAR, OUTPUT 5TH, 27T
-
13262F13262-0920 GEAR, INPUT TOP, 28TGEAR, INPUT TOP, 28T
-
13262G13262-0921 GEAR, OUTPUT LOW, 38TGEAR, OUTPUT LOW, 38T
-
13262H13262-0922 GEAR, INPUT 5TH, 27TGEAR, INPUT 5TH, 27T
-
13262I13262-0923 GEAR, OUTPUT TOP, 24TGEAR, OUTPUT TOP, 24T
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
92022A92022-161 WASHER, 25.3X30X1WASHER, 25.3X30X1
-
9202892028-1564 BUSHING, 9.4X25X28BUSHING, 9.4X25X28
-
92028A92028-1858 BUSHING, OUTPUT 3RD & 4TH GEARBUSHING, OUTPUT 3RD & 4TH GEAR
-
9203392033-015 RING-SNAP, 20MMRING-SNAP, 20MM
-
92033A92033-026 RING-SNAP, 24MMRING-SNAP, 24MM
-
9204592045-0735 BEARING-BALL, 6TM-6205NX3BEARING-BALL, 6TM-6205NX3
-
92045A92045-1013 BEARING-BALL, #6205NX3BEARING-BALL, #6205NX3
-
9204692046-0607 BEARING-NEEDLE, 20X25X12.8BEARING-NEEDLE, 20X25X12.8
-
9213992139-0293 BUSHING, 25X33X14BUSHING, 25X33X14
-
92139A92139-0781 BUSHING, 26X28X16.6BUSHING, 26X28X16.6
-
92139B92139-0793 BUSHING, 25X28X10.4BUSHING, 25X28X10.4
-
9214392143-1968 COLLAR, SPROCKETCOLLAR, SPROCKET
-
9220092200-0851 WASHERWASHER
-
92200A92200-1389 WASHERWASHER
-
9221092210-0605 NUT, M20NUT, M20
