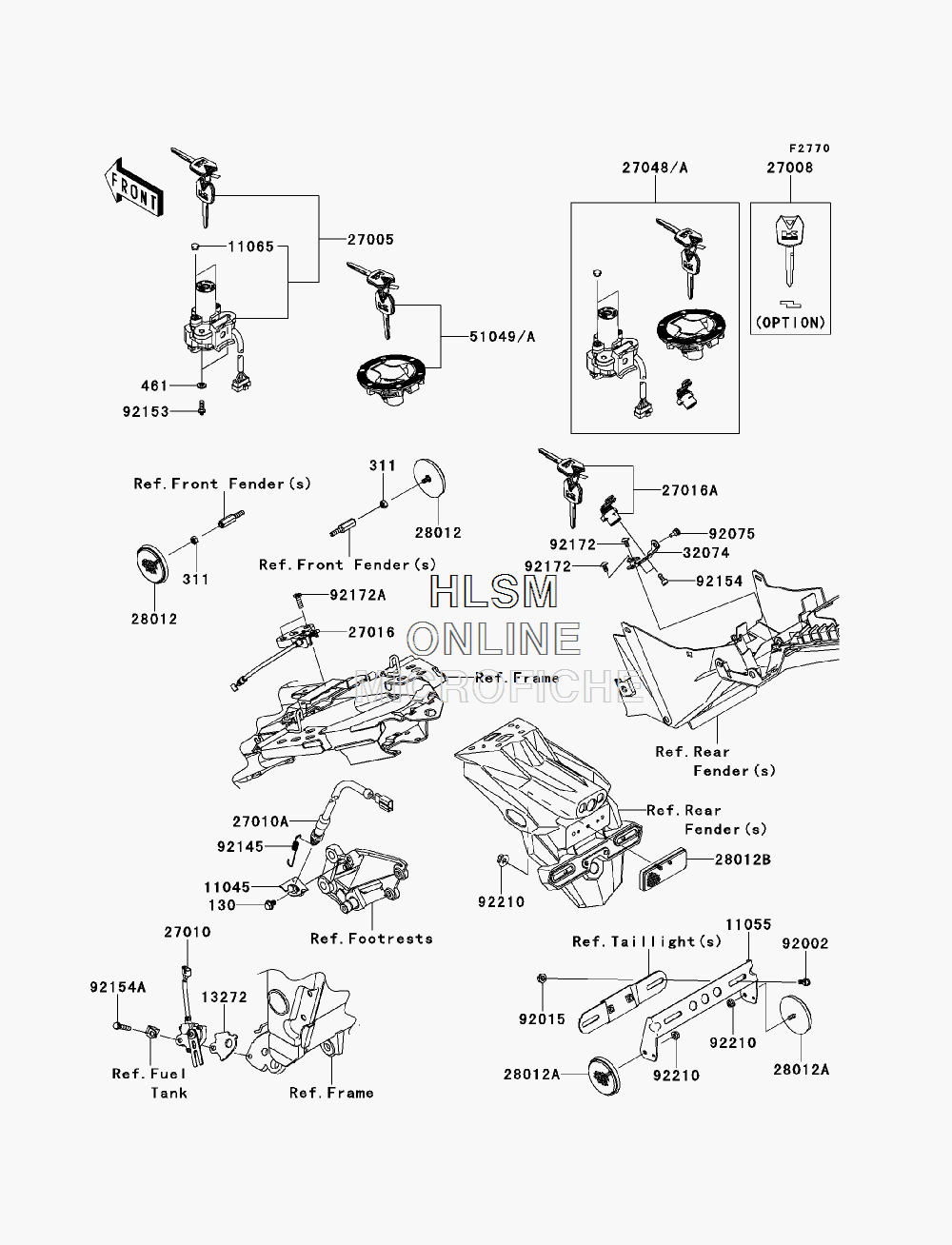

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA 300 ABS (EX300BEF) - 2014 года выпуска
-
№АртикулНазвание
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
311311AB0500 NUT-HEXNUT-HEX
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
1104511045-1641 BRACKET, REAR BRAKE SWITCHBRACKET, REAR BRAKE SWITCH
-
1105511055-1092 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1106511065-0708 CAP, IGNITION SWITCHCAP, IGNITION SWITCH
-
1327213272-1330 PLATEPLATE
-
2700527005-5144 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0053 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0097 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-0726 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-0075 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5378 LOCK-ASSYLOCK-ASSY
-
2704827048-5008 SWITCH-ASSY (EXCEPT CALIF.)SWITCH-ASSY (EXCEPT CALIF.)
-
27048A27048-5010 SWITCH-ASSY (CALIF. ONLY)SWITCH-ASSY (CALIF. ONLY)
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
3207432074-0018 BRACKET-LOCKBRACKET-LOCK
-
5104951049-5005 CAP-TANK, FUEL (CALIF. ONLY)CAP-TANK, FUEL (CALIF. ONLY)
-
51049A51049-5007 CAP-TANK, FUEL (EXCEPT CALIF.)CAP-TANK, FUEL (EXCEPT CALIF.)
-
9200292002-1132 BOLT, 6X12BOLT, 6X12
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9207592075-1808 DAMPERDAMPER
-
9214592145-0683 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
9215392153-0967 BOLT, TORX, 6X16BOLT, TORX, 6X16
-
9215492154-0933 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
92154A92154-1040 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
9217292172-0262 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
92172A92172-0786 SCREW, 6X20SCREW, 6X20
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
