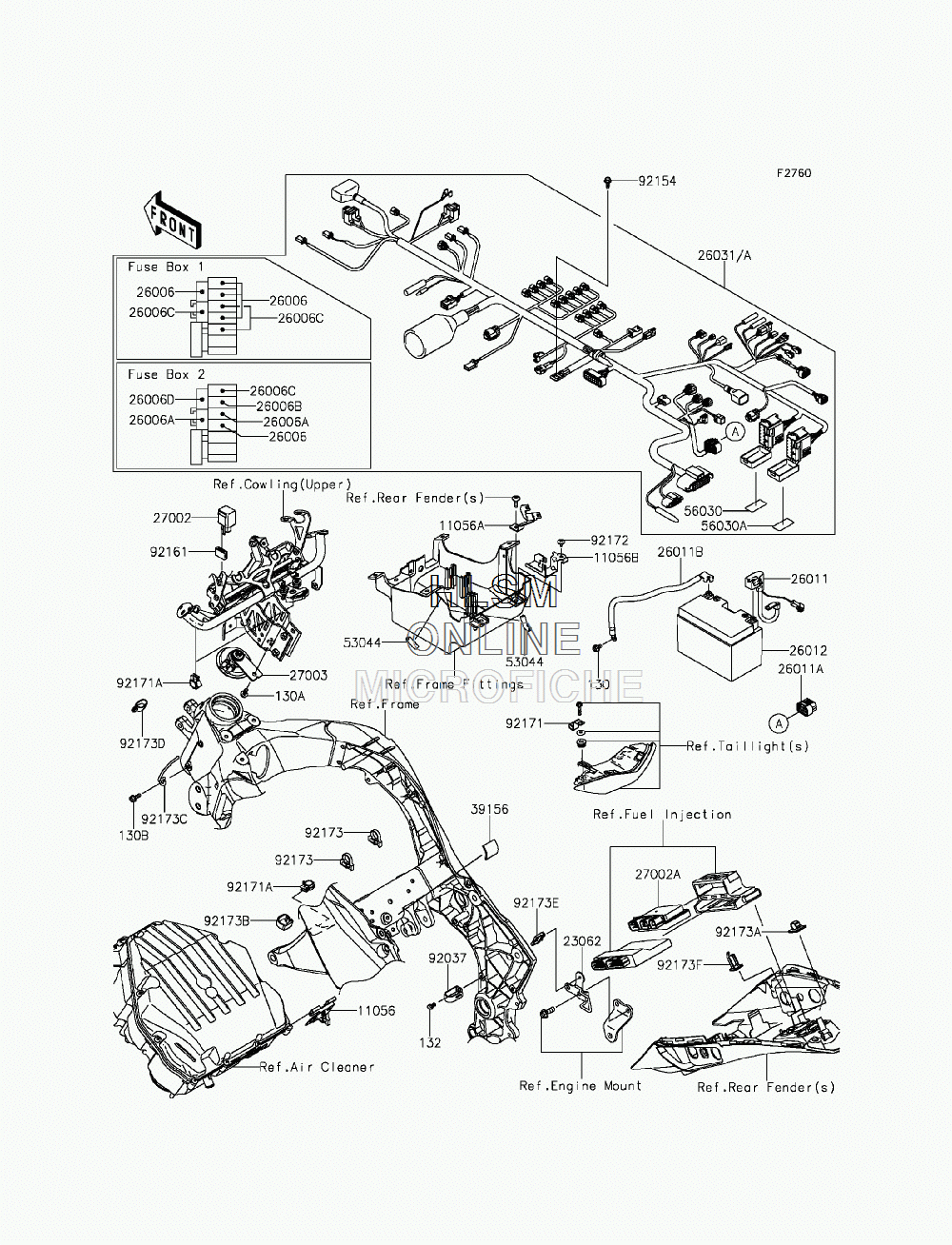

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 1000 ABS (ZX1000MEF) - 2014 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130BB0614 BOLT-FLANGED, 6X14
    BOLT-FLANGED, 6X14
  • 130B
    130BB0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 11056
    11056-2434 BRACKET, SPEED SENSOR
    BRACKET, SPEED SENSOR
  • 11056A
    11056-2992 BRACKET, REAR SIGNAL
    BRACKET, REAR SIGNAL
  • 11056B
    11056-3924 BRACKET, BATTERY(+)
    BRACKET, BATTERY(+)
  • 23062
    23062-0811 BRACKET-COMP, CABLE GUIDE
    BRACKET-COMP, CABLE GUIDE
  • 26006
    26006-0001 FUSE, MINI BLADE, 15A, BLUE
    FUSE, MINI BLADE, 15A, BLUE
  • 26006A
    26006-0020 FUSE, MINI BLADE, 25A, NATURAL
    FUSE, MINI BLADE, 25A, NATURAL
  • 26006B
    26006-0052 FUSE, MINI BLADE, 2A, GRAY
    FUSE, MINI BLADE, 2A, GRAY
  • 26006C
    26006-0055 FUSE, MINI BLADE, 7.5A, BROWN
    FUSE, MINI BLADE, 7.5A, BROWN
  • 26006D
    26006-1080 FUSE, MINI BLADE, 30A, GREEN
    FUSE, MINI BLADE, 30A, GREEN
  • 26011
    26011-0252 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26011A
    26011-0275 WIRE-LEAD, CONNECTOR COVER
    WIRE-LEAD, CONNECTOR COVER
  • 26011B
    26011-0822 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26012
    26012-0556 BATTERY, YT12A-BS, 12V
    BATTERY, YT12A-BS, 12V
  • 26031
    26031-1704 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 26031A
    26031-1705 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 27002
    27002-0006 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27002A
    27002-0007 RELAY-ASSY
    RELAY-ASSY
  • 27003
    27003-0075 HORN
    HORN
  • 39156
    39156-1766 PAD, 30X30X3
    PAD, 30X30X3
  • 53044
    53044-0001 TRIM, L=30
    TRIM, L=30
  • 56030
    56030-0830 LABEL, FUSE BOX1
    LABEL, FUSE BOX1
  • 56030A
    56030-0832 LABEL, FUSE BOX2
    LABEL, FUSE BOX2
  • 92037
    92037-2014 CLAMP, CABLE, STEEL SHEET
    CLAMP, CABLE, STEEL SHEET
  • 92154
    92154-0551 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 92161
    92161-0283 DAMPER, SIGNAL RELAY
    DAMPER, SIGNAL RELAY
  • 92171
    92171-0652 CLAMP, L=60
    CLAMP, L=60
  • 92171A
    92171-1722 CLAMP, EDGE CLIP
    CLAMP, EDGE CLIP
  • 92172
    92172-0003 SCREW, TAPPING, 6X12
    SCREW, TAPPING, 6X12
  • 92173
    92173-0970 CLAMP, SNAPPER
    CLAMP, SNAPPER
  • 92173A
    92173-1055 CLAMP, DRAIN
    CLAMP, DRAIN
  • 92173B
    92173-1156 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92173C
    92173-1199 CLAMP, IRON WIRE
    CLAMP, IRON WIRE
  • 92173D
    92173-1229 CLAMP, RUBBER PLATE
    CLAMP, RUBBER PLATE
  • 92173E
    92173-1242 CLAMP, CABLE CLIP
    CLAMP, CABLE CLIP
  • 92173F
    92173-1269 CLAMP, LOCKING WIRE SADDLE
    CLAMP, LOCKING WIRE SADDLE
  • 132
    132BA0610 BOLT-FLANGED-SMALL, 6X10
    BOLT-FLANGED-SMALL, 6X10
