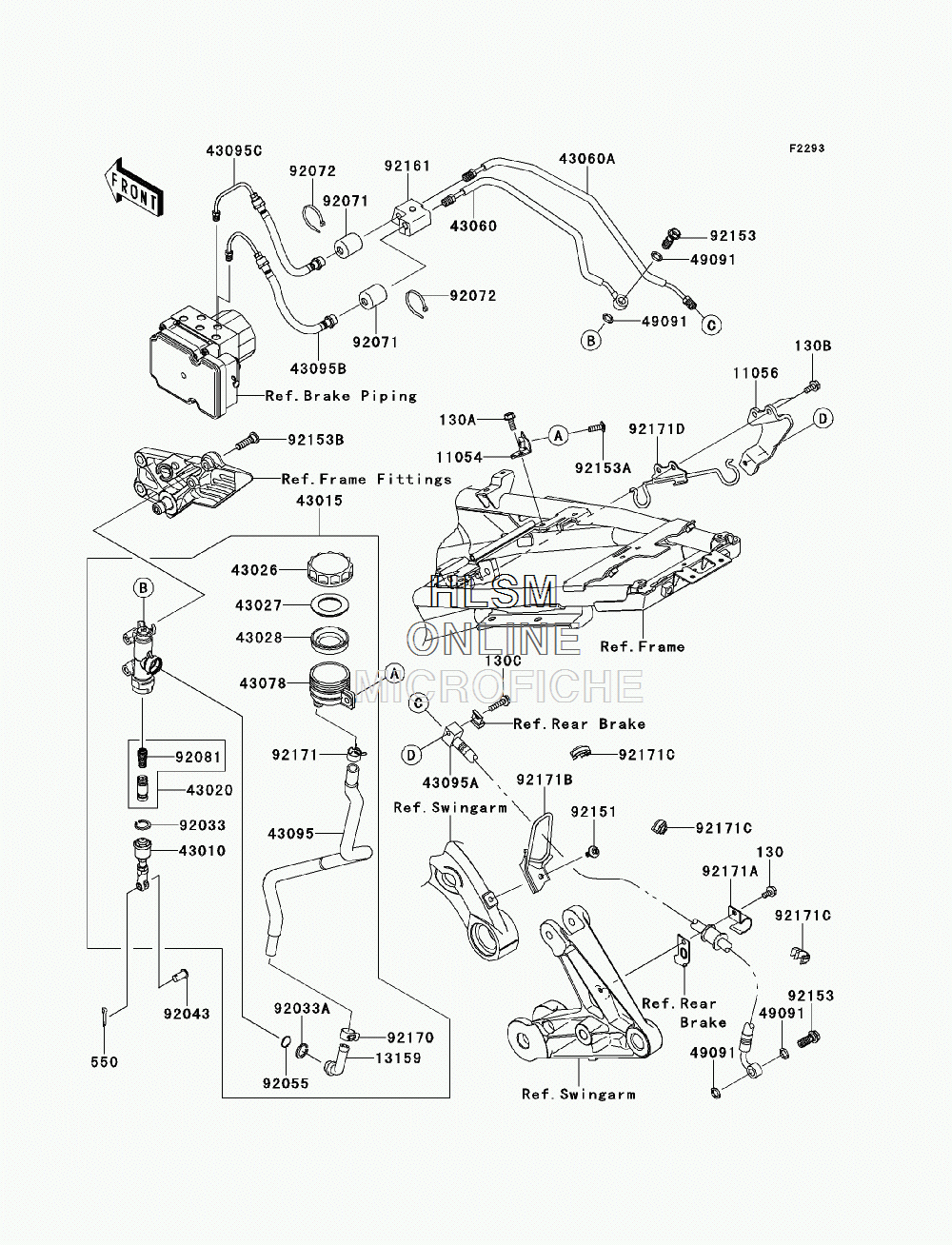

BRAKE - MASTER CYLINDER - REAR для Kawasaki CONCOURS 14 ABS (ZG1400CEF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BB0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130C130BB0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1105411054-1915 BRACKET, RESERVOIR TANK, REARBRACKET, RESERVOIR TANK, REAR
-
1105611056-0037 BRACKET, HOSE JOINT, REARBRACKET, HOSE JOINT, REAR
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-0013 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0585 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4306043060-0074 PIPE-BRAKE, HU-REAR M/CYLINDERPIPE-BRAKE, HU-REAR M/CYLINDER
-
43060A43060-0075 PIPE-BRAKE, HU-REAR CALIPER, JNT.PIPE-BRAKE, HU-REAR CALIPER, JNT.
-
4307843078-1082 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0334 HOSE-BRAKE, REAR, MASTER CYLINDERHOSE-BRAKE, REAR, MASTER CYLINDER
-
43095A43095-0498 HOSE-BRAKE, HU-REAR CALIPERHOSE-BRAKE, HU-REAR CALIPER
-
43095B43095-0561 HOSE-BRAKE, HU-REAR M/CYLINDERHOSE-BRAKE, HU-REAR M/CYLINDER
-
43095C43095-0562 HOSE-BRAKE, HU-REAR CALIPERHOSE-BRAKE, HU-REAR CALIPER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9207192071-1143 GROMMETGROMMET
-
9207292072-3768 BAND, L=148BAND, L=148
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-0756 BOLT, 6X18BOLT, 6X18
-
92153B92153-1624 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9216192161-0314 DAMPER, HOSE CLAMPDAMPER, HOSE CLAMP
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0463 CLAMP, HOSECLAMP, HOSE
-
92171A92171-0880 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171B92171-1713 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171C92171-1819 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171D92171-1935 CLAMP, RESERVE TANK HOSECLAMP, RESERVE TANK HOSE
