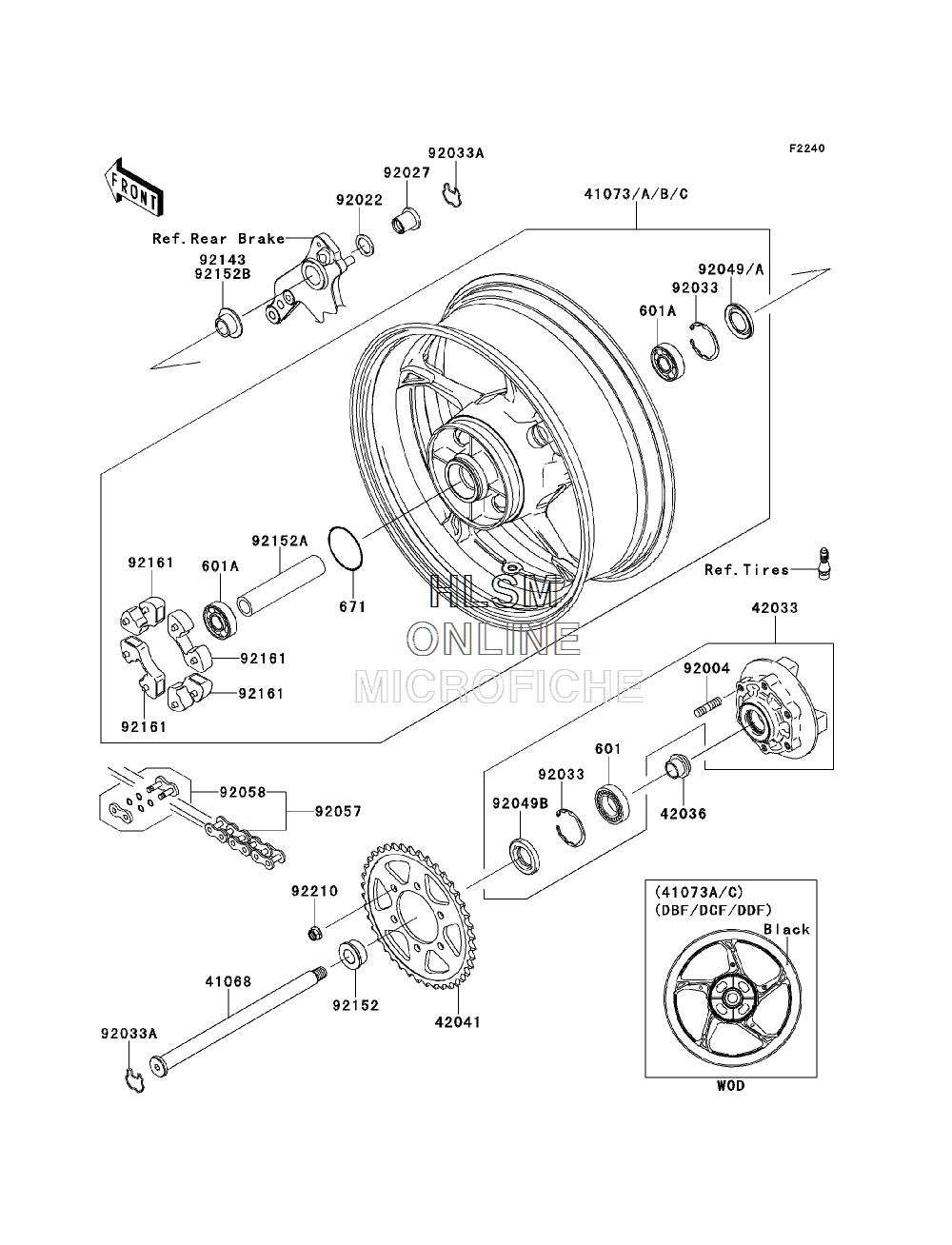

WHEEL - REAR W/ CHAIN для Kawasaki ZR1000 (ZR1000DDF) - 2013 года выпуска`
-
№АртикулНазвание
-
601601B6205UU BEARING-BALLBEARING-BALL
-
601A601B6304UU BEARING-BALL, #6304UUC3BEARING-BALL, #6304UUC3
-
671671B2560 O RING, 60MMO RING, 60MM
-
4106841068-1354 AXLE, REARAXLE, REAR
-
41073C41073-0584-18F WHEEL-ASSY, REAR, (G.BLACK)WHEEL-ASSY, REAR, (G.BLACK)
-
4203342033-0028 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1251 SLEEVE, REAR HUB, L=23SLEEVE, REAR HUB, L=23
-
4204142041-0085 SPROCKET-HUB, 42TSPROCKET-HUB, 42T
-
9200492004-0028 STUD, 10X19STUD, 10X19
-
9202292022-1618 WASHER, 23X32X2.3WASHER, 23X32X2.3
-
9202792027-1810 COLLAR, REAR AXLE, L=28COLLAR, REAR AXLE, L=28
-
9203392033-1043 RING-SNAP, 52MMRING-SNAP, 52MM
-
92033A92033-1156 RING-SNAP, REAR AXLERING-SNAP, REAR AXLE
-
9204992049-0723 SEAL-OIL, 27X52X5SEAL-OIL, 27X52X5
-
92049B92049-1287 SEAL-OILSEAL-OIL
-
9205792057-0203 CHAIN, DRIVE, EK525ZX-112LCHAIN, DRIVE, EK525ZX-112L
-
9205892058-0027 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9215292152-0118 COLLAR, REAR AXLE, LEFT HAND, L=18COLLAR, REAR AXLE, LEFT HAND, L=18
-
92152A92152-0785 COLLAR, REAR HUB, 20.2X29X141COLLAR, REAR HUB, 20.2X29X141
-
92152B92152-1558 COLLAR, REAR AXLE, RIGHT HAND, L=18COLLAR, REAR AXLE, RIGHT HAND, L=18
-
9216192161-0342 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
