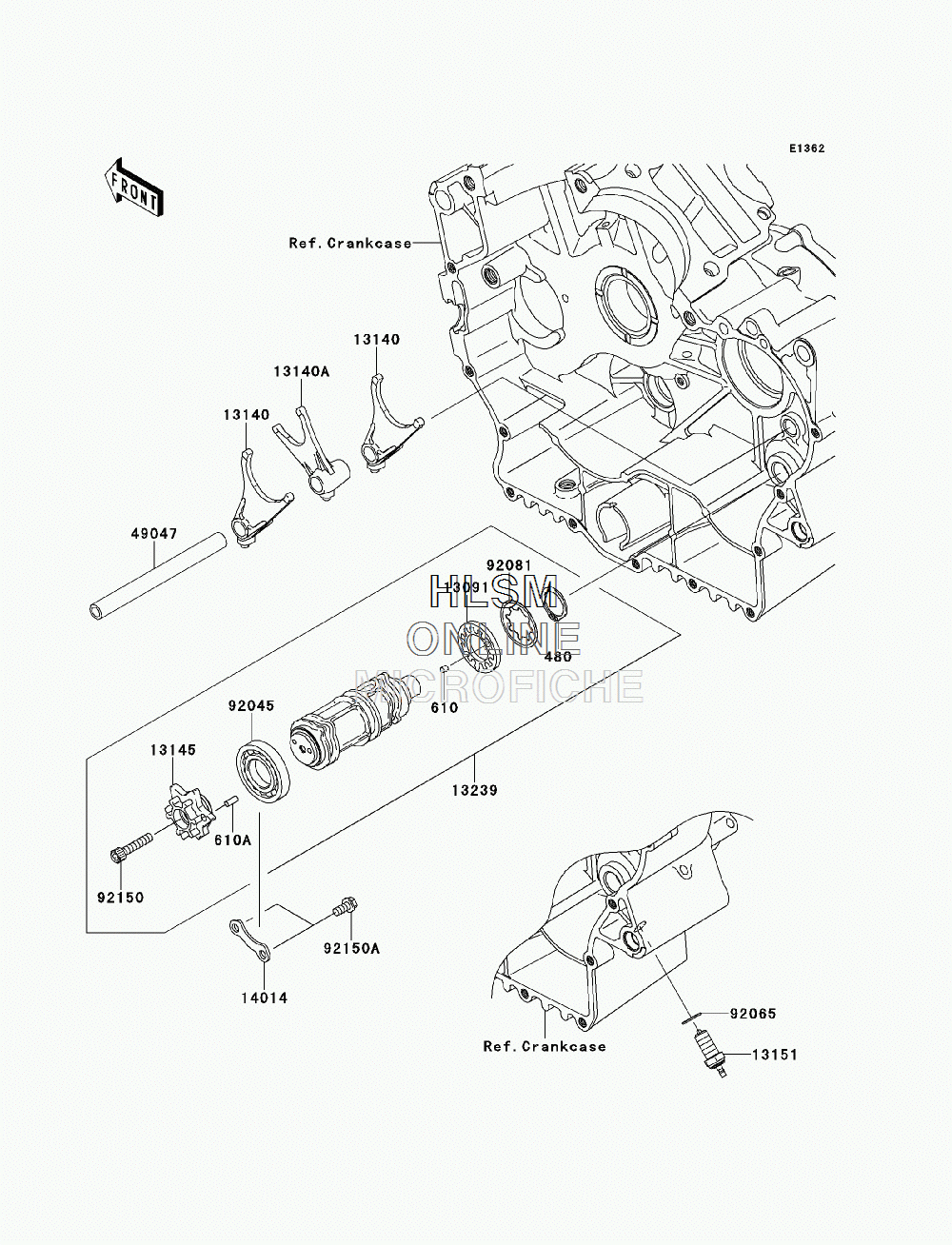

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki VULCAN 900 CLASSIC (CANADIAN) (VN900BDF) - 2013 года выпуска`
-
№АртикулНазвание
-
480480J2200 CIRCLIP-TYPE-C, 22MMCIRCLIP-TYPE-C, 22MM
-
610610A0404 ROLLER, 4X4ROLLER, 4X4
-
610A610A0410 ROLLER, 4X10ROLLER, 4X10
-
1309113091-1389 HOLDER, CHANGE DRUMHOLDER, CHANGE DRUM
-
1314013140-0031 FORK-SHIFT, OUTPUTFORK-SHIFT, OUTPUT
-
13140A13140-1138 FORK-SHIFT, INPUTFORK-SHIFT, INPUT
-
1314513145-0028 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-1085 SWITCH-COMPSWITCH-COMP
-
1323913239-0018 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE
-
1401414014-1014 PLATE-POSITIONPLATE-POSITION
-
4904749047-0036 ROD-SHIFTROD-SHIFT
-
9204592045-1045 BEARING-BALL, 16005BEARING-BALL, 16005
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9208192081-1895 SPRINGSPRING
-
9215092150-1433 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
92150A92150-1868 BOLT, 6X12BOLT, 6X12
