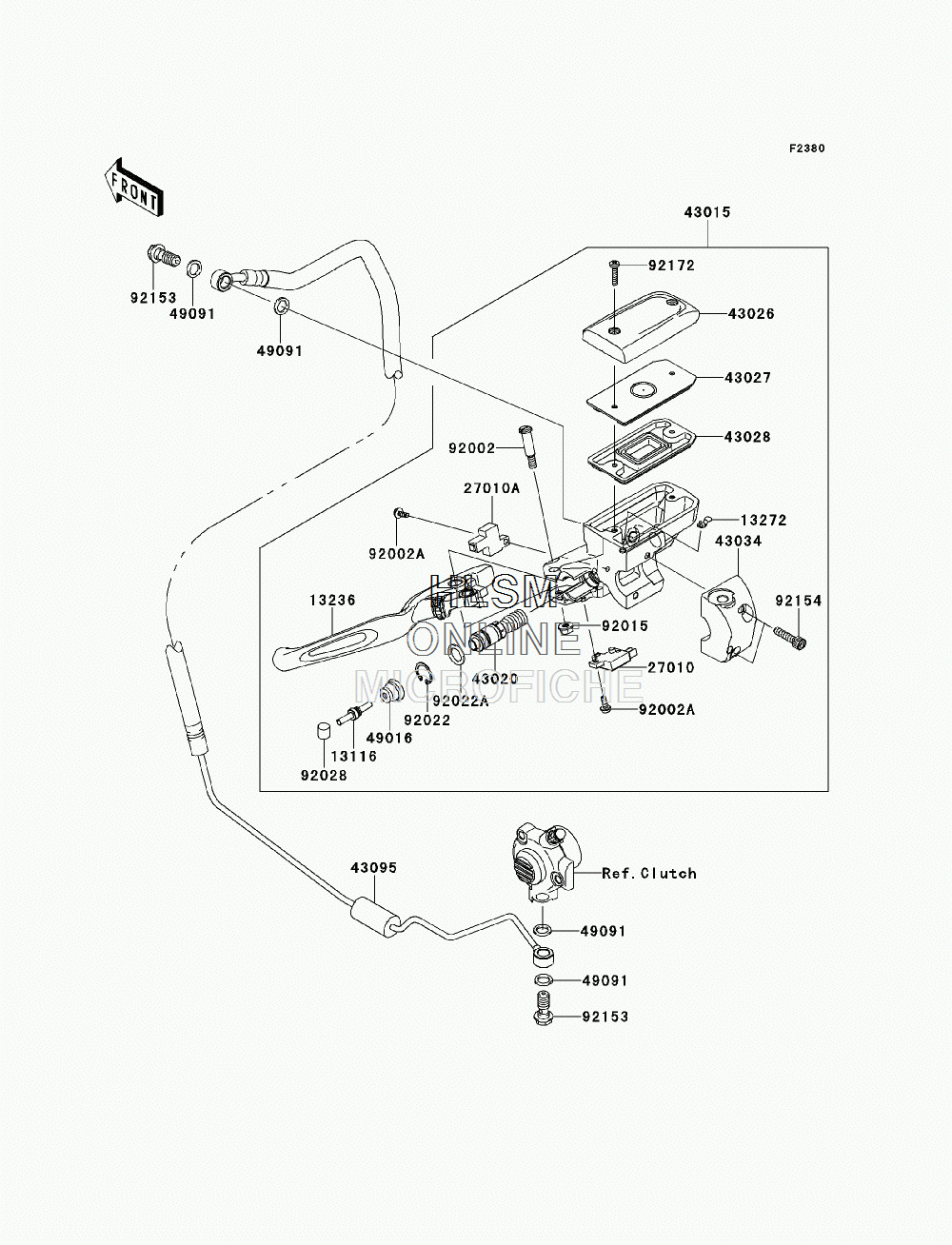

CLUTCH MASTER CYLINDER для Kawasaki VULCAN 1700 VAQUERO (VN1700JDF) - 2013 года выпуска`
-
№АртикулНазвание
-
1311613116-0031 ROD-PUSHROD-PUSH
-
1323613236-0167 LEVER-COMP, CLUTCHLEVER-COMP, CLUTCH
-
1327213272-0573 PLATEPLATE
-
2701027010-0102 SWITCH, CRUISESWITCH, CRUISE
-
27010A27010-0103 SWITCH, CLUTCHSWITCH, CLUTCH
-
4301543015-0164 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-1055 PISTON-COMP-BRAKE, CLUTCHPISTON-COMP-BRAKE, CLUTCH
-
4302643026-0021 CAP-BRAKECAP-BRAKE
-
4302743027-0004 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-0010 DIAPHRAGMDIAPHRAGM
-
4303443034-0040 HOLDER-BRAKEHOLDER-BRAKE
-
4309543095-0479 HOSE-BRAKE, CLUTCHHOSE-BRAKE, CLUTCH
-
4901649016-0056 COVER-SEALCOVER-SEAL
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200292002-1322 BOLT, LEVER SET, (BLACK)BOLT, LEVER SET, (BLACK)
-
92002A92002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1605 CIRCLIPCIRCLIP
-
92022A92022-1606 WASHER, PISTONWASHER, PISTON
-
9202892028-1310 BUSHING, MASTER CYLINDERBUSHING, MASTER CYLINDER
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9215492154-0167 BOLT, SOCKETBOLT, SOCKET
-
9217292172-0492 SCREWSCREW
