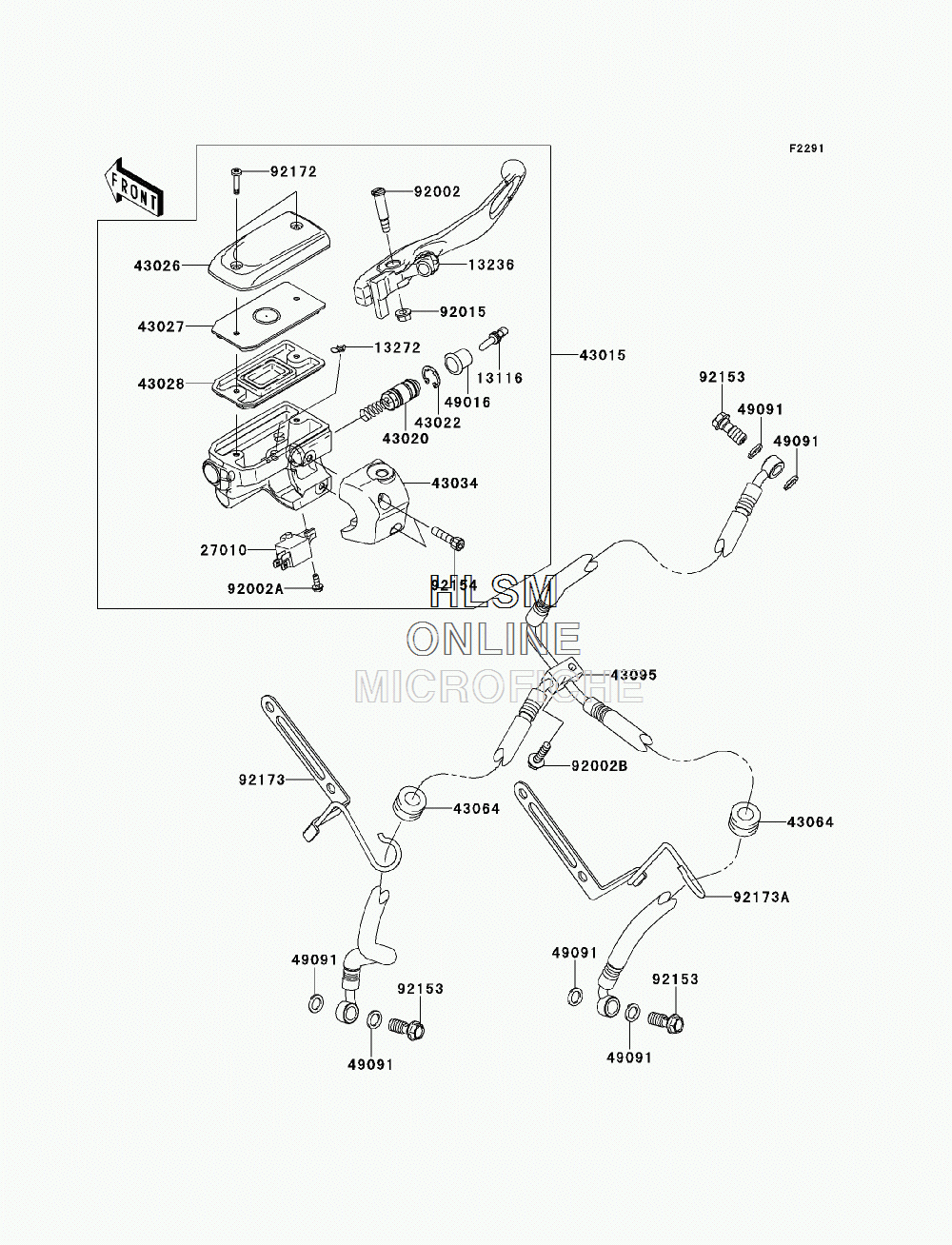

BRAKE - MASTER CYLINDER - FRONT для Kawasaki VULCAN 1700 NOMAD (VN1700CDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 13116
    13116-0039 ROD-PUSH
    ROD-PUSH
  • 13236
    13236-0166 LEVER-COMP, FRONT BRAKE
    LEVER-COMP, FRONT BRAKE
  • 13272
    13272-0573 PLATE
    PLATE
  • 27010
    27010-1232 SWITCH, CRUISE CONTROL CANCEL
    SWITCH, CRUISE CONTROL CANCEL
  • 43015
    43015-0566 CYLINDER-ASSY-MASTER, FRONT
    CYLINDER-ASSY-MASTER, FRONT
  • 43020
    43020-0014 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43022
    43022-1010 STOPPER-BRAKE, PISTON
    STOPPER-BRAKE, PISTON
  • 43026
    43026-0053 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-0004 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-0010 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-0041 HOLDER-BRAKE, MASTER CYLINDER
    HOLDER-BRAKE, MASTER CYLINDER
  • 43064
    43064-006 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 43095
    43095-0458 HOSE-BRAKE, FRONT
    HOSE-BRAKE, FRONT
  • 49016
    49016-1044 COVER-SEAL, MASTER CYLINDER
    COVER-SEAL, MASTER CYLINDER
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92002
    92002-1322 BOLT, LEVER SET, (BLACK)
    BOLT, LEVER SET, (BLACK)
  • 92002A
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002B
    92002-1912 BOLT, 6X26.6
    BOLT, 6X26.6
  • 92015
    92015-1528 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92154
    92154-0167 BOLT, SOCKET
    BOLT, SOCKET
  • 92172
    92172-0385 SCREW, 4MM
    SCREW, 4MM
  • 92173
    92173-0073 CLAMP, FRONT FENDER, LEFT HAND
    CLAMP, FRONT FENDER, LEFT HAND
  • 92173A
    92173-0074 CLAMP, FRONT FENDER, RIGHT HAND
    CLAMP, FRONT FENDER, RIGHT HAND
