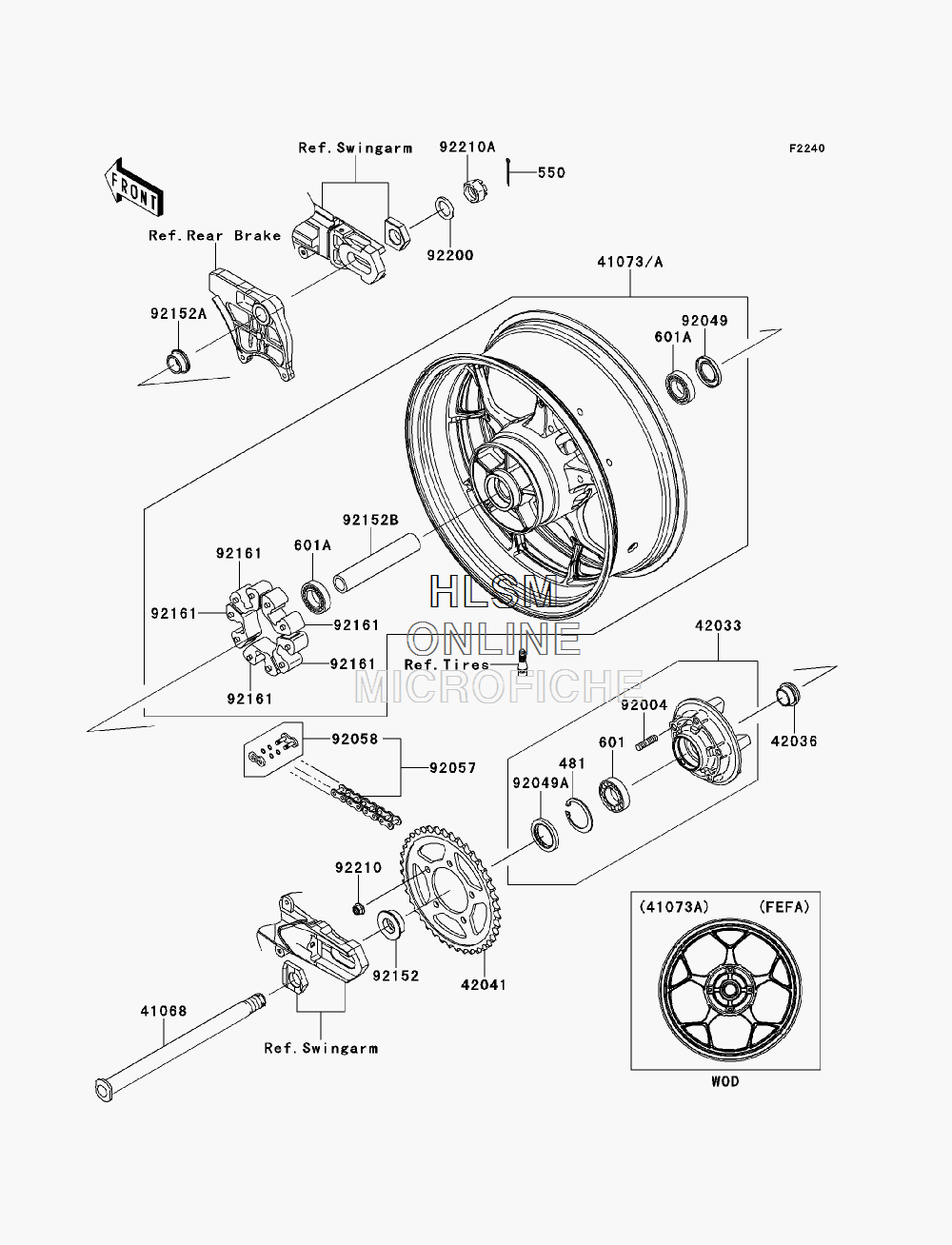

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-14R ABS (ZX1400FDFA) - 2013 года выпуска

  • №
    Артикул
    Название
  • 481
    481J5500 CIRCLIP
    CIRCLIP
  • 550
    550AA4040 PIN-COTTER, 4.0X40
    PIN-COTTER, 4.0X40
  • 601
    601B6006G BEARING-BALL, #6006G
    BEARING-BALL, #6006G
  • 601A
    601B6205UU BEARING-BALL
    BEARING-BALL
  • 41068
    41068-0050 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-0574-18 WHEEL-ASSY, REAR, (BLACK)
    WHEEL-ASSY, REAR, (BLACK)
  • 42033
    42033-0021 COUPLING-ASSY, REAR HUB
    COUPLING-ASSY, REAR HUB
  • 42036
    42036-1279 SLEEVE, REAR HUB, L=22
    SLEEVE, REAR HUB, L=22
  • 42041
    42041-0117 SPROCKET-HUB, 42T
    SPROCKET-HUB, 42T
  • 92004
    92004-0029 STUD, 10X24
    STUD, 10X24
  • 92049
    92049-0722 SEAL-OIL, 31X52X5
    SEAL-OIL, 31X52X5
  • 92049A
    92049-1263 SEAL-OIL, PJN40556
    SEAL-OIL, PJN40556
  • 92057
    92057-0579 CHAIN, DRIVE, EK530RMX/3DX118L
    CHAIN, DRIVE, EK530RMX/3DX118L
  • 92058
    92058-0031 JOINT-CHAIN
    JOINT-CHAIN
  • 92152
    92152-0340 COLLAR, REAR AXLE, LEFT HAND, L=16.5
    COLLAR, REAR AXLE, LEFT HAND, L=16.5
  • 92152A
    92152-0341 COLLAR, REAR AXLE, RIGHT HAND, L=16
    COLLAR, REAR AXLE, RIGHT HAND, L=16
  • 92152B
    92152-1080 COLLAR, REAR HUB, L=152.5
    COLLAR, REAR HUB, L=152.5
  • 92161
    92161-1286 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92200
    92200-0278 WASHER, 25.5X38X3.2
    WASHER, 25.5X38X3.2
  • 92210
    92210-0276 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92210A
    92210-0280 NUT, CASTLE, 24MM
    NUT, CASTLE, 24MM
