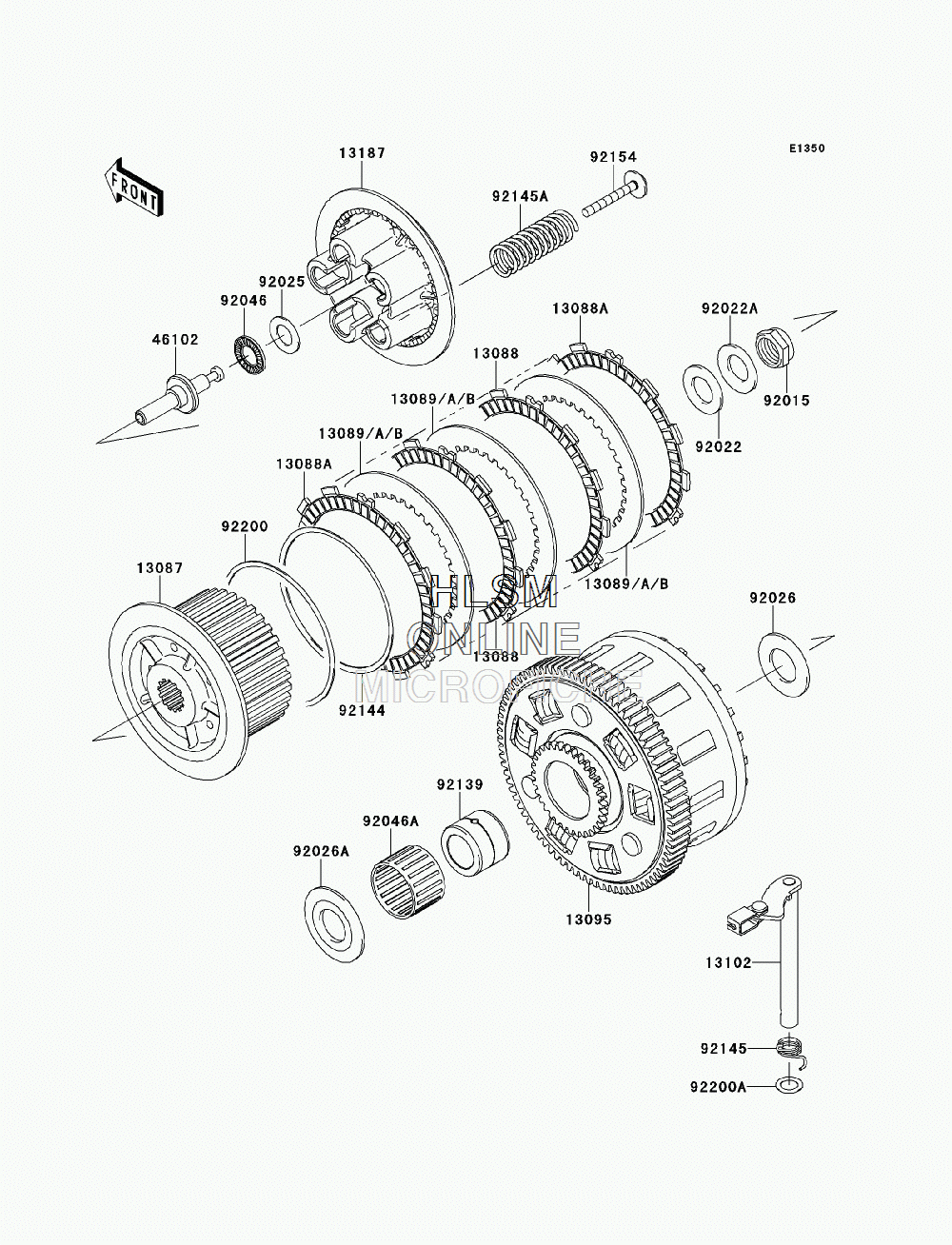

CLUTCH для Kawasaki NINJA 1000 (ZX1000GDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 13087
    13087-0051 HUB-CLUTCH
    HUB-CLUTCH
  • 13088
    13088-0049 PLATE-FRICTION
    PLATE-FRICTION
  • 13088A
    13088-0052 PLATE-FRICTION
    PLATE-FRICTION
  • 13089
    13089-0008 PLATE-CLUTCH, T=2.3
    PLATE-CLUTCH, T=2.3
  • 13089A
    13089-0009 PLATE-CLUTCH, T=2.6
    PLATE-CLUTCH, T=2.6
  • 13089B
    13089-1093 PLATE-CLUTCH, T=2.9
    PLATE-CLUTCH, T=2.9
  • 13095
    13095-0118 HOUSING-COMP-CLUTCH
    HOUSING-COMP-CLUTCH
  • 13102
    13102-0038 RELEASE-COMP-CLUTCH
    RELEASE-COMP-CLUTCH
  • 13187
    13187-0019 PLATE-CLUTCH OPERATING
    PLATE-CLUTCH OPERATING
  • 46102
    46102-0083 ROD
    ROD
  • 92015
    92015-1555 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-1116 WASHER, 20.3X36X2.3
    WASHER, 20.3X36X2.3
  • 92022A
    92022-1868 WASHER, 20.3X36X3.7
    WASHER, 20.3X36X3.7
  • 92025
    92025-1137 SHIM, 15.3X27.5X1.20
    SHIM, 15.3X27.5X1.20
  • 92026
    92026-022 SPACER, 25.5X47X2.5
    SPACER, 25.5X47X2.5
  • 92026A
    92026-1497 SPACER
    SPACER
  • 92046
    92046-1052 BEARING-NEEDLE, AXK1102
    BEARING-NEEDLE, AXK1102
  • 92046A
    92046-1263 BEARING-NEEDLE, K38X43X28.8X
    BEARING-NEEDLE, K38X43X28.8X
  • 92139
    92139-0067 BUSHING, 25X38X29.05
    BUSHING, 25X38X29.05
  • 92144
    92144-1854 SPRING, FRICTION PLATE
    SPRING, FRICTION PLATE
  • 92145
    92145-0325 SPRING, RELEASE-COMP
    SPRING, RELEASE-COMP
  • 92145A
    92145-0736 SPRING
    SPRING
  • 92154
    92154-0352 BOLT, CLUTCH OPERATING
    BOLT, CLUTCH OPERATING
  • 92200
    92200-1260 WASHER, FRICTION PLATE
    WASHER, FRICTION PLATE
  • 92200A
    92200-1487 WASHER, 12X18.5X0.5
    WASHER, 12X18.5X0.5
