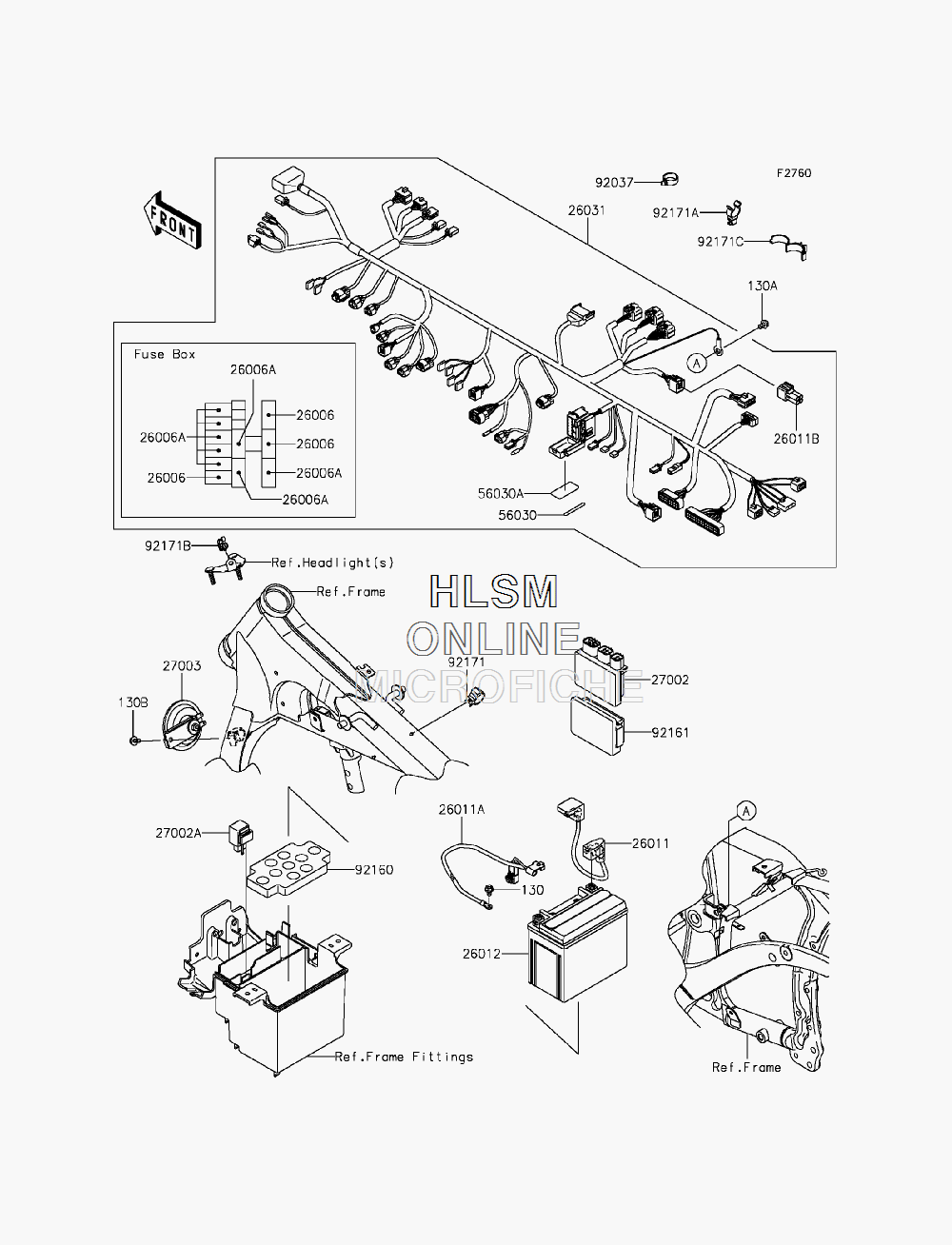

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki VULCAN 900 CUSTOM (VN900CCFA) - 2012 года выпуска`
-
№АртикулНазвание
-
130130BA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
130A130BB0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
130B130BB0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
2600626006-0001 FUSE,MINI BLADE,15A,(BLUE)FUSE,MINI BLADE,15A,(BLUE)
-
26006A26006-1078 FUSE,MINI BLADE,10A, (RED)FUSE,MINI BLADE,10A, (RED)
-
2601126011-0089 WIRE-LEAD,BATTERY(+)WIRE-LEAD,BATTERY(+)
-
26011A26011-0090 WIRE-LEAD,BATTERY(-)WIRE-LEAD,BATTERY(-)
-
26011B26011-0271 WIRE-LEAD,CAPWIRE-LEAD,CAP
-
2601226012-0094 BATTERY,YTX12-BS,12V 10AHBATTERY,YTX12-BS,12V 10AH
-
2603126031-0998 HARNESS,MAINHARNESS,MAIN
-
2700227002-0007 RELAY-ASSYRELAY-ASSY
-
27002A27002-1101 RELAY-ASSY,TURN SIGNALRELAY-ASSY,TURN SIGNAL
-
2700327003-0048 HORNHORN
-
5603056030-0016 LABEL,FUSE BOXLABEL,FUSE BOX
-
56030A56030-0046 LABEL,FUSE BOXLABEL,FUSE BOX
-
9203792037-1827 CLAMP,HOSECLAMP,HOSE
-
9216092160-1635 DAMPER,BATTERYDAMPER,BATTERY
-
9216192161-0203 DAMPER, RELAY BOXDAMPER, RELAY BOX
-
9217192171-0081 CLAMP,DIA=20CLAMP,DIA=20
-
92171A92171-0347 CLAMP,CABLECLAMP,CABLE
-
92171B92171-1415 CLAMP,DIA=13CLAMP,DIA=13
-
92171C92171-1423 CLAMP,DIA=10CLAMP,DIA=10
