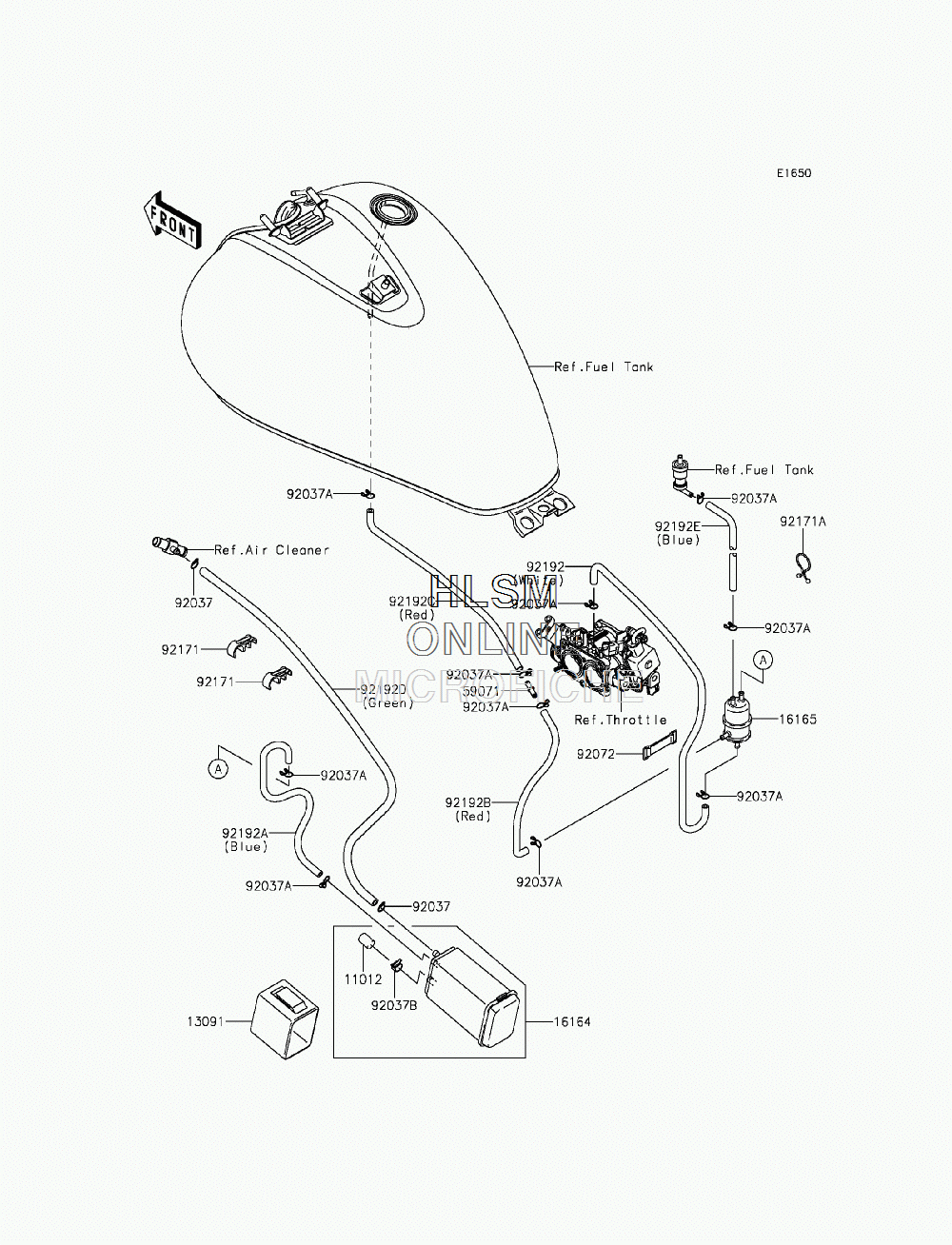

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki VULCAN 900 CUSTOM (VN900CCF) - 2012 года выпуска
-
№АртикулНазвание
-
1101211012-1388 CAP,CANISTER (CALIF. ONLY)CAP,CANISTER (CALIF. ONLY)
-
1309113091-1308 HOLDER,CANISTER (CALIF. ONLY)HOLDER,CANISTER (CALIF. ONLY)
-
1616416164-1054 CANISTER (CALIF. ONLY)CANISTER (CALIF. ONLY)
-
1616516165-1001 SEPARATOR (CALIF. ONLY)SEPARATOR (CALIF. ONLY)
-
5907159071-3717 JOINT (CALIF. ONLY)JOINT (CALIF. ONLY)
-
9203792037-1104 CLAMP,HOSE (CALIF. ONLY)CLAMP,HOSE (CALIF. ONLY)
-
92037A92037-147 CLAMP,TUBE (CALIF. ONLY)CLAMP,TUBE (CALIF. ONLY)
-
92037B92037-1512 CLAMP,CANISTER (CALIF. ONLY)CLAMP,CANISTER (CALIF. ONLY)
-
9207292072-1419 BAND,L=50 (CALIF. ONLY)BAND,L=50 (CALIF. ONLY)
-
9217192171-0765 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
92171A92171-1185 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9219292192-0275 TUBE,SEPARATOR-THROBO,(WHITE) (CALIF. ONLY)TUBE,SEPARATOR-THROBO,(WHITE) (CALIF. ONLY)
-
92192A92192-0505 TUBE,SEPARATOR-CANISTER,(BLUE) (CALIF. ONLY)TUBE,SEPARATOR-CANISTER,(BLUE) (CALIF. ONLY)
-
92192B92192-0506 TUBE,SEPARATOR-JOINT, (RED) (CALIF. ONLY)TUBE,SEPARATOR-JOINT, (RED) (CALIF. ONLY)
-
92192C92192-0507 TUBE,JOINT-TANK, (RED) (CALIF. ONLY)TUBE,JOINT-TANK, (RED) (CALIF. ONLY)
-
92192D92192-0509 TUBE,7X12X760,(GREEN) (CALIF. ONLY)TUBE,7X12X760,(GREEN) (CALIF. ONLY)
-
92192E92192-1063 TUBE,5X10X705,(BLUE) (CALIF. ONLY)TUBE,5X10X705,(BLUE) (CALIF. ONLY)
