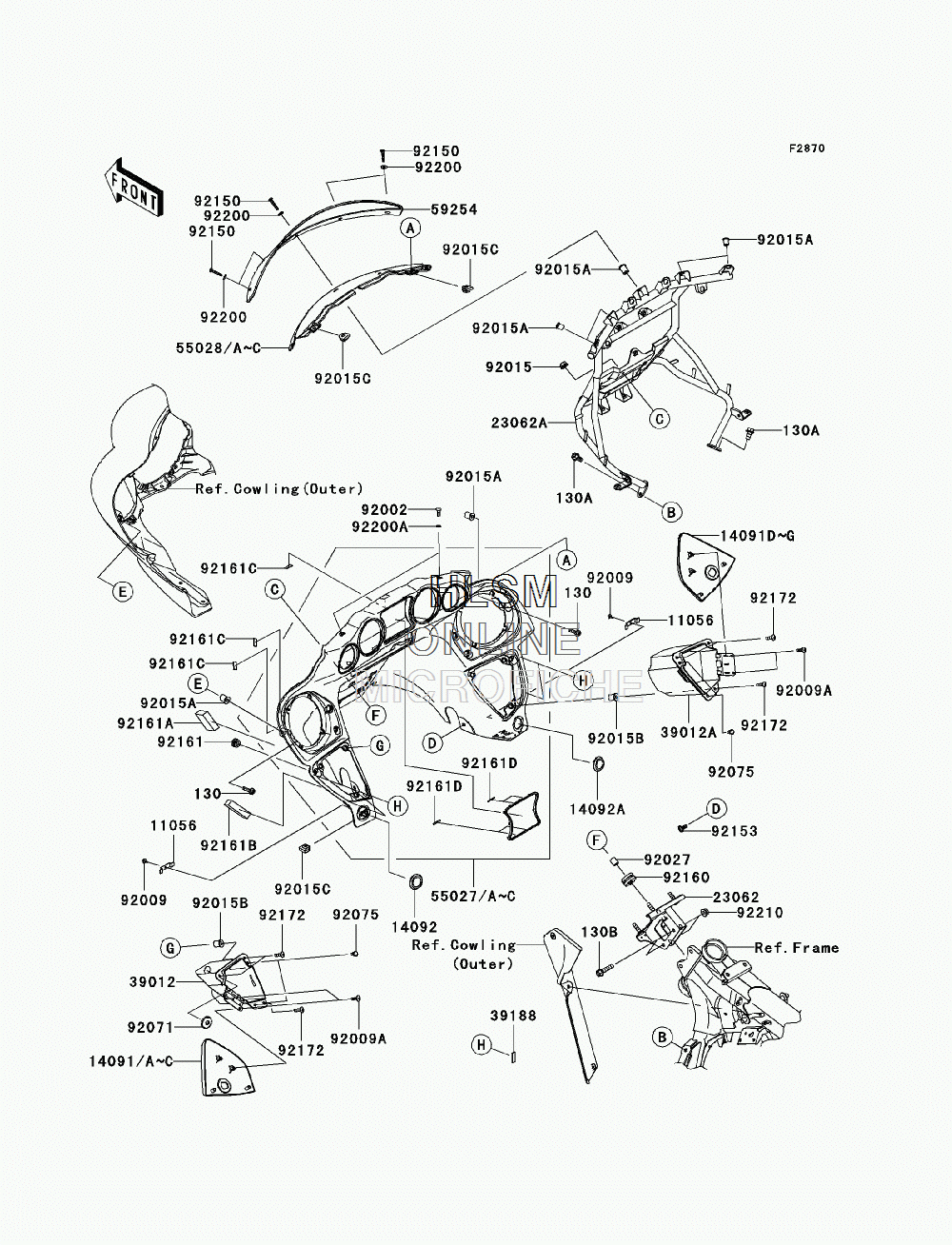

COWLING - INNER для Kawasaki VULCAN 1700 VAQUERO (VN1700JCFA) - 2012 года выпуска
-
№АртикулНазвание
-
1105611056-0373 BRACKETBRACKET
-
1409114091-0946-17P COVER,STORAGE CASE, LEFT HAND,C.L.GRN (USA ONLY) (FOR 32G)COVER,STORAGE CASE, LEFT HAND,C.L.GRN (USA ONLY) (FOR 32G)
-
14091B14091-0946-723 COVER,STORAGE CASE, LEFT HAND,C.P.BLUE (CANADA ONLY) (FOR 723)COVER,STORAGE CASE, LEFT HAND,C.P.BLUE (CANADA ONLY) (FOR 723)
-
14091D14091-0947-17P COVER,STORAGE CASE, RIGHT HAND,C.L.GRN (USA ONLY) (FOR 32G)COVER,STORAGE CASE, RIGHT HAND,C.L.GRN (USA ONLY) (FOR 32G)
-
14091F14091-0947-723 COVER,STORAGE CASE, RIGHT HAND,C.P.BLUE (CANADA ONLY) (FOR 723)COVER,STORAGE CASE, RIGHT HAND,C.P.BLUE (CANADA ONLY) (FOR 723)
-
1409214092-0213 COVER,SUB LAMP SW.COVER,SUB LAMP SW.
-
14092A14092-0214 COVER,DC SOCKETCOVER,DC SOCKET
-
2306223062-0105 BRACKET-COMP,HEAD PIPEBRACKET-COMP,HEAD PIPE
-
23062A23062-0720 BRACKET-COMP,COWLINGBRACKET-COMP,COWLING
-
3901239012-0027 CASE-STORAGE, LEFT HANDCASE-STORAGE, LEFT HAND
-
39012A39012-0028 CASE-STORAGE, RIGHT HANDCASE-STORAGE, RIGHT HAND
-
3918839188-0555 TAPE,10X30TAPE,10X30
-
5502755027-0063-17P COWLING-ASSY,UPP,INNER,C.L.GRN (USA ONLY) (FOR 32G)COWLING-ASSY,UPP,INNER,C.L.GRN (USA ONLY) (FOR 32G)
-
55027B55027-0063-723 COWLING-ASSY,UPP,INNER,C.P.BLU (CANADA ONLY) (FOR 723)COWLING-ASSY,UPP,INNER,C.P.BLU (CANADA ONLY) (FOR 723)
-
5502855028-0227-17P COWLING,CNT,C.L.GREEN (USA ONLY) (FOR 32G)COWLING,CNT,C.L.GREEN (USA ONLY) (FOR 32G)
-
55028B55028-0227-723 COWLING,CNT,C.P.BLUE (CANADA ONLY) (FOR 723)COWLING,CNT,C.P.BLUE (CANADA ONLY) (FOR 723)
-
5925459254-0001 DEFLECTORDEFLECTOR
-
130130BB0622 BOLT-FLANGED,6X22BOLT-FLANGED,6X22
-
130A130BB0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
130B130BB0835 BOLT-FLANGED,8X35BOLT-FLANGED,8X35
-
9200292002-1700 BOLT,6X14BOLT,6X14
-
9200992009-1155 SCREW,TAPPING,4X8SCREW,TAPPING,4X8
-
92009A92009-1332 SCREW,TAPPING,5X10SCREW,TAPPING,5X10
-
9201592015-1406 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
92015A92015-1700 NUTNUT
-
92015B92015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
92015C92015-1904 NUT,CLIP,6MMNUT,CLIP,6MM
-
9202792027-012 COLLAR,8.8X12X14COLLAR,8.8X12X14
-
9207192071-079 GROMMET,TAIL LAMP WIREGROMMET,TAIL LAMP WIRE
-
9207592075-1808 DAMPERDAMPER
-
9215092150-1554 BOLT,SOCKET,6X30BOLT,SOCKET,6X30
-
9215392153-1451 BOLT,SOCKET,6X15BOLT,SOCKET,6X15
-
9216092160-1007 DAMPERDAMPER
-
9216192161-0317 DAMPERDAMPER
-
92161A92161-0784 DAMPERDAMPER
-
92161B92161-0785 DAMPERDAMPER
-
92161C92161-0965 DAMPERDAMPER
-
92161D92161-0996 DAMPER,3X25X0.3DAMPER,3X25X0.3
-
9217292172-0428 SCREW,5X18SCREW,5X18
-
9220092200-1388 WASHER,6.5X14X1WASHER,6.5X14X1
-
92200A92200-1465 WASHER,6.2X10X1WASHER,6.2X10X1
-
9221092210-0004 NUT,FLANGED,8MMNUT,FLANGED,8MM
