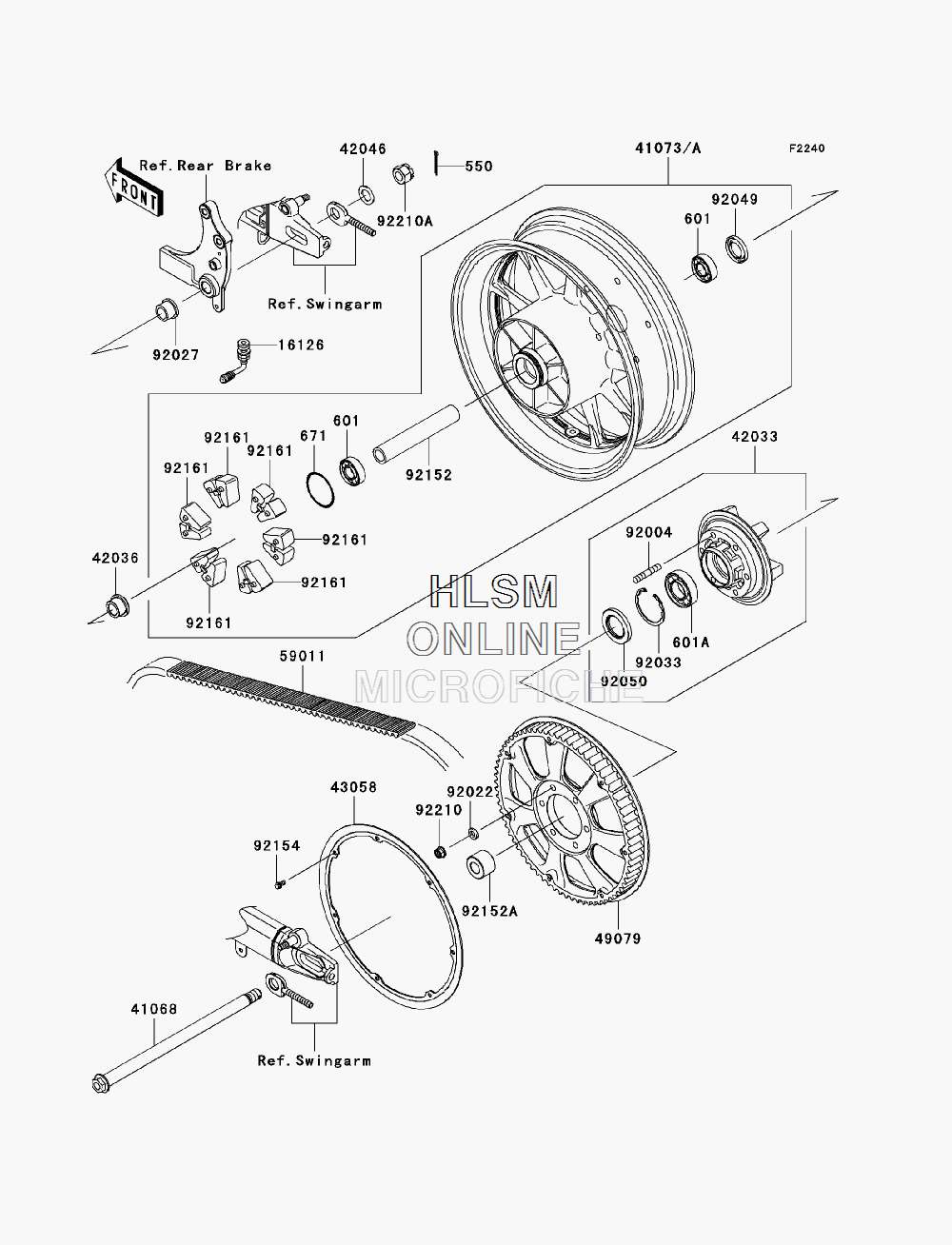

WHEEL - REAR W/ CHAIN для Kawasaki VULCAN 1700 VAQUERO (VN1700JCF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 550
    550AA4035 PIN-COTTER,4.0X35
    PIN-COTTER,4.0X35
  • 601
    601B6204UU BEARING-BALL,6204UUC3
    BEARING-BALL,6204UUC3
  • 601A
    601B6206UU BEARING-BALL,#6206UUC3
    BEARING-BALL,#6206UUC3
  • 671
    671B2560 O RING,60MM
    O RING,60MM
  • 16126
    16126-1365 VALVE
    VALVE
  • 41068
    41068-0057 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-0136-R2 WHEEL-ASSY, REAR,BLACK
    WHEEL-ASSY, REAR,BLACK
  • 42033
    42033-0031 COUPLING-ASSY, REAR HUB
    COUPLING-ASSY, REAR HUB
  • 42036
    42036-0060 SLEEVE, REAR HUB COUPLING
    SLEEVE, REAR HUB COUPLING
  • 42046
    42046-003 WASHER,21X33X2.6
    WASHER,21X33X2.6
  • 43058
    43058-0033 RING,PULLEY
    RING,PULLEY
  • 49079
    49079-0018 PULLEY-BELT
    PULLEY-BELT
  • 59011
    59011-0025 BELT,DRIVE,139T
    BELT,DRIVE,139T
  • 92004
    92004-0016 STUD,10X35
    STUD,10X35
  • 92022
    92022-1820 WASHER,10.5X19X3.2
    WASHER,10.5X19X3.2
  • 92027
    92027-1902 COLLAR, REAR AXLE,L=21.5
    COLLAR, REAR AXLE,L=21.5
  • 92033
    92033-1044 RING-SNAP,62MM
    RING-SNAP,62MM
  • 92049
    92049-1056 SEAL-OIL,BJN28475
    SEAL-OIL,BJN28475
  • 92050
    92050-027 SEAL-OIL,AJN40627
    SEAL-OIL,AJN40627
  • 92152
    92152-0640 COLLAR, REAR HUB,L=172
    COLLAR, REAR HUB,L=172
  • 92152A
    92152-0641 COLLAR, REAR AXLE, LEFT HAND,L=28
    COLLAR, REAR AXLE, LEFT HAND,L=28
  • 92154
    92154-0346 BOLT,FLANGED,6X12
    BOLT,FLANGED,6X12
  • 92161
    92161-0576 DAMPER,SHOCK, REAR HUB
    DAMPER,SHOCK, REAR HUB
  • 92210
    92210-0276 NUT,LOCK,FLANGED,10MM
    NUT,LOCK,FLANGED,10MM
  • 92210A
    92210-1134 NUT,CASTLE,18MM
    NUT,CASTLE,18MM
