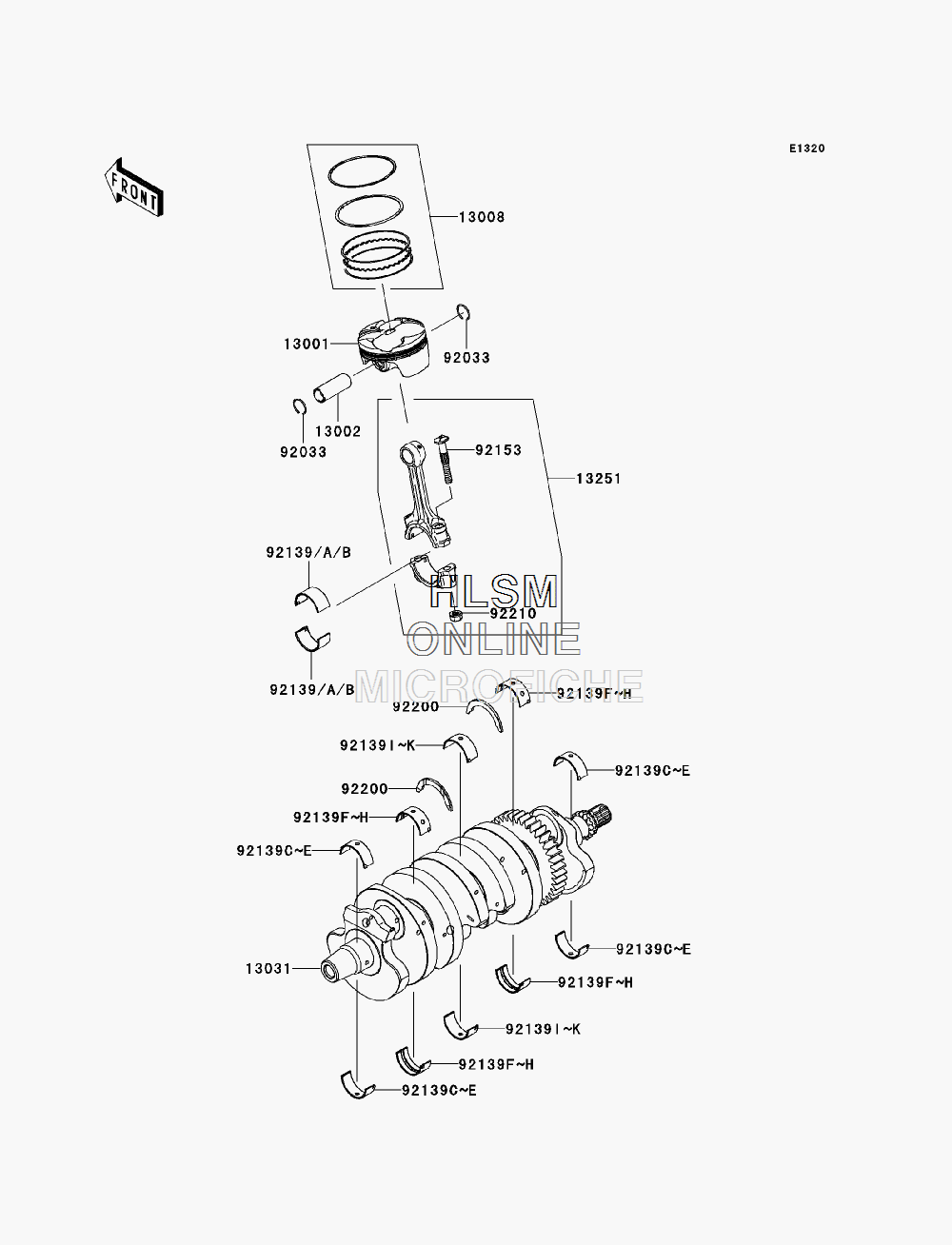

CRANKSHAFT/PISTON(S) для Kawasaki NINJA ZX-6R (ZX600RCF) - 2012 года выпуска
-
№АртикулНазвание
-
1300113001-0107 PISTON-ENGINEPISTON-ENGINE
-
1300213002-0015 PIN-PISTONPIN-PISTON
-
1300813008-0035 RING-SET-PISTONRING-SET-PISTON
-
1303113031-0128 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1325113251-0018-JJ ROD-ASSY-CONNECTING,JROD-ASSY-CONNECTING,J
-
9203392033-1151 RING-SNAP,PISTON PINRING-SNAP,PISTON PIN
-
9213992139-0165 BUSHING,CRANK PIN,BLUEBUSHING,CRANK PIN,BLUE
-
92139A92139-0166 BUSHING,CRANK PIN,BLACKBUSHING,CRANK PIN,BLACK
-
92139B92139-0167 BUSHING,CRANK PIN,BROWNBUSHING,CRANK PIN,BROWN
-
92139C92139-0245 BUSHING,CRANK #1 & #5,BLUEBUSHING,CRANK #1 & #5,BLUE
-
92139D92139-0246 BUSHING,CRANK #1 & #5,BLACKBUSHING,CRANK #1 & #5,BLACK
-
92139E92139-0247 BUSHING,CRANK #1 & #5,BROWNBUSHING,CRANK #1 & #5,BROWN
-
92139F92139-0248 BUSHING,CRANK #2 & #4,BLUEBUSHING,CRANK #2 & #4,BLUE
-
92139G92139-0249 BUSHING,CRANK #2 & #4,BLACKBUSHING,CRANK #2 & #4,BLACK
-
92139H92139-0250 BUSHING,CRANK #2 & #4,BROWNBUSHING,CRANK #2 & #4,BROWN
-
92139I92139-0251 BUSHING,CRANK #3,BLUEBUSHING,CRANK #3,BLUE
-
92139J92139-0252 BUSHING,CRANK #3,BLACKBUSHING,CRANK #3,BLACK
-
92139K92139-0253 BUSHING,CRANK #3,BROWNBUSHING,CRANK #3,BROWN
-
9215392153-1172 BOLT,7MMBOLT,7MM
-
9220092200-0383 WASHER,T=2.5WASHER,T=2.5
-
9221092210-0384 NUT,CONNECTING ROD,7MMNUT,CONNECTING ROD,7MM
