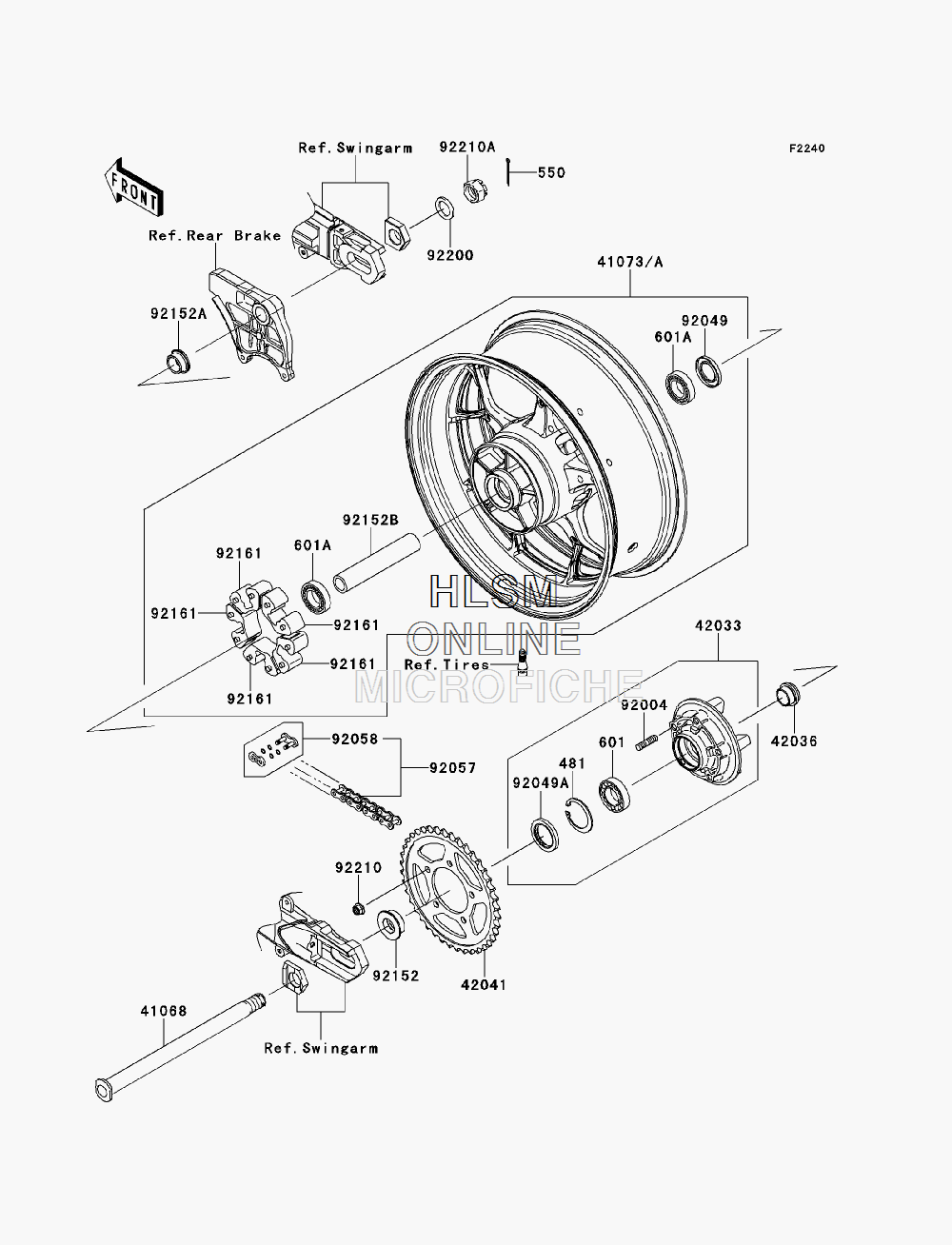

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-14R (ZX1400ECFA) - 2012 года выпуска
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
550550AA4040 PIN-COTTER, 4.0X40PIN-COTTER, 4.0X40
-
601601B6006G BEARING-BALL, #6006GBEARING-BALL, #6006G
-
601A601B6205UU BEARING-BALLBEARING-BALL
-
4106841068-0050 AXLE, REARAXLE, REAR
-
4107341073-0574-18 WHEEL-ASSY, REAR, (BLACK)WHEEL-ASSY, REAR, (BLACK)
-
4203342033-0021 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1279 SLEEVE, REAR HUB, L=22SLEEVE, REAR HUB, L=22
-
4204142041-0117 SPROCKET-HUB, 42TSPROCKET-HUB, 42T
-
9200492004-0029 STUD, 10X24STUD, 10X24
-
9204992049-0722 SEAL-OIL, 31X52X5SEAL-OIL, 31X52X5
-
92049A92049-1263 SEAL-OIL, PJN40556SEAL-OIL, PJN40556
-
9205792057-0579 CHAIN, DRIVE, EK530RMX/3DX118LCHAIN, DRIVE, EK530RMX/3DX118L
-
9205892058-0031 JOINT-CHAINJOINT-CHAIN
-
9215292152-0340 COLLAR, REAR AXLE, LEFT HAND, L=16.5COLLAR, REAR AXLE, LEFT HAND, L=16.5
-
92152A92152-0341 COLLAR, REAR AXLE, RIGHT HAND, L=16COLLAR, REAR AXLE, RIGHT HAND, L=16
-
92152B92152-1080 COLLAR, REAR HUB, L=152.5COLLAR, REAR HUB, L=152.5
-
9216192161-1286 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-0278 WASHER, 25.5X38X3.2WASHER, 25.5X38X3.2
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-0280 NUT, CASTLE, 24MMNUT, CASTLE, 24MM
