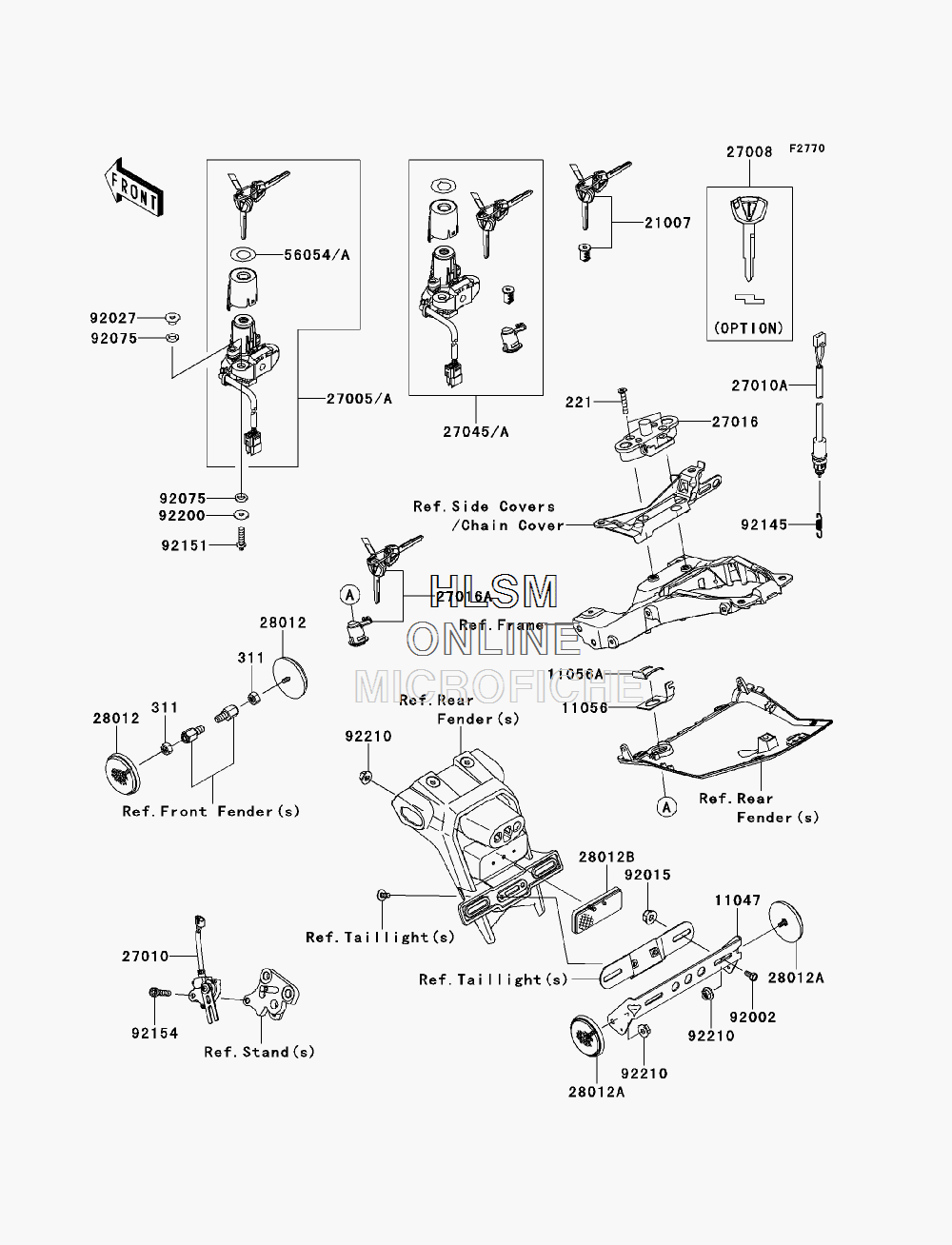

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA ZX-10R (ZX1000JCF) - 2012 года выпуска
-
№АртикулНазвание
-
221221AB0635 SCREW-CSK-CROS, 6X35SCREW-CSK-CROS, 6X35
-
311311AB0500 NUT-HEXNUT-HEX
-
1104711047-1470 BRACKET, REFLECTORBRACKET, REFLECTOR
-
1105611056-0237 BRACKETBRACKET
-
11056A11056-0238 BRACKET, CLASPBRACKET, CLASP
-
2100721007-5068 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0556 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0069 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-1463 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1486 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-0035 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5368 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
2704527045-5470 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0001 REFLECTOR-REFLEX, FRONT, SIDEREFLECTOR-REFLEX, FRONT, SIDE
-
28012A28012-0002 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
5605456054-0642 MARK, IGNITION SWITCHMARK, IGNITION SWITCH
-
9200292002-1132 BOLT, 6X12BOLT, 6X12
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202792027-1045 COLLAR, L=9.6COLLAR, L=9.6
-
9207592075-1564 DAMPERDAMPER
-
9214592145-0091 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9215492154-0031 BOLT, SOCKET, 6X22BOLT, SOCKET, 6X22
-
9220092200-0212 WASHER, 6X20X1.6WASHER, 6X20X1.6
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
