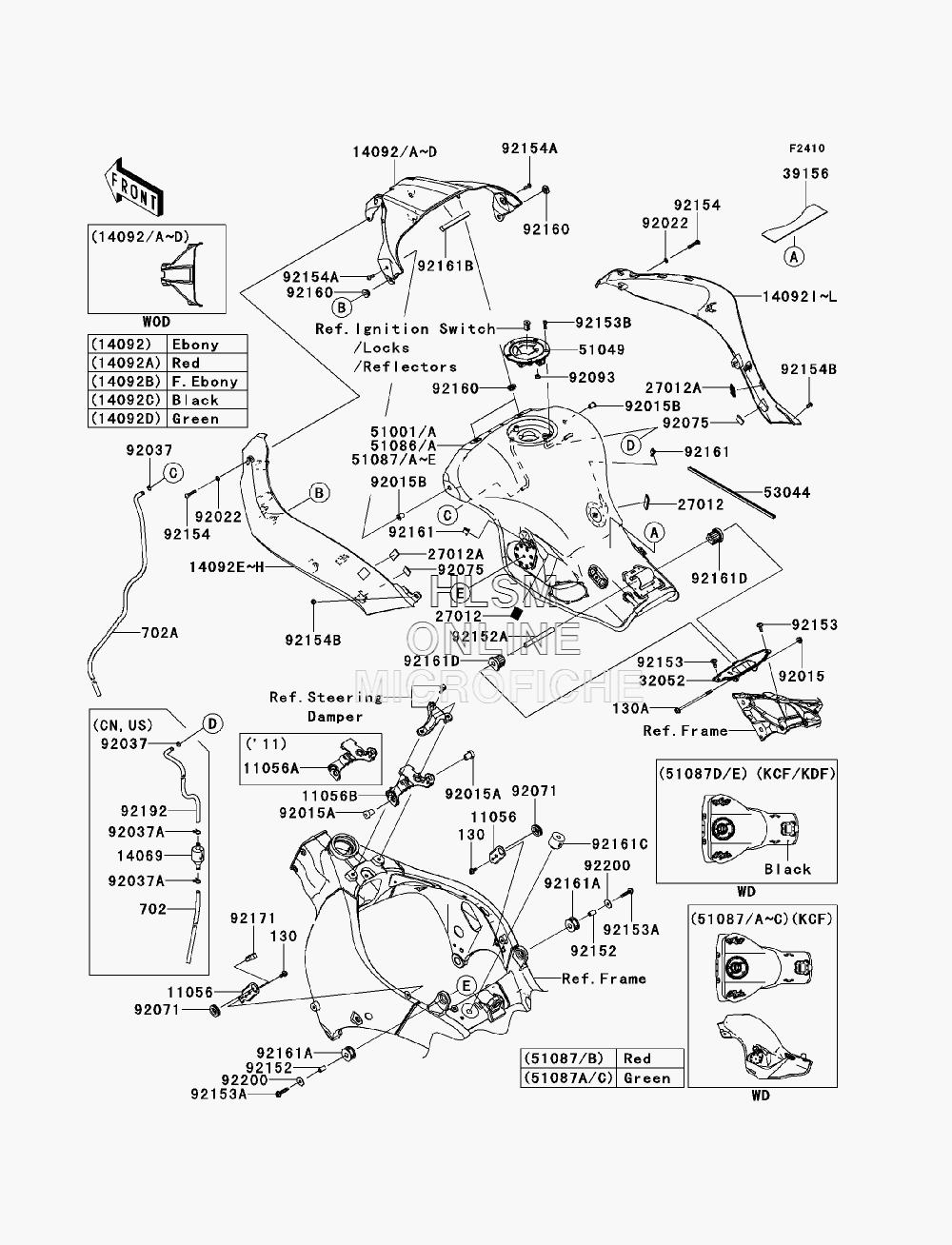

FUEL TANK для Kawasaki NINJA ZX-10R ABS (ZX1000KCF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-0242 BRACKET, TANK COVER, SIDE
    BRACKET, TANK COVER, SIDE
  • 11056B
    11056-1655 BRACKET, TANK COVER, FRONT
    BRACKET, TANK COVER, FRONT
  • 14069
    14069-1004 BREATHER, FUEL TANK (EXCEPT CALIF.)
    BREATHER, FUEL TANK (EXCEPT CALIF.)
  • 14092A
    14092-0786-234 COVER, TANK, CNT, (P.RED) (USA ONLY) (FOR 234)
    COVER, TANK, CNT, (P.RED) (USA ONLY) (FOR 234)
  • 14092C
    14092-0786-660 COVER, TANK, CNT, (M.S.BLACK) (FOR 33P)
    COVER, TANK, CNT, (M.S.BLACK) (FOR 33P)
  • 14092D
    14092-0786-777 COVER, TANK, CNT, (L.GREEN) (USA ONLY) (FOR 777)
    COVER, TANK, CNT, (L.GREEN) (USA ONLY) (FOR 777)
  • 14092G
    14092-0787-660 COVER, TANK, LEFT HAND, (M.S.BLACK)
    COVER, TANK, LEFT HAND, (M.S.BLACK)
  • 14092K
    14092-0788-660 COVER, TANK, RIGHT HAND, (M.S.BLACK)
    COVER, TANK, RIGHT HAND, (M.S.BLACK)
  • 27012
    27012-0170 HOOK
    HOOK
  • 27012A
    27012-0171 HOOK
    HOOK
  • 32052
    32052-0154 BRACKET-TANK
    BRACKET-TANK
  • 39156
    39156-0745 PAD, 40X180X1.0
    PAD, 40X180X1.0
  • 51049
    51049-0030 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51087
    51087-5221-234 TANK-COMP-FUEL, (P.RED) (EXCEPT CALIF.) (FOR 234)
    TANK-COMP-FUEL, (P.RED) (EXCEPT CALIF.) (FOR 234)
  • 51087A
    51087-5223-777 TANK-COMP-FUEL, (L.GREEN) (EXCEPT CALIF.) (FOR 777)
    TANK-COMP-FUEL, (L.GREEN) (EXCEPT CALIF.) (FOR 777)
  • 51087B
    51087-5224-234 TANK-COMP-FUEL, (P.RED) (CALIF. ONLY) (FOR 234)
    TANK-COMP-FUEL, (P.RED) (CALIF. ONLY) (FOR 234)
  • 51087C
    51087-5226-777 TANK-COMP-FUEL, (L.GREEN) (CALIF. ONLY) (FOR 777)
    TANK-COMP-FUEL, (L.GREEN) (CALIF. ONLY) (FOR 777)
  • 51087D
    51087-5336-660 TANK-COMP-FUEL, (M.S.BLACK) (EXCEPT CALIF.) (FOR 33P)
    TANK-COMP-FUEL, (M.S.BLACK) (EXCEPT CALIF.) (FOR 33P)
  • 51087E
    51087-5337-660 TANK-COMP-FUEL, (M.S.BLACK) (CALIF. ONLY) (FOR 33P)
    TANK-COMP-FUEL, (M.S.BLACK) (CALIF. ONLY) (FOR 33P)
  • 53044
    53044-1296 TRIM
    TRIM
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1692 NUT, RUBBER, 6MM
    NUT, RUBBER, 6MM
  • 92015B
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92037
    92037-010 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037
    92037-010 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92037A
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92071
    92071-1043 GROMMET
    GROMMET
  • 92075
    92075-1982 DAMPER, IGNITION
    DAMPER, IGNITION
  • 92093
    92093-1030 SEAL, FUEL TANK CAP
    SEAL, FUEL TANK CAP
  • 92152
    92152-0883 COLLAR, 6.8X10X18.5
    COLLAR, 6.8X10X18.5
  • 92152A
    92152-1182 COLLAR, 6.8X10X60
    COLLAR, 6.8X10X60
  • 92153
    92153-1526 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92153A
    92153-1580 BOLT, FLANGED, 6X28
    BOLT, FLANGED, 6X28
  • 92153B
    92153-1616 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154
    92154-0206 BOLT, SOCKET, 6X30
    BOLT, SOCKET, 6X30
  • 92154A
    92154-0209 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154B
    92154-0211 BOLT, SOCKET, 5X10
    BOLT, SOCKET, 5X10
  • 92160
    92160-1613 DAMPER
    DAMPER
  • 92161
    92161-0365 DAMPER
    DAMPER
  • 92161A
    92161-0869 DAMPER, 10X30X16
    DAMPER, 10X30X16
  • 92161B
    92161-0963 DAMPER, 10X90X10
    DAMPER, 10X90X10
  • 92161C
    92161-1116 DAMPER
    DAMPER
  • 92161D
    92161-1330 DAMPER, FUEL TANK, REAR
    DAMPER, FUEL TANK, REAR
  • 92171
    92171-0782 CLAMP
    CLAMP
  • 92192
    92192-0975 TUBE, 6X9X(770) (EXCEPT CALIF.)
    TUBE, 6X9X(770) (EXCEPT CALIF.)
  • 130
    130AA0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130A
    130BA0675 BOLT-FLANGED, 6X75
    BOLT-FLANGED, 6X75
  • 702
    702A06200 TUBE-RUBBER, 6X200 (EXCEPT CALIF.)
    TUBE-RUBBER, 6X200 (EXCEPT CALIF.)
  • 702A
    702A06750 TUBE-RUBBER, 6X9X750
    TUBE-RUBBER, 6X9X750
  • 92200
    92200-1087 WASHER, 6.5X22X1.6
    WASHER, 6.5X22X1.6
