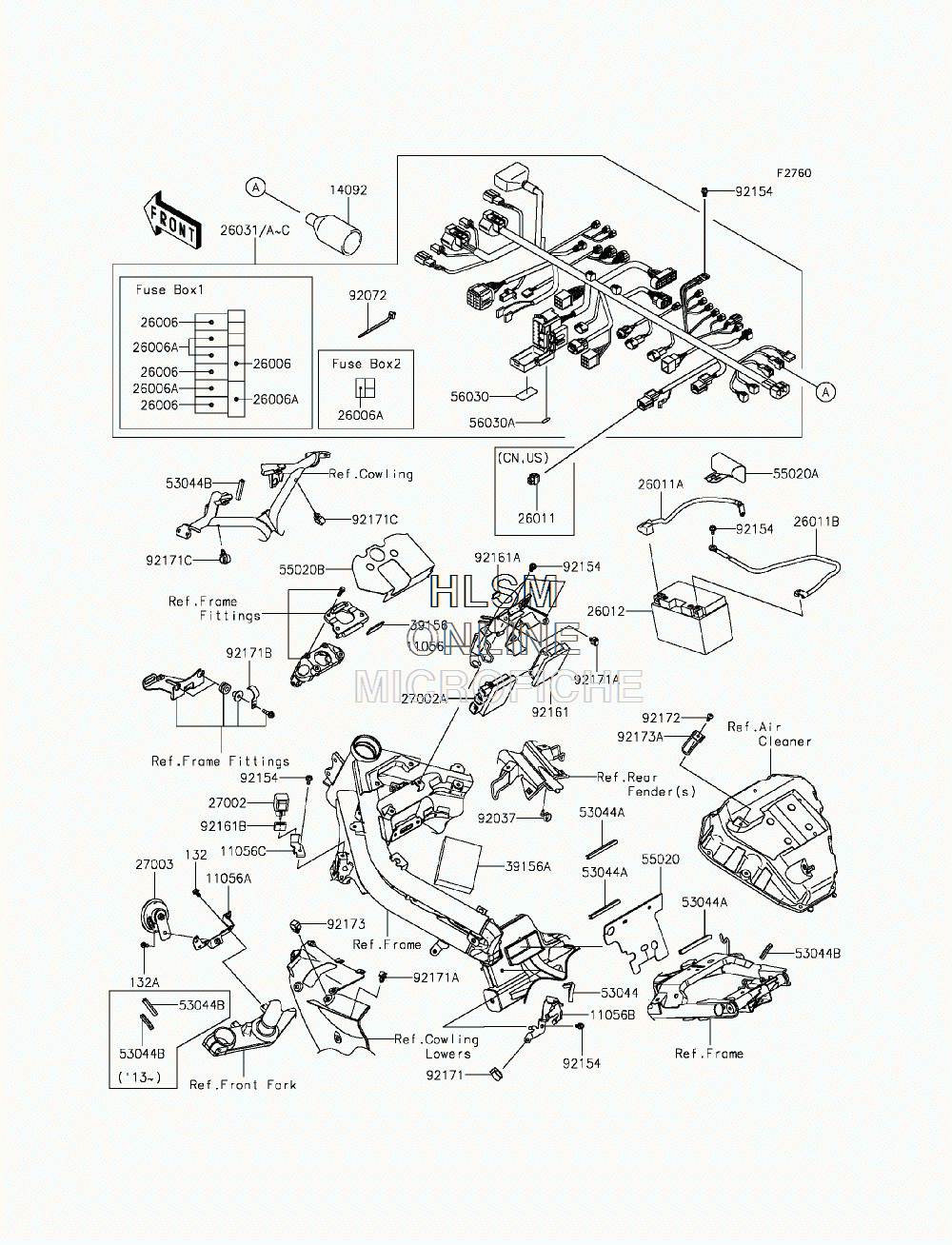

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 650R (EX650ECF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-0806 BRACKET, RELAY-ASSY
    BRACKET, RELAY-ASSY
  • 11056A
    11056-1821 BRACKET, HORN
    BRACKET, HORN
  • 11056B
    11056-1867 BRACKET, PIVOT, UPPER, LEFT HAND
    BRACKET, PIVOT, UPPER, LEFT HAND
  • 11056C
    11056-3791 BRACKET, SIGNAL RELAY
    BRACKET, SIGNAL RELAY
  • 14092
    14092-0902 COVER
    COVER
  • 26006
    26006-0001 FUSE, MINI BLADE, 15A, BLUE
    FUSE, MINI BLADE, 15A, BLUE
  • 26006A
    26006-1078 FUSE, MINI BLADE, 10A, RED
    FUSE, MINI BLADE, 10A, RED
  • 26011
    26011-0101 WIRE-LEAD, SENSOR CONNECTOR (EXCEPT CALIF.)
    WIRE-LEAD, SENSOR CONNECTOR (EXCEPT CALIF.)
  • 26011A
    26011-0709 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26011B
    26011-0711 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26012
    26012-0556 BATTERY, YT12A-BS, 12V
    BATTERY, YT12A-BS, 12V
  • 26031
    26031-1364 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 26031A
    26031-1366 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 27002
    27002-0006 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27002A
    27002-0007 RELAY-ASSY
    RELAY-ASSY
  • 27003
    27003-0065 HORN
    HORN
  • 39156
    39156-0831 PAD, 20X40X3
    PAD, 20X40X3
  • 39156A
    39156-0872 PAD, 100X80X30
    PAD, 100X80X30
  • 53044
    53044-0018 TRIM
    TRIM
  • 53044A
    53044-0556 TRIM, L=85
    TRIM, L=85
  • 53044B
    53044-1324 TRIM, L=48
    TRIM, L=48
  • 55020
    55020-0760 GUARD, AIR CLEANER
    GUARD, AIR CLEANER
  • 55020A
    55020-0822 GUARD, MG. SWITCH
    GUARD, MG. SWITCH
  • 55020B
    55020-0826 GUARD, FUSE BOX
    GUARD, FUSE BOX
  • 56030
    56030-0705 LABEL, FUSE BOX1
    LABEL, FUSE BOX1
  • 56030A
    56030-0706 LABEL, FUSE BOX2
    LABEL, FUSE BOX2
  • 92037
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92072
    92072-1414 BAND
    BAND
  • 92154
    92154-1050 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 92161
    92161-0203 DAMPER, RELAY BOX
    DAMPER, RELAY BOX
  • 92161A
    92161-1431 DAMPER, 20X20, T1.0
    DAMPER, 20X20, T1.0
  • 132
    132BA0610 BOLT-FLANGED-SMALL, 6X10
    BOLT-FLANGED-SMALL, 6X10
  • 132A
    132BB0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 92161B
    92161-1443 DAMPER, 15X25X8.5
    DAMPER, 15X25X8.5
  • 92171
    92171-0316 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92171A
    92171-0640 CLAMP
    CLAMP
  • 92171B
    92171-0652 CLAMP, L=60
    CLAMP, L=60
  • 92171C
    92171-1415 CLAMP, 13MM DIA.
    CLAMP, 13MM DIA.
  • 92172
    92172-0742 SCREW, TAPPING, 5X16
    SCREW, TAPPING, 5X16
  • 92173
    92173-0736 CLAMP, 12MM DIA.
    CLAMP, 12MM DIA.
  • 92173A
    92173-0889 CLAMP, AIR CLEANER
    CLAMP, AIR CLEANER
