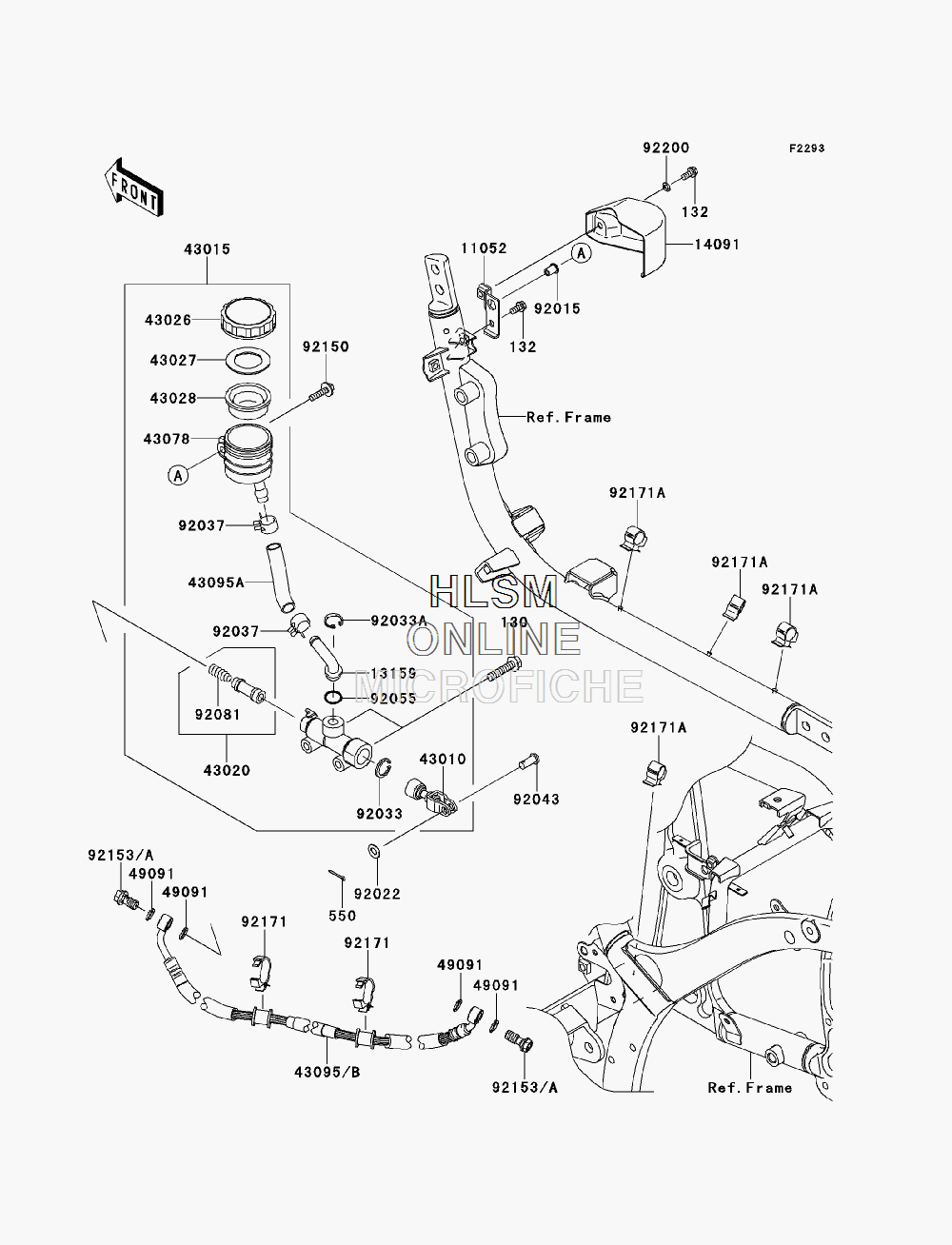

BRAKE - MASTER CYLINDER - REAR для Kawasaki VULCAN 900 CLASSIC (VN900BBFA) - 2011 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0835 BOLT-FLANGED, 8X35
    BOLT-FLANGED, 8X35
  • 132
    132BB0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 550
    550AA2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 11052
    11052-1305 BRACKET, RESERVOIR TANK
    BRACKET, RESERVOIR TANK
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 14091
    14091-0536-18R COVER, RESERVOIR TANK, (BLACK)
    COVER, RESERVOIR TANK, (BLACK)
  • 43010
    43010-1062 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0081 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1057 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43078
    43078-1178 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0290 HOSE-BRAKE, REAR
    HOSE-BRAKE, REAR
  • 43095A
    43095-0306 HOSE-BRAKE, REAR MASTER CYLINDER
    HOSE-BRAKE, REAR MASTER CYLINDER
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92015
    92015-1700 NUT
    NUT
  • 92022
    92022-1582 WASHER, 8.5X16X1.2
    WASHER, 8.5X16X1.2
  • 92033
    92033-0079 RING-SNAP, 20.9X24.6X1.2
    RING-SNAP, 20.9X24.6X1.2
  • 92033A
    92033-1186 RING-SNAP, 20.5MM
    RING-SNAP, 20.5MM
  • 92037
    92037-1547 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92043
    92043-1013 PIN, 8X16
    PIN, 8X16
  • 92055
    92055-0741 RING-O, 14.8X2.4
    RING-O, 14.8X2.4
  • 92081
    92081-1737 SPRING, MASTER CYLINDER
    SPRING, MASTER CYLINDER
  • 92150
    92150-1829 BOLT, 6X25
    BOLT, 6X25
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92171
    92171-0782 CLAMP
    CLAMP
  • 92171A
    92171-1424 CLAMP, DIA=15
    CLAMP, DIA=15
  • 92200
    92200-1465 WASHER, 6.2X10X1
    WASHER, 6.2X10X1
