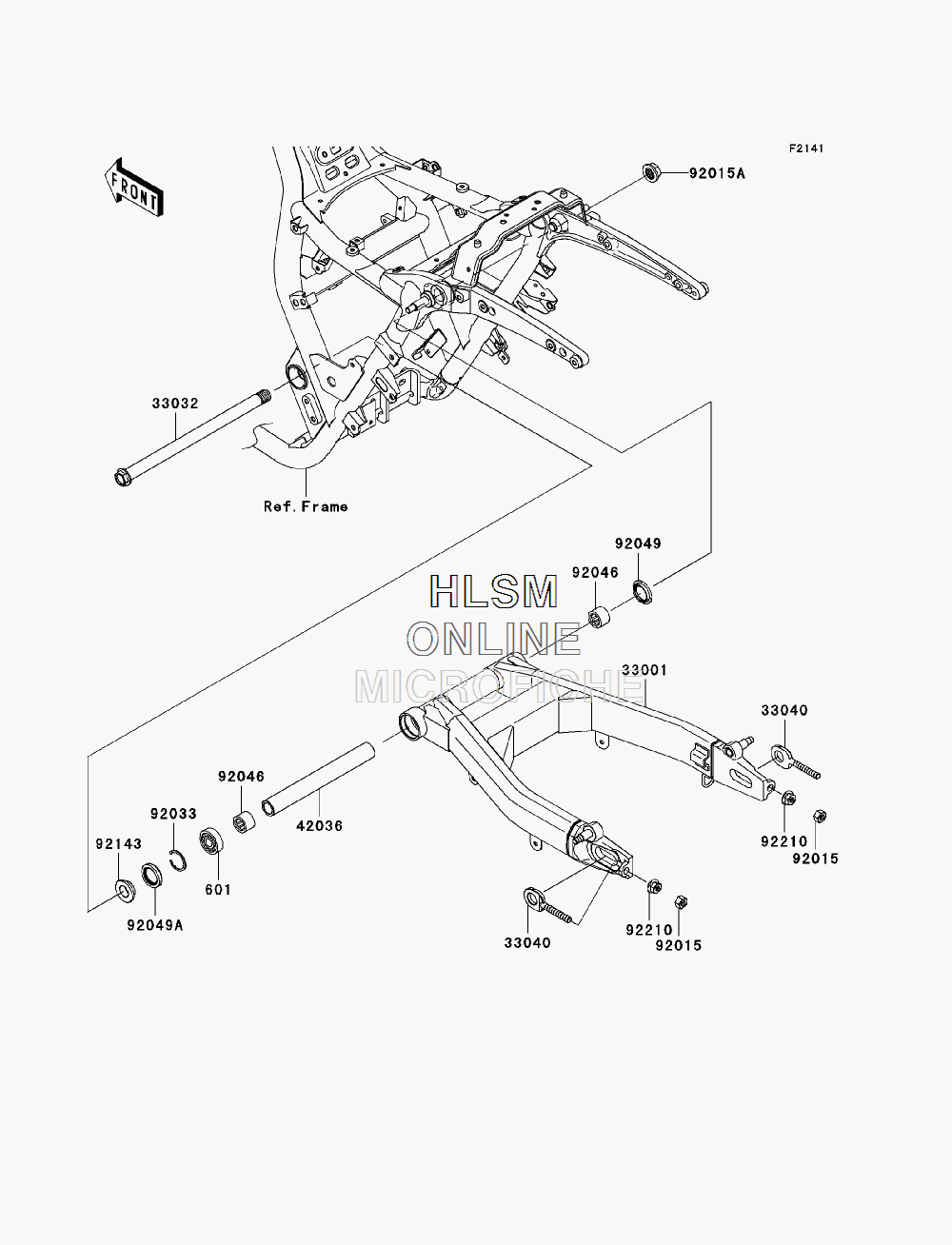

SUSPENSION - SWINGARM для Kawasaki VULCAN 1700 VOYAGER (VN1700ABF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 601
    601A6004 BEARING-BALL,#6004
    BEARING-BALL,#6004
  • 33001
    33001-0205-18R ARM-COMP-SWING,F.S.BLACK
    ARM-COMP-SWING,F.S.BLACK
  • 33032
    33032-0031 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0005 ADJUSTER-CHAIN
    ADJUSTER-CHAIN
  • 42036
    42036-0059 SLEEVE,SWING ARM,L=235.5
    SLEEVE,SWING ARM,L=235.5
  • 92015
    92015-1494 NUT,LOCK,10MM
    NUT,LOCK,10MM
  • 92015A
    92015-1724 NUT,FLANGED,20MM
    NUT,FLANGED,20MM
  • 92033
    92033-1041 RING-SNAP,42MM
    RING-SNAP,42MM
  • 92046
    92046-1202 BEARING-NEEDLE,BM2824
    BEARING-NEEDLE,BM2824
  • 92049
    92049-1181 SEAL-OIL
    SEAL-OIL
  • 92049A
    92049-1185 SEAL-OIL,TC28426.5
    SEAL-OIL,TC28426.5
  • 92143
    92143-1727 COLLAR,SWING ARM, RIGHT HAND,L=12.5
    COLLAR,SWING ARM, RIGHT HAND,L=12.5
  • 92210
    92210-0349 NUT,FLANGED,10MM
    NUT,FLANGED,10MM
