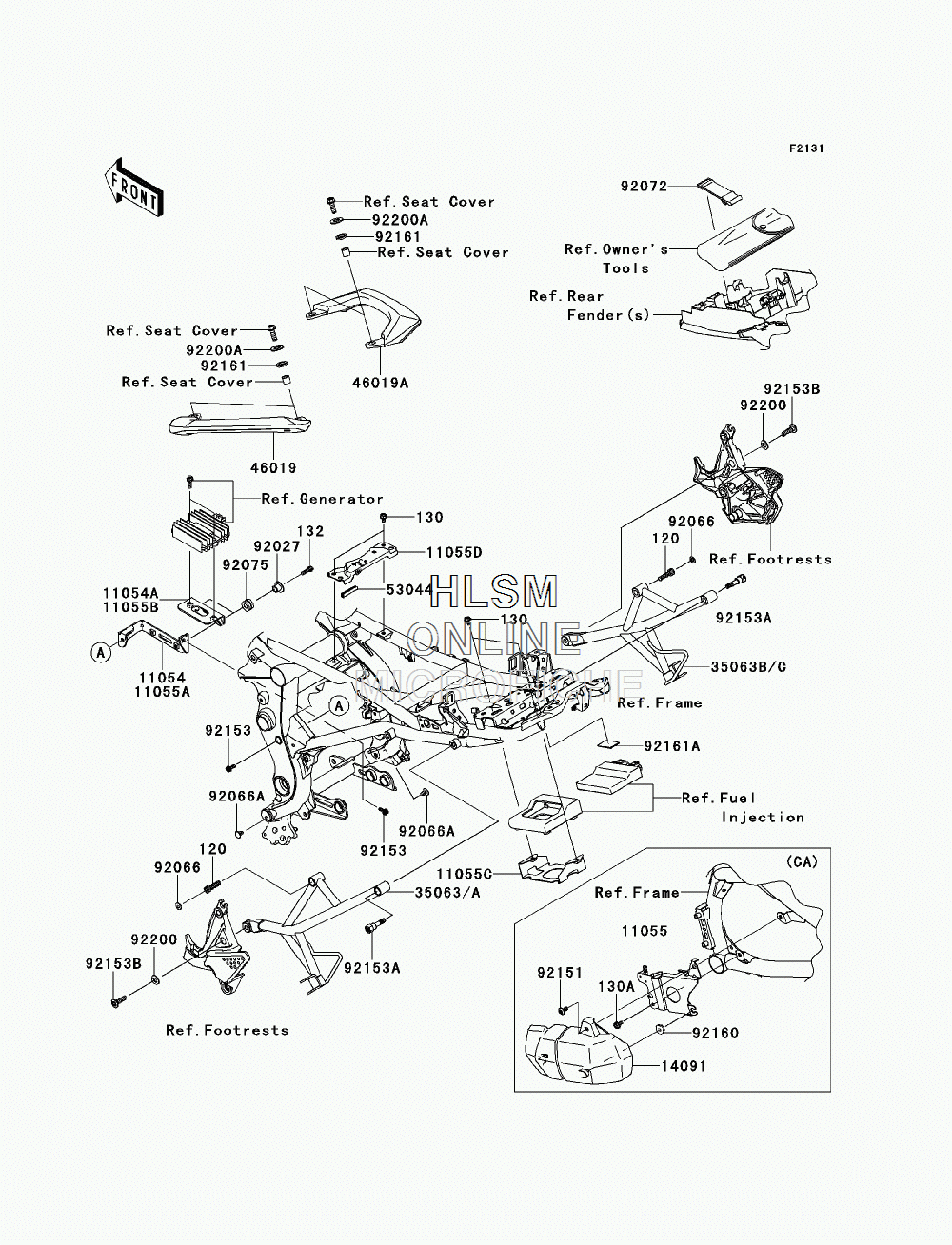

FRAME FITTINGS для Kawasaki VERSYS (KLE650CBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 120
    120CA0830 BOLT-SOCKET, 8X30
    BOLT-SOCKET, 8X30
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130BB0612 BOLT-FLANGED, 6X12 (CALIF. ONLY)
    BOLT-FLANGED, 6X12 (CALIF. ONLY)
  • 132
    132BB0622 BOLT-FLANGED-SMALL, 6X22
    BOLT-FLANGED-SMALL, 6X22
  • 11054
    11054-1283 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 11054A
    11054-1284 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 11055
    11055-0586 BRACKET, CANISTER (CALIF. ONLY)
    BRACKET, CANISTER (CALIF. ONLY)
  • 11055C
    11055-1872 BRACKET, ECU
    BRACKET, ECU
  • 11055D
    11055-1929 BRACKET, FUEL TANK
    BRACKET, FUEL TANK
  • 14091
    14091-1586 COVER, CANISTER (CALIF. ONLY)
    COVER, CANISTER (CALIF. ONLY)
  • 35063A
    35063-0728-26M STAY, STEP, REAR, LEFT HAND, (F.M.GRAY)
    STAY, STEP, REAR, LEFT HAND, (F.M.GRAY)
  • 35063C
    35063-0729-26M STAY, STEP, REAR, RIGHT HAND, (F.M.GRAY)
    STAY, STEP, REAR, RIGHT HAND, (F.M.GRAY)
  • 46019
    46019-0030 GRIP-ASSY, LEFT HAND
    GRIP-ASSY, LEFT HAND
  • 46019A
    46019-0031 GRIP-ASSY, RIGHT HAND
    GRIP-ASSY, RIGHT HAND
  • 53044
    53044-1174 TRIM, L=40
    TRIM, L=40
  • 92027
    92027-1450 COLLAR, L=13.1, (BLACK)
    COLLAR, L=13.1, (BLACK)
  • 92066
    92066-0735 PLUG
    PLUG
  • 92066A
    92066-1103 PLUG
    PLUG
  • 92072
    92072-1176 BAND, TOOL
    BAND, TOOL
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92151
    92151-1654 BOLT, SOCKET, 6X14 (CALIF. ONLY)
    BOLT, SOCKET, 6X14 (CALIF. ONLY)
  • 92153
    92153-1517 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92153A
    92153-1532 BOLT
    BOLT
  • 92153B
    92153-1630 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92160
    92160-1613 DAMPER (CALIF. ONLY)
    DAMPER (CALIF. ONLY)
  • 92161
    92161-0867 DAMPER, 14X22X3
    DAMPER, 14X22X3
  • 92161A
    92161-1627 DAMPER, 25X40X2
    DAMPER, 25X40X2
  • 92200
    92200-0328 WASHER, 10.2X20X1.6
    WASHER, 10.2X20X1.6
  • 92200A
    92200-0568 WASHER, 8.2X26X3.2
    WASHER, 8.2X26X3.2
