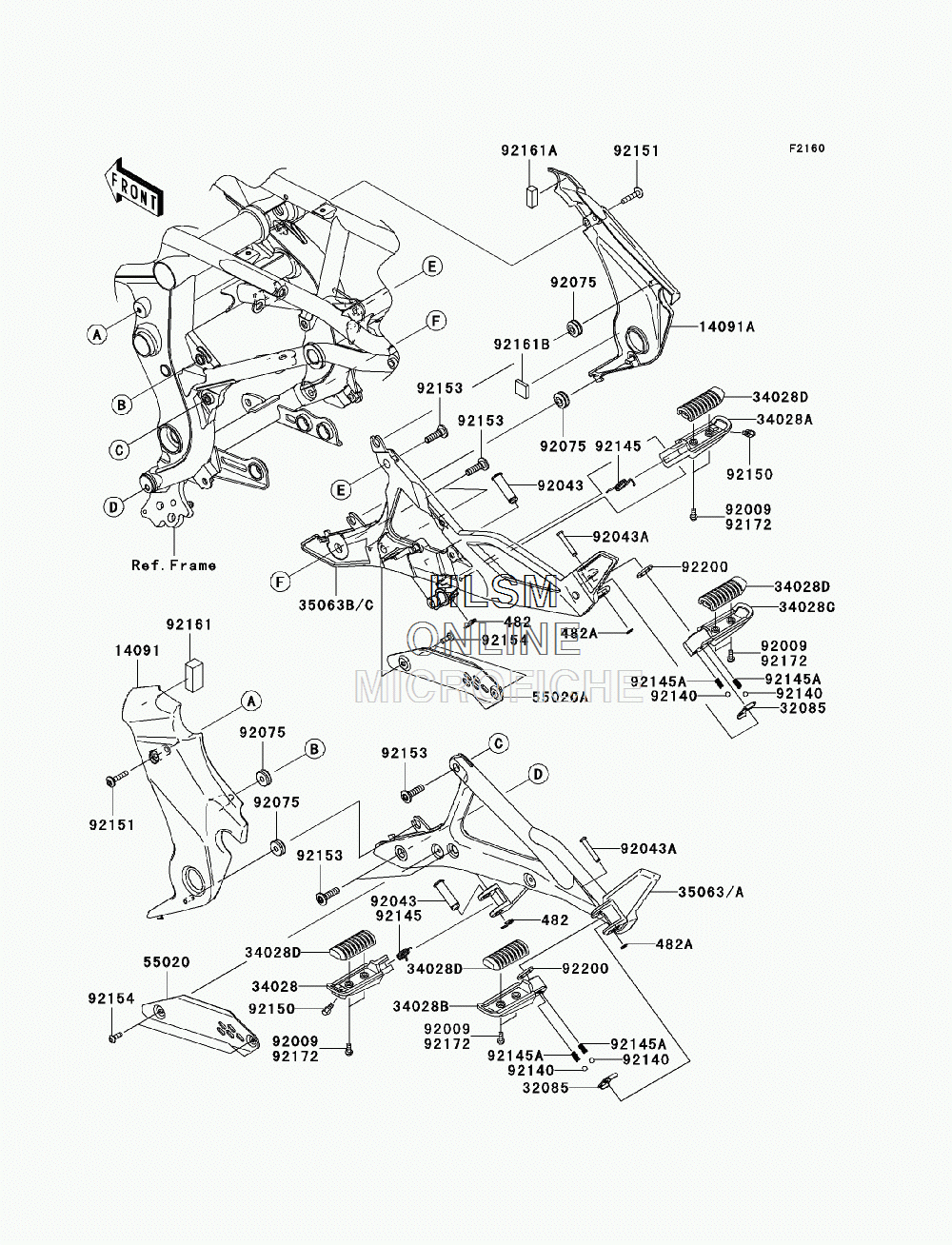

FOOTRESTS для Kawasaki ER-6N (EUROPEAN) (ER650CBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 482
    482EA0100 CIRCLIP-TYPE-E, 10MM
    CIRCLIP-TYPE-E, 10MM
  • 482A
    482EA5000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 14091
    14091-1584 COVER, PIVOT (LEFT)
    COVER, PIVOT (LEFT)
  • 14091A
    14091-1585 COVER, PIVOT (RIGHT)
    COVER, PIVOT (RIGHT)
  • 32085
    32085-0047 STOPPER, REAR STEP
    STOPPER, REAR STEP
  • 34028
    34028-0127 STEP, FRONT (LEFT)
    STEP, FRONT (LEFT)
  • 34028A
    34028-0128 STEP, FRONT (RIGHT)
    STEP, FRONT (RIGHT)
  • 34028B
    34028-0129 STEP, REAR (LEFT)
    STEP, REAR (LEFT)
  • 34028C
    34028-0130 STEP, REAR (RIGHT)
    STEP, REAR (RIGHT)
  • 34028D
    34028-1430 STEP, RUBBER
    STEP, RUBBER
  • 35063A
    35063-0522-458 STAY, STEP (LEFT) (P.SILVER) (FOR 15Z;G3;35A)
    STAY, STEP (LEFT) (P.SILVER) (FOR 15Z;G3;35A)
  • 35063C
    35063-0523-458 STAY, STEP (RIGHT) (P.SILVER) (FOR 15Z;G3;35A)
    STAY, STEP (RIGHT) (P.SILVER) (FOR 15Z;G3;35A)
  • 55020
    55020-0461 GUARD, STEP (LEFT)
    GUARD, STEP (LEFT)
  • 55020A
    55020-0462 GUARD, STEP (RIGHT)
    GUARD, STEP (RIGHT)
  • 92043
    92043-0026 PIN, 12X37.5
    PIN, 12X37.5
  • 92043A
    92043-1595 PIN, 6X40
    PIN, 6X40
  • 92075
    92075-1067 DAMPER
    DAMPER
  • 92140
    92140-0008 BALL, 6.35MM
    BALL, 6.35MM
  • 92145
    92145-0723 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92145A
    92145-1319 SPRING
    SPRING
  • 92150
    92150-1114 BOLT, BANK SENSOR
    BOLT, BANK SENSOR
  • 92151
    92151-1605 BOLT, SOCKET, 6X30
    BOLT, SOCKET, 6X30
  • 92153
    92153-1630 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92154
    92154-0182 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92161
    92161-0670 DAMPER, 19X15X40
    DAMPER, 19X15X40
  • 92161A
    92161-0671 DAMPER, 10X10X28
    DAMPER, 10X10X28
  • 92161B
    92161-0731 DAMPER (UPPER) CNT COWLING
    DAMPER (UPPER) CNT COWLING
  • 92172
    92172-0473 SCREW-PAN-WP-CROS, 5X14
    SCREW-PAN-WP-CROS, 5X14
  • 92200
    92200-0043 WASHER, 16X26X2.3
    WASHER, 16X26X2.3
