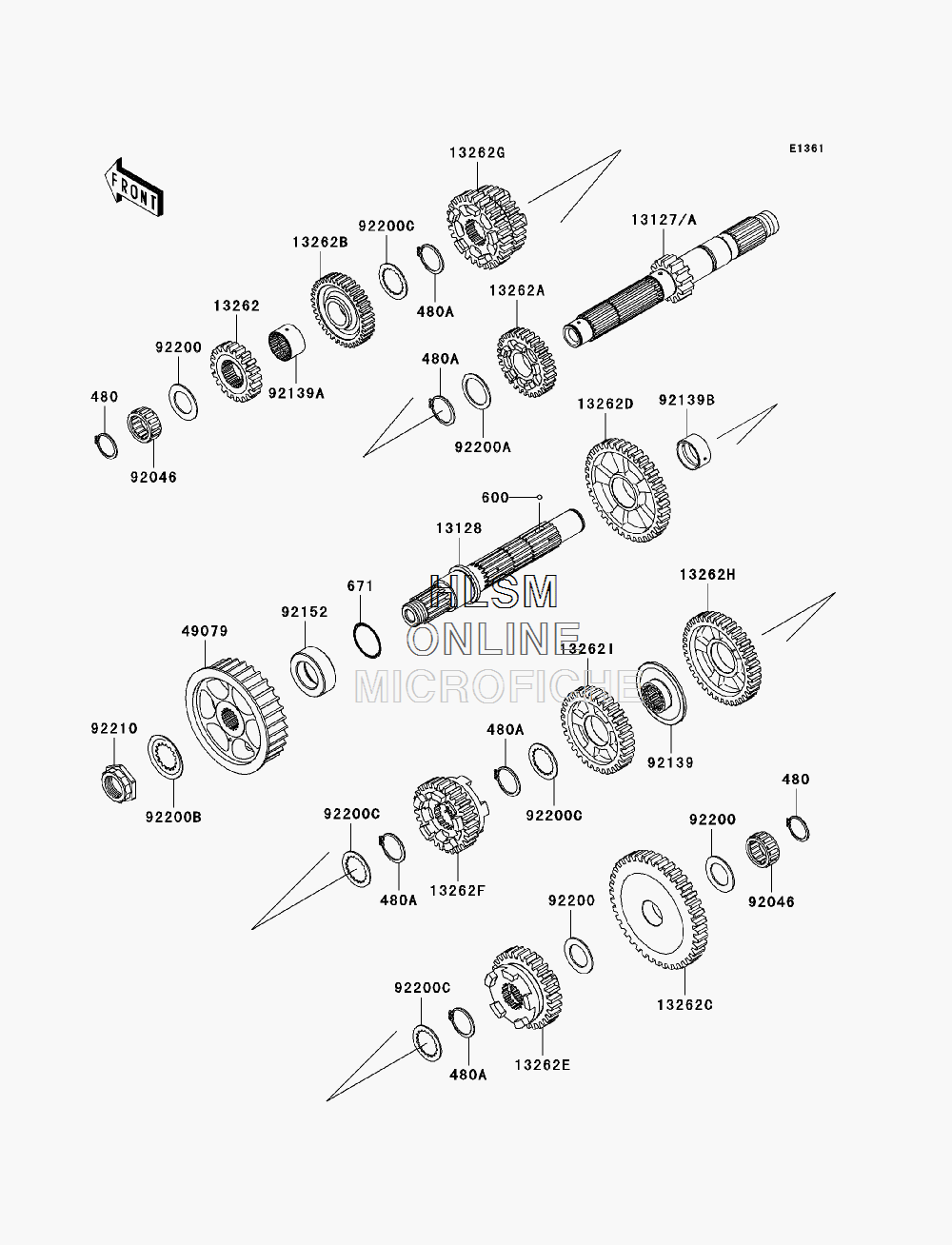

TRANSMISSION для Kawasaki VULCAN 1700 CLASSIC LT (VN1700GAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2500 CIRCLIP-TYPE-C,25MM
    CIRCLIP-TYPE-C,25MM
  • 480A
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL-STEEL,5/32"
    BALL-STEEL,5/32"
  • 671
    671D2535 O RING
    O RING
  • 13127
    13127-0059 SHAFT-TRANSMISSION INPUT
    SHAFT-TRANSMISSION INPUT
  • 13128
    13128-0057 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13262
    13262-0603 GEAR,INPUT 2ND,20T
    GEAR,INPUT 2ND,20T
  • 13262A
    13262-0605 GEAR,INPUT 5TH,30T
    GEAR,INPUT 5TH,30T
  • 13262B
    13262-0606 GEAR,INPUT 6TH,36T
    GEAR,INPUT 6TH,36T
  • 13262C
    13262-0607 GEAR,OUTPUT LOW,40T
    GEAR,OUTPUT LOW,40T
  • 13262D
    13262-0608 GEAR,OUTPUT 2ND,38T
    GEAR,OUTPUT 2ND,38T
  • 13262E
    13262-0611 GEAR,OUTPUT 5TH,29T
    GEAR,OUTPUT 5TH,29T
  • 13262F
    13262-0612 GEAR,OUTPUT 6TH,29T
    GEAR,OUTPUT 6TH,29T
  • 13262G
    13262-0739 GEAR,INPUT 3RD & 4TH,27T & 28T
    GEAR,INPUT 3RD & 4TH,27T & 28T
  • 13262H
    13262-0740 GEAR,OUTPUT 3RD,38T
    GEAR,OUTPUT 3RD,38T
  • 13262I
    13262-0741 GEAR,OUTPUT 4TH,32T
    GEAR,OUTPUT 4TH,32T
  • 49079
    49079-0020 PULLEY-BELT
    PULLEY-BELT
  • 92046
    92046-0007 BEARING-NEEDLE,KT 253515E02 C3
    BEARING-NEEDLE,KT 253515E02 C3
  • 92139
    92139-0007 BUSHING,OUTPUT 3RD-4TH GEAR
    BUSHING,OUTPUT 3RD-4TH GEAR
  • 92139A
    92139-0236 BUSHING,INPUT TOP GEAR
    BUSHING,INPUT TOP GEAR
  • 92139B
    92139-0237 BUSHING,OUTPUT 2ND GEAR
    BUSHING,OUTPUT 2ND GEAR
  • 92152
    92152-0657 COLLAR,30X50X17.5
    COLLAR,30X50X17.5
  • 92200
    92200-0427 WASHER,25.3X40X1.6
    WASHER,25.3X40X1.6
  • 92200A
    92200-0428 WASHER,30.3X40X1.5
    WASHER,30.3X40X1.5
  • 92200B
    92200-0505 WASHER,31X50X1
    WASHER,31X50X1
  • 92200C
    92200-1381 WASHER,30.3X40X1.5
    WASHER,30.3X40X1.5
  • 92210
    92210-0554 NUT,25MM
    NUT,25MM
