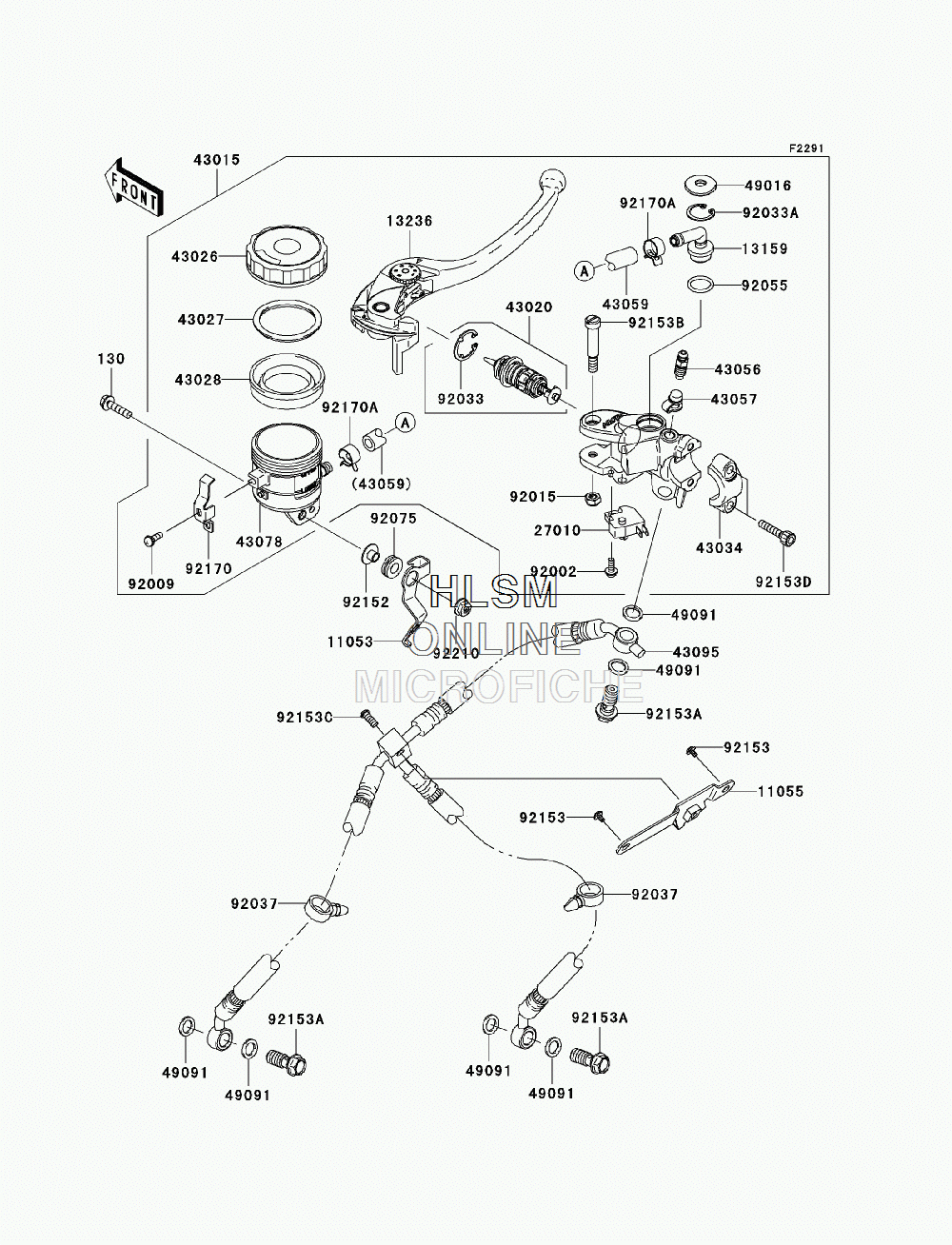

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA ZX-10R (ZX1000FAFA) - 2010 года выпуска`
-
№АртикулНазвание
-
130130BB0520 BOLT-FLANGED,5X20BOLT-FLANGED,5X20
-
1105311053-1545 BRACKET, RESERVOIR TANK, FRONTBRACKET, RESERVOIR TANK, FRONT
-
1105511055-0319 BRACKET,BRAKE HOSEBRACKET,BRAKE HOSE
-
1315913159-1061 CONNECTORCONNECTOR
-
1323613236-0103 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
2701027010-0025 SWITCH,BRAKESWITCH,BRAKE
-
4301543015-0138 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-0010 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1051 CAP-BRAKECAP-BRAKE
-
4302743027-1051 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1057 DIAPHRAGM,MASTER CYLINDERDIAPHRAGM,MASTER CYLINDER
-
4303443034-0056 HOLDER-BRAKE,MASTER CYLINDERHOLDER-BRAKE,MASTER CYLINDER
-
4305643056-1056 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4305943059-1696 HOSE-BRAKE, FRONT MASTER CYLINDERHOSE-BRAKE, FRONT MASTER CYLINDER
-
4307843078-1099 RESERVOIRRESERVOIR
-
4309543095-0348 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4901649016-1147 COVER-SEALCOVER-SEAL
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200292002-1323 BOLT,SCREW,4X12BOLT,SCREW,4X12
-
9200992009-1570 SCREWSCREW
-
9201592015-1233 NUT,FLANGED,6MM,BLACKNUT,FLANGED,6MM,BLACK
-
9203392033-0034 RING-SNAPRING-SNAP
-
92033A92033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9203792037-1827 CLAMP,HOSECLAMP,HOSE
-
9205592055-1251 RING-O,MASTER CYLINDERRING-O,MASTER CYLINDER
-
9207592075-161 DAMPERDAMPER
-
9215292152-0017 COLLARCOLLAR
-
9215392153-0410 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
92153A92153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
92153B92153-0868 BOLT, LEVERBOLT, LEVER
-
92153C92153-1267 BOLT,SOCKET,6X23BOLT,SOCKET,6X23
-
92153D92153-1518 BOLT,SOCKET,6X22BOLT,SOCKET,6X22
-
9217092170-1090 CLAMPCLAMP
-
92170A92170-1091 CLAMP,HOSECLAMP,HOSE
-
9221092210-0007 NUT,FLANGED,5MMNUT,FLANGED,5MM
