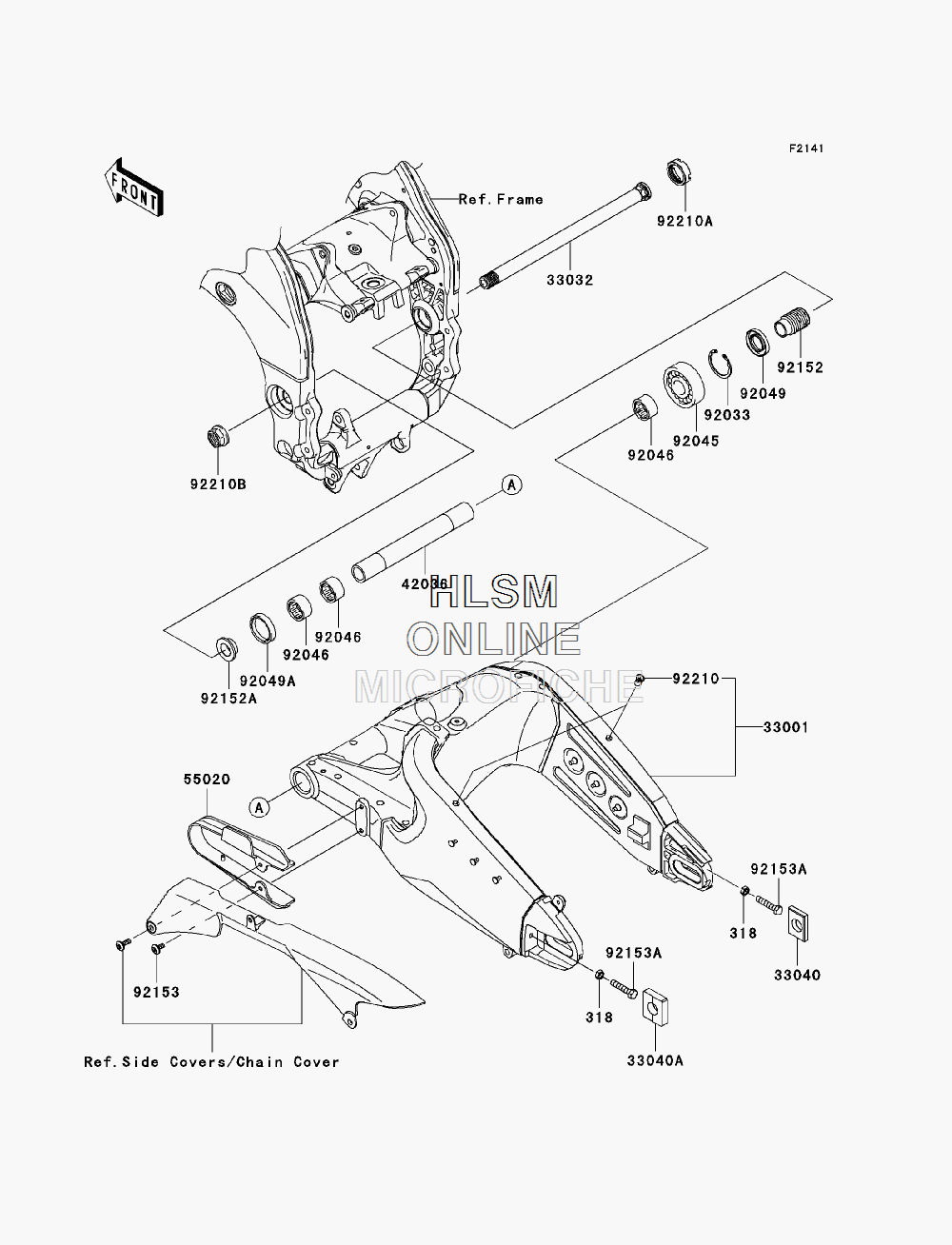

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-10R (ZX1000FAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 318
    318BB0800 NUT-HEX-SMALL
    NUT-HEX-SMALL
  • 33001
    33001-0214-18R ARM-COMP-SWING,F.S.BLACK
    ARM-COMP-SWING,F.S.BLACK
  • 33032
    33032-0013 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-0016 ADJUSTER-CHAIN, RIGHT HAND
    ADJUSTER-CHAIN, RIGHT HAND
  • 33040A
    33040-1109 ADJUSTER-CHAIN, LEFT HAND
    ADJUSTER-CHAIN, LEFT HAND
  • 42036
    42036-1341 SLEEVE,SWING ARM PIVOT,L=226
    SLEEVE,SWING ARM PIVOT,L=226
  • 55020
    55020-0384 GUARD,CHAIN
    GUARD,CHAIN
  • 92033
    92033-1041 RING-SNAP,42MM
    RING-SNAP,42MM
  • 92045
    92045-0017 BEARING-BALL,6004UL11
    BEARING-BALL,6004UL11
  • 92046
    92046-0008 BEARING-NEEDLE,7E-HVS 28X34X17
    BEARING-NEEDLE,7E-HVS 28X34X17
  • 92049
    92049-1314 SEAL-OIL,MHSA25 42 6
    SEAL-OIL,MHSA25 42 6
  • 92049A
    92049-1352 SEAL-OIL,MHSA25X34X7
    SEAL-OIL,MHSA25X34X7
  • 92152
    92152-0154 COLLAR,SWING ARM,L=47
    COLLAR,SWING ARM,L=47
  • 92152A
    92152-1234 COLLAR,SWING ARM,L=12.5
    COLLAR,SWING ARM,L=12.5
  • 92153
    92153-0422 BOLT,SOCKET,6X14
    BOLT,SOCKET,6X14
  • 92153A
    92153-0736 BOLT,8X40
    BOLT,8X40
  • 92210
    92210-0099 NUT,6MM
    NUT,6MM
  • 92210A
    92210-0134 NUT,30MM
    NUT,30MM
  • 92210B
    92210-0320 NUT,FLANGED,20MM
    NUT,FLANGED,20MM
