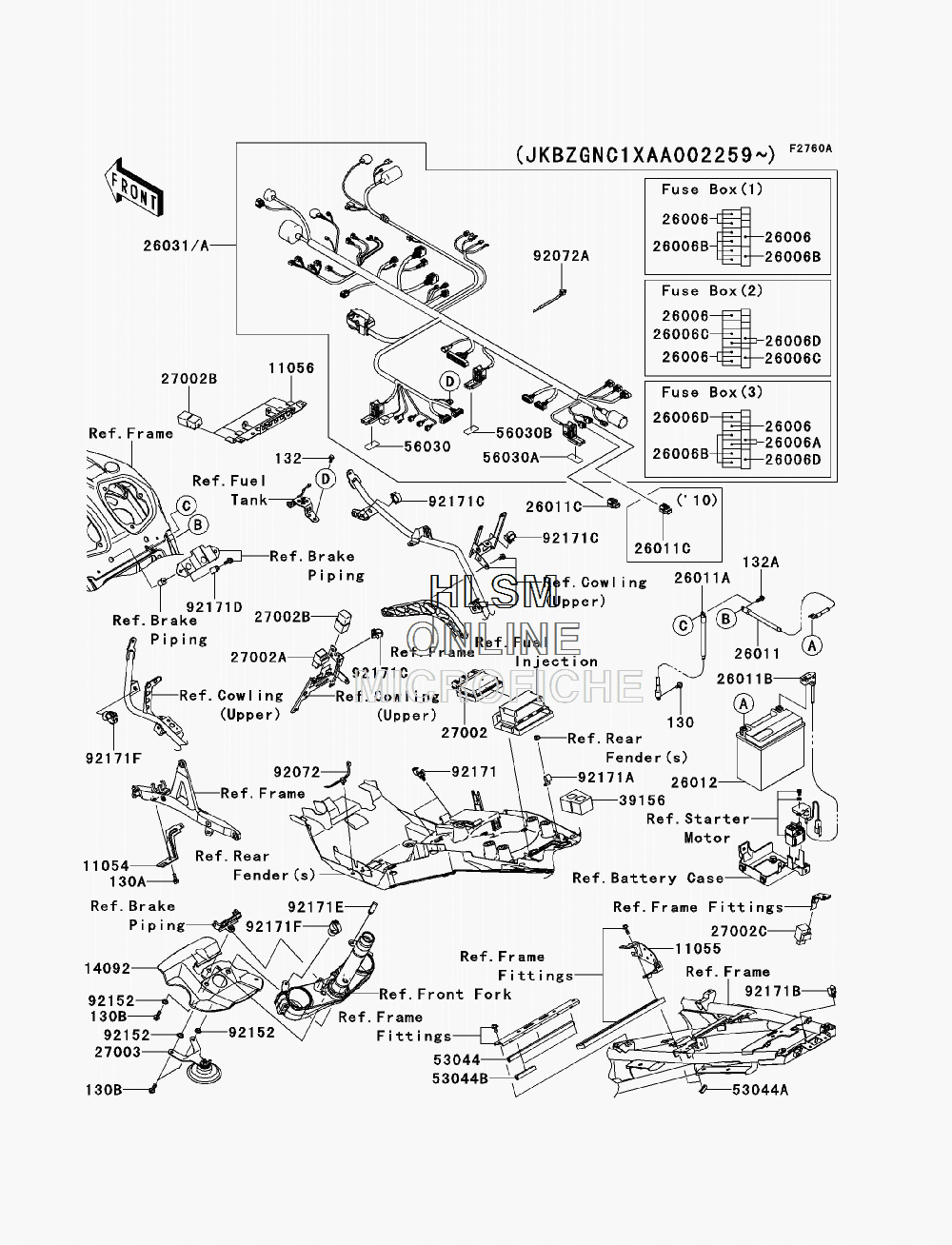

CHASSIS ELECTRICAL EQUIPMENT (AA002259 AND ABOVE) для Kawasaki CONCOURS 14 ABS (ZG1400CAF) - 2010 года выпуска`
-
№АртикулНазвание
-
1105411054-1131 BRACKET, SUB FRAME, FRONTBRACKET, SUB FRAME, FRONT
-
1105511055-1824 BRACKET, COUPLERBRACKET, COUPLER
-
1105611056-0152 BRACKET, RELAYBRACKET, RELAY
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
1409214092-0021 COVER, RADIATORCOVER, RADIATOR
-
2600626006-0001 FUSE, MINI BLADE, 15A, (BLUE)FUSE, MINI BLADE, 15A, (BLUE)
-
26006A26006-1077 FUSE, MINI BLADE, 5A, (TAN)FUSE, MINI BLADE, 5A, (TAN)
-
26006B26006-1078 FUSE, MINI BLADE, 10A, (RED)FUSE, MINI BLADE, 10A, (RED)
-
26006C26006-1079 FUSE, MINI BLADE, 20A, (YELLOW)FUSE, MINI BLADE, 20A, (YELLOW)
-
26006D26006-1080 FUSE, MINI BLADE, 30A, (GREEN)FUSE, MINI BLADE, 30A, (GREEN)
-
2601126011-0087 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011A26011-0255 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011B26011-0261 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011C26011-0275 WIRE-LEADWIRE-LEAD
-
2601226012-1409 BATTERY, FTZ14-BS, 12V 14AHBATTERY, FTZ14-BS, 12V 14AH
-
2603126031-0987 HARNESS, MAINHARNESS, MAIN
-
2700227002-0007 RELAY-ASSYRELAY-ASSY
-
27002A27002-0012 RELAY-ASSYRELAY-ASSY
-
27002B27002-1086 RELAY-ASSYRELAY-ASSY
-
27002C27002-1090 RELAY-ASSY, TURN SIGNALRELAY-ASSY, TURN SIGNAL
-
2700327003-0069 HORNHORN
-
3915639156-0597 PADPAD
-
5304453044-0022 TRIM, L=220TRIM, L=220
-
53044A53044-0031 TRIM, L=22TRIM, L=22
-
53044B53044-1249 TRIM, L=60TRIM, L=60
-
5603056030-0110 LABEL, FUSE BOX1LABEL, FUSE BOX1
-
56030A56030-0312 LABEL, FUSE BOX2LABEL, FUSE BOX2
-
56030B56030-0363 LABEL, FUSE BOX3LABEL, FUSE BOX3
-
9207292072-0066 BANDBAND
-
92072A92072-1414 BANDBAND
-
9215292152-0445 COLLARCOLLAR
-
9217192171-0068 CLAMP, CLIP, DIA=20CLAMP, CLIP, DIA=20
-
92171A92171-0255 CLAMP, HARNESSCLAMP, HARNESS
-
92171B92171-0290 CLAMPCLAMP
-
92171C92171-0782 CLAMPCLAMP
-
92171D92171-0813 CLAMPCLAMP
-
92171E92171-0864 CLAMPCLAMP
-
92171F92171-1706 CLAMPCLAMP
